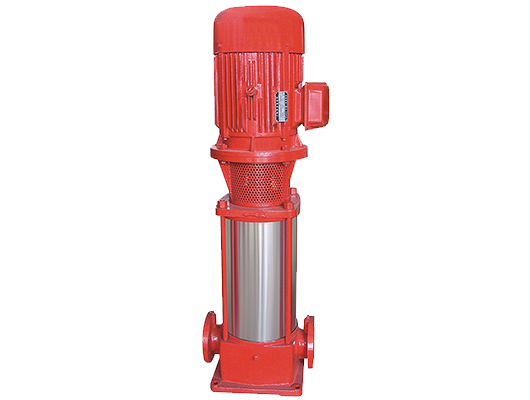

XBD-GDL vertical multistage fire pump

XBD-GDL vertical multistage fire pump

Caliber:
25~200mm
Flow:
1~50L/s
Head:
0.2~2.6Mpa
Matched power:
1.1~132kw
Rotate speed:
2900r/min
Working pressure:
≤2.5mpa
Share:
Product Overview
Product Structure
Application
Technical Data
Inquiry
Product Overview

XBD-GDL multistage fire pump is a kind of new type fire products researched and developed in full compliance with the state issued-newly standard of GB6245-2006 "Fire pump", according to the end-user's practical needs and special using requirements. The inspection of the state fire equipment quality supervising center shows its all kinds of performance indexes are up to or over the standard's requirements and it earned the certificate for fire state products.

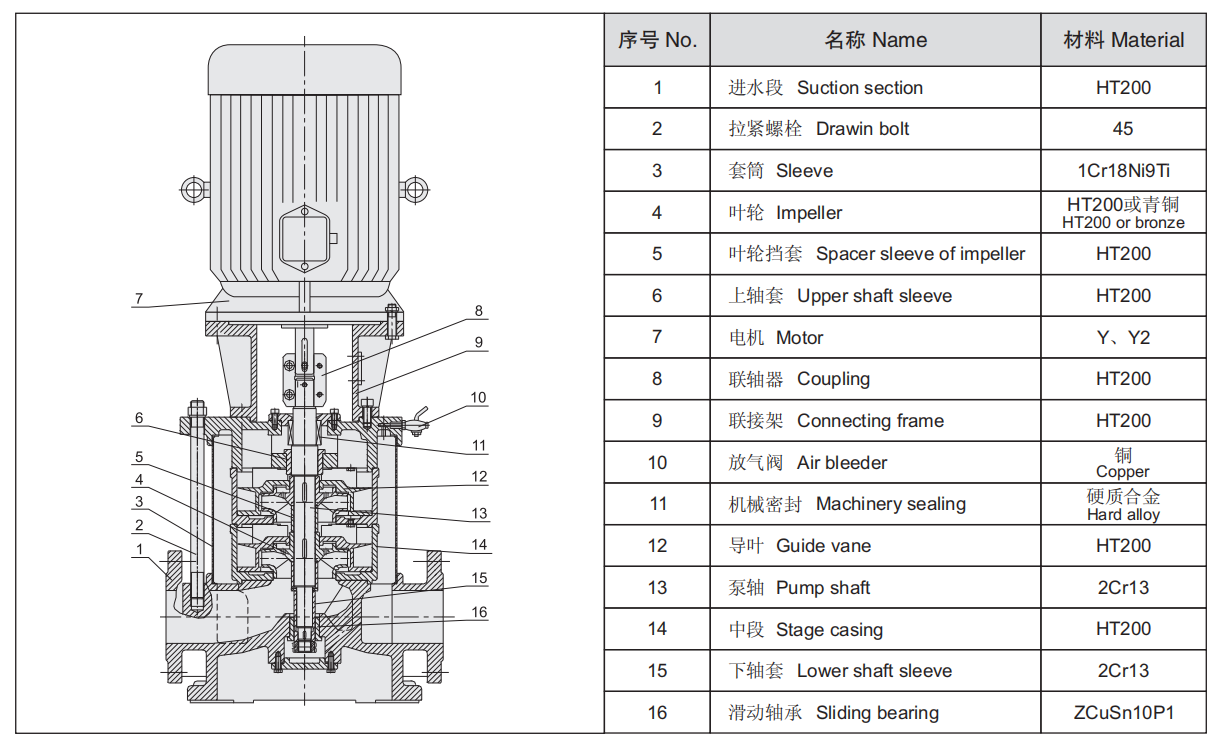

Product Structure

Application
1. Application Scope
XBD series fire pumps are mainly used for the fixed fire hydrant fire system; automatic spraying fire system used by all sorts of organs, projects, high-floor buildings etc. and can be transferred with the clear water without solid grain under 100 or its equivalence, also be used for public-used water providing system for fire, living, production, construction and municipality.

2. Using Instruction

Before start:
1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position.
2. Opening the inlet valve and the vent valve, letting the water fill into the pump's chamber, then closing the vent valve.
3. Clicking the switch of motor, and confirming whether the turning is right or not.

Running:
1. Fully opening the inlet valves, and closing the valves of the outlet pipe.
2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal.
3. Watching whether there exist abnormities or not, if yes, should the pump be stopped and inspected before re-running.

Stop:
1. After turning off the outlet valves one by one, shutting off the power.
2. Shutting off the inlet valves.
3. If the ambient temperature is below 0, some warm keeping measures should be adopted.

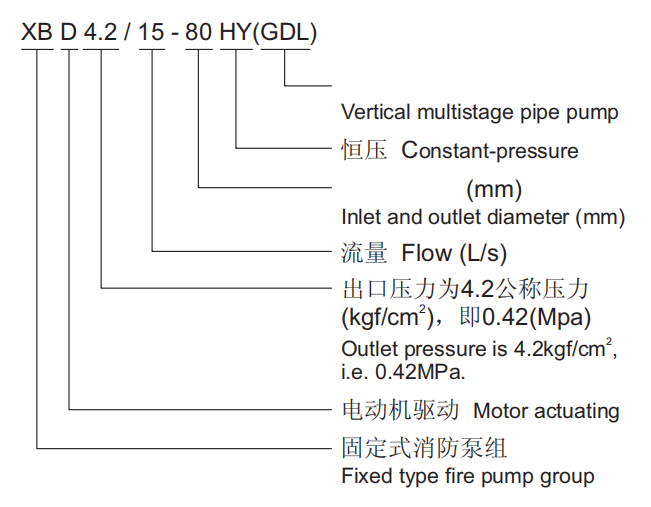

Model meaning



Technical Data
Model Flow(m3/h)



Head(mpa)



Power(kw)



Speed (rpm)



Caliber (mm)



XBD3.6/0.56-25GDL 2 0.36 1.1 2900 25
XBD12.0/1.11-25GDL 4 1.2 4 2900 25
XBD4.6/1.67-40GDL 6 0.46 2.2 2900 40
XBD12.0/1.67-40GDL 7.2 1.2 4 2900 40
XBD4.2/3.33-50GDL 12 0.42 3 2900 50
XBD10.5/3.33-50GDL 12 1.05 7.5 2900 50
XBD6.0/5-50GDL 18 0.6 5.5 2900 50
XBD15.0/5-50GDL 18 1.5 15 2900 50
XBD3.0/5-65GDL 18 0.3 3 2900 65
XBD7.0/6.67-65GDL 24 0.7 7.5 2900 65
XBD5.8/10-80GDL 36 0.58 11 2900 80
XBD11.2/15-80GDL 54 1.12 30 2900 80
XBD5.6/20-100GDL 72 0.56 18.5 2900 100
XBD14.0/20-100GDL 72 1.4 45 2900 100
XBD8.0/25-100GDL 90 0.8 37 2900 100
XBD18.0/25-100GDL 90 1.6 75 2900 100
XBD6.0/30-100GDL 108 0.6 30 2900 100
XBD20.0/30-100GDL 108 2.0 90 2900 100
XBD4.0/40-150GDL 144 0.4 30 2900 150
XBD13.8/40-150GDL 144 1.38 90 2900 150
XBD7.8/45-150GDL 162 0.78 55 2900 150
XBD14.0/45-150GDL 162 1.4 90 2900 150
More Specifications, please contact us.
