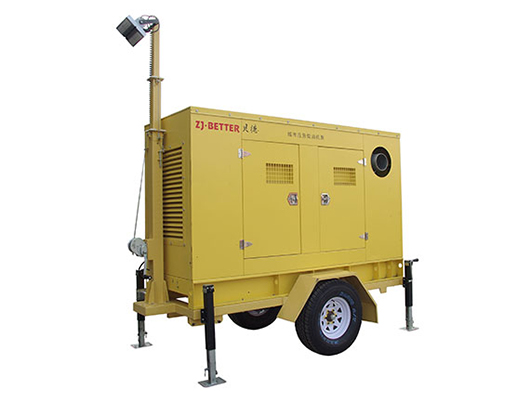

Sewage rescue drainage diesel water pump

Model:
MPC-HWC
Capacity(m³/h):
9000
Head(BAR):
22
Power(KW):
555
Share:
Product Overview
Application
Technical Data
Inquiry
Product Overview
Model:MPC-HWC General description:Capacity:100~9000m³/h,Head:3.5~22m Structure:Trailer mounted, mobile, fixed type Engine brand:Quanchai、Shangchai、CUMMINS、Weichai、Deutz、Beinei、FIAT、Longxin, etc. Product Description:
1. Transmission mode: There are direct drive and variable speed drive. The model (power, speed) of the power unit should be specified when ordering to determine the specifications of the coupling or pulley.
2. Pump direction: See from the direction of the diesel engine as a clockwise rotation (the 650HWC--5, 7, 10 positions rotate counterclockwise.)
Application
MPC-HWC series sewage rescue drainage diesel water pump is a mobile pump developed by Better Technology Co., Ltd. based on large-flow mixed-flow pump. MPC-HWC series sewage rescue drainage diesel water pumps are horizontal, single-stage, single-suction, volute-type mixed flow pump sets. It is suitable for conveying or draining water, rainwater or sewage. The temperature of the medium to be transported should not be higher than 100 °C. The sewage rescue drainage diesel water pump has strong maneuverability and convenient movement. It is widely used in rural farmland irrigation and drainage, urban sewage treatment plant sewage, industrial large-flow low-lift circulating water, construction and transformation of municipal sewage pipe network, and reconstruction and expansion of old pumping station. Water circulation in lakes, industrial drainage and urban flood control and drainage.
Technical Data
Item name Qty Note
Vacuum assist device 1set Better Technology Co.,LTD.
Diesel engine package 1set Match the pump
Diesel engine fuel tank 1pc Better Technology Co.,LTD.
speed reduction mechanism 1set Better Technology Co.,LTD.
equipment base flame 1set Better Technology Co.,LTD.
Mixed flow pump assembly 1set Better Technology Co.,LTD.
rainproof facilities(IP65) 1pc Outdoor type, two-door wing door design.
starting device 1pc Better Technology Co.,LTD.
starting power device 1pc Camel Brand
Silent muffler 1pc Come with
starting device 1pc Instrument display, key switch, ignition start
Inlet pipe assembly 1set Better Technology Co.,LTD.
Outlet pipe assembly 1set Better Technology Co.,LTD.
Two (four) wheels mobile trailer system 1set SUV vehicle tires, traction systems, steering mechanisms, parking brake systems
Optional parts:
Vacuum assist device
Each inlet (set) of the inlet pipe is equipped with: 1 wire-lined hose, 1 set of Paul quick connector
Each outlet (set) is equipped with: 1 roll of blue water hose and 1 set of Paul quick joint.
1 absorption filter.
