Horizontal mulistage pump

ISW series horizontal centrifugal pump is a new generation of energy saving,environment friendly verticalcentrifugal pump researched and developed by our company,whichabsorbs advanced technology of similar products abroad and adoptsdomestic general performance parameters of centrifugal pumps.

The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. The long shaft pump provides flexibility through customization options and multiple driving choices. It is a reliable solution for water supply, sewage treatment, and chemical processes. Choose the long shaft pump for reliable and efficient fluid handling in your engineering projects.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C¡£
Series OTS pumps are available for capacities Of 69-000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc. ?

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

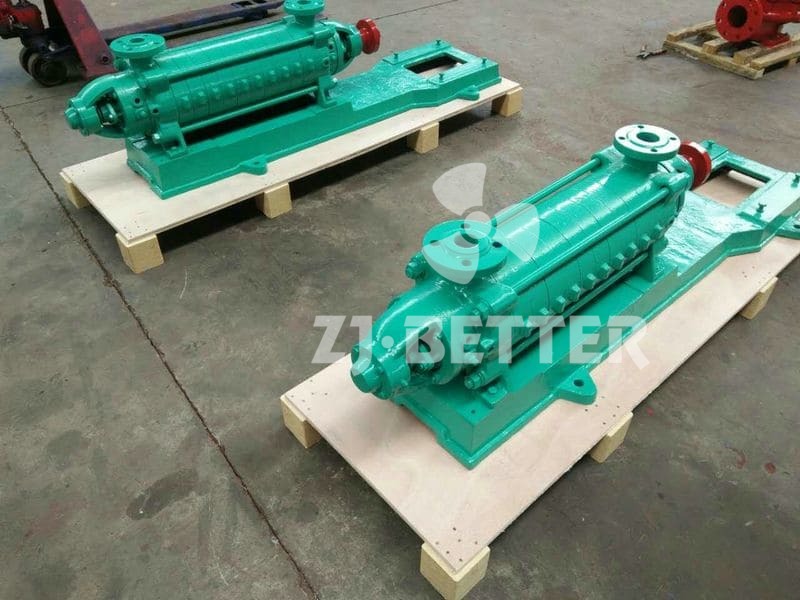

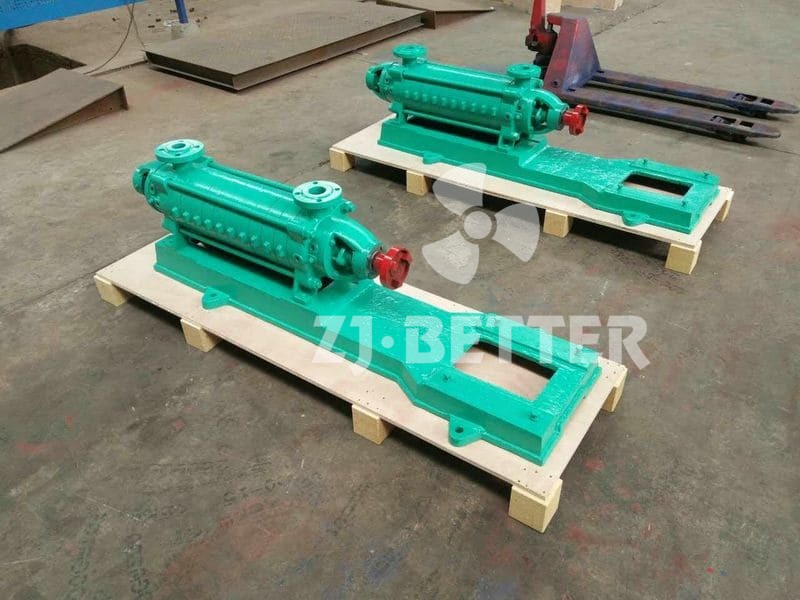

multistage pump part waiting for patinting

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

ISO series single stage centrifugal pump is a single-stage single-suction centrifugal pump product developed by China Better Technology Co, Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard. This product combines the strengths of similar products at home and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

D-type horizontal multistage centrifugal pump is a single-suction multistage segmental centrifugal pump with advanced and reasonable structure, high pump efficiency, good cavitation resistance, low vibration, stable and reliable operation, and long life.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

Horizontal fire pump with high efficiency and low noise operation, good resistance to cavitation performance, reasonable structure, long service life etc, it is mainly used for pressurized water supply in fire control system, can also be used in industrial water supply and drainage, pressurized water supply in high-rise buildings, distant distance water, cold and hot water circulation pressurization in heating, bathrooms and boilers, water supply in air-conditioning and refrigeration system and supporting equipment, etc.

Suitable for use with clean water. For Fire hydrant water supply, sprinkler system, fire system voltage regulator

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.

The XBD-W horizontal single-stage fire pump is a reliable and efficient fire protection solution. Designed with advanced technology, this pump offers powerful drainage capabilities and dependable performance, providing outstanding fire protection for buildings and industrial facilities. This article highlights the features and advantages of the XBD-W horizontal single-stage fire pump, explaining why it is the ideal choice for your fire suppression system.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

The vertical turbine pump can be used to transport liquids such as clear water below 55°C, rainwater, scale water, sewage, industrial wastewater with corrosive irritation, sea water, etc.; after special design, it can transport liquids at 90°C. It is widely applicable to industrial and mining enterprises such as water supply companies, sewage treatment plants, power plants, steel plants, and mining, as well as engineering projects such as municipal road engineering water supply and drainage, farmland irrigation, and flood control and drainage.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

Electric fire pumps are mainly used for pressurized water supply for fire protection systems, and can also be used for drainage of factories and mines. Mainly used in industrial and mining enterprises, engineering construction, high-rise buildings and residential area fire hydrant water supply system, automatic sprinkler fire extinguishing water supply system.

Sewage pump is a kind of non-clogging pump, with various forms: such as submersible and dry type, dry type sewage pump with cam rotor, mainly used to transport urban sewage, feces or liquid containing fibers, paper scraps For mediums such as solid particles, the temperature of the medium to be conveyed is usually not greater than 80 ¡ãC. Because the conveyed medium contains fibers that are easily entangled or bunched. Therefore, the flow channel of this kind of pump is easy to be blocked. Once the pump is blocked, the pump will not work normally, and even the motor will be burned, resulting in poor sewage discharge. It has a serious impact on urban life and environmental protection. Therefore, blocking resistance and reliability are important factors for the quality of sewage sewage pump.

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Flow：50-7500 GPM
Head：3-20 Bar
The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. It is a reliable solution for water supply, sewage treatment, and chemical processes.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

CDL multistage pipeline centrifugal pump is my unit at home and abroad on the basis of excellent pump type combined with user requirements and fire protection standards.

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

This is a set of vertical turbine pump with a flow of 500gpm and a pressure of 7.5bar customized by a UAE customer. The vertical turbine pump is mainly composed of three parts: the upper part is the motor, the middle part is the water delivery pipe and the drive shaft. The lower end is the deep well. The working part of the pump, submerged below the surface of the well. Due to the depth of the well, the lift is required to be larger.

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.

The pump is the horizontalL structure, the inlet and outlet are the same in diameter, and lying in the same center line, which can be installed in the pipeline as valve, the floor space needed is small,if the protection cover is added, it can be put in the open air.
