New Benchmark of Efficiency: Performance of the Electric Fire Pump in Commercial Buildings

The OTS Double-Suction Split-case centrifugal Pump with High-Pressure Electric Motor is an exceptional firefighting equipment. This powerful combination delivers high flow rates and unmatched pumping efficiency, ensuring robust and continuous firefighting actions. Its compact design allows for quick deployment and rapid response, making it suitable for various settings. From rural wildfires to urban firefighting needs, this firefighting pump safeguards communities of all sizes, representing the pinnacle of safety and protection.

Cavitation: Caused by low suction pressure, leading to vapor bubble formation and potential damage.
Wear and Tear: On impellers, bearings, and seals due to prolonged use.
Vibration: Often due to misalignment or imbalance.
Overheating: Usually a result of poor lubrication or mechanical binding.

Vertical turbine pump pacakge process
The vertical turbine pump is hot sale in Philippines makrket
It can save pump room area and use in port area
If any need can contact with us

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

Submersible pump is an important equipment for deep well water extraction. During use, the whole unit works in the water to extract groundwater to the surface, which is used for domestic water, mine rescue, industrial cooling, farmland irrigation, sea water lifting, ship load regulation, and fountain landscape.

Site conditions
YE3 series motors air suitable for almost all applications and operate satisfactorily at temperatures from -20 to +40 and
altitudes up to 1000 meters above sea level.
Temperature and insulation
The Motors’ insulation system are designed by Class F(155 ), operated with Class B(80K). Which incerase the motor useful
life and reliability.
Cooling and ventilation
The standard cooling method is totally Enclosed Fan Cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard
motors are equipped with radialflow plastic fans.
Protection class
The standard degrees of protection is IP55.The IP55 enclosure means complete hoseproof and dustproof protection. A
higher degrees of protection is available.
Motor protection
Motors can be installed with PTC, PT100, such as winding and bearing temperature measurement as well as other kinds of
protection on request

·UL Standard:
Flow:50-500GPM
Head:6-16 Bar（90-230PSI）
·Non-UL Standard:
Flow：50-5000 GPM
Head：3-16 Bar（40-232 psi）

As an essential component of modern fire protection systems, electric fire pumps are widely favored for their high efficiency, energy savings, and robust durability. Compared to traditional power fire pumps, electric fire pumps offer quick startup, stable operation, and easy maintenance, enabling rapid response during fire emergencies while providing strong and stable water pressure to ensure smooth firefighting operations.
Moreover, electric fire pumps are equipped with intelligent control systems that automatically monitor water pressure and flow, adjusting pump operation in real-time to keep the entire fire protection system at optimal performance. Whether in industrial facilities, commercial buildings, or high-rise residences, electric fire pumps provide reliable fire safety assurance.

With proper maintenance and regular testing, an electric fire pump can have a lifespan of 20-30 years or more. Regular inspections and timely repairs are key to ensuring its longevity and reliability.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow.

Fire pumps will have different forms, such as our common vertical fire pumps, horizontal fire pumps and submerged fire pumps, etc. Different fire pumps will be used in different places. Due to its compact structure and small footprint, the vertical fire pump is suitable for water supply for fire protection systems in various environments. Horizontal fire pumps are also suitable for fire water supply in various environments in theory, but because of their large flow and high work efficiency, they are more suitable for fire water supply in houses, hotels, hospitals, commercial buildings, etc.

The current use of fire pumps is still relatively important. As the name suggests, fire pumps are pumps used for fire protection. The fire pumps we use now are all imported from abroad. Its performance mainly includes three aspects, sealing, no leakage, and corrosion resistance. Because of the particularity of its use, its requirements are relatively strict in terms of material selection and production. Considering many aspects, the performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Methods” standard.

Flow：50-5000 GPM
Head：3-16 Bar
The XA series single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing.

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

Flow: 1~300L/s
Head: 0.15~1.6MPa
Speed: 960~3500r/min

ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

Flow：50-5000 GPM
Head：3-16 Bar (40-232 psi )
Power：11-1000 kw
Frequency：50 or 60 Hz
ISO end-suction pumps find wide application in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants, oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Long-shaft pump is a kind of centrifugal pump. From the perspective of centrifugal pump, it is improved from the performance of submerged pump. This pump can be used to transport rainwater, iron oxide water, sewage, corrosive industrial Wastewater, seawater and other liquids. Widely used in water companies, sewage treatment plants, steel plants, mines and other industrial and mining enterprises, as well as municipal water supply and drainage, farmland irrigation, flood control and drainage projects.

The long shaft pump is a high-performance engineering pump known for its unique long shaft design and exceptional capabilities. It offers advantages such as suitability for deep-buried pump stations, improved transmission efficiency, and reduced energy consumption. With excellent corrosion resistance and reliability, it can handle various fluids in diverse environments. The long shaft pump provides flexibility through customization options and multiple driving choices. It is a reliable solution for water supply, sewage treatment, and chemical processes. Choose the long shaft pump for reliable and efficient fluid handling in your engineering projects.

A Vertical Turbine Fire Pump serves a crucial role in fire protection systems, especially in large commercial and industrial buildings, as well as facilities with high-rise structures. Its purpose is to provide a reliable source of water at adequate pressure and flow rate to fire sprinkler systems, hydrants, and other fire suppression equipment in the event of a fire emergency. Here are the main purposes of a Vertical Turbine Fire Pump:

XBD series fire pump set is a new type of fire pump developed by our company according to the actual needs of the market for fire booster (stabilized) pumps and its special requirements for special use, and in strict accordance with the latest national GB6245-2006 “fire pump” standard. product. Tested by the National Fire Equipment Quality Supervision and Testing Center, all performance indicators meet or exceed the standard requirements, and have obtained the formal certification of the National Fire Equipment Testing Center.

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.

The vertical electric fire pump set offers high efficiency, energy saving, and low-noise operation, making it ideal for high-rise buildings, industrial plants, and municipal projects with its compact design, smart control, and easy maintenance.

Submersible sewage pump is a pump product used in the environmental protection industry to transport solid-liquid mixed liquids containing solid particles, fibers, etc., such as domestic sewage, industrial wastewater, mud, etc. WQ type submersible sewage pump is composed of sewage pump, sealing system, submersible motor, control and protection system, automatic installation system and so on. Different from the general sewage pump: in the WQ type submersible sewage pump, the pump and the motor rotate coaxially, and work underwater at the same time. The sealing system of the pump can effectively prevent the liquid from entering the motor cavity and protect the safe operation of the motor. The control and protection system enables the pump to alarm in time and shut down for repairs in the event of water leakage, oil leakage, overload, overheating, and lack of phase failure.

– Jockey pumps in large-scale facilities:

Pressure Maintenance: Keep the fire protection system pressurized to prevent false alarms and ensure immediate response during a fire event.
Leak Compensation: Compensate for minor leaks in the system, maintaining steady pressure without activating the main fire pump.
System Readiness: Ensure the system is always ready for immediate use by maintaining constant pressure levels.

Regular maintenance should be performed weekly, monthly, and annually. Weekly inspections typically involve checking the pump house conditions, while monthly and annual checks include running the pump and testing its components.

Horizontal fire pumps have a wide range of applications and are suitable for the supply and extraction of various fire water sources, including tap water, reservoirs, reservoirs, etc. In terms of building fire protection, horizontal fire pumps can be used in fire extinguishing water systems, sprinkler water systems and foam fire extinguishing systems. In terms of industrial fire protection, horizontal fire pumps can be used in railway stations, ports, chemical plants and other places. In addition, horizontal fire pumps can also be used for rural fire protection, such as fire protection propaganda, drought resistance irrigation, flood control and disaster relief, etc.

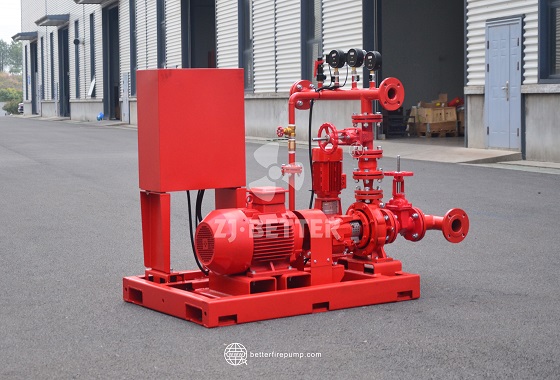

3 sets electric pump product process
It is XA model, and suitable for high flow and pressure
This model is 350gpm 120 psi

Maintenance schedules are critical for the longevity and reliability of the pump:

Weekly: Perform visual inspections and check for any obvious signs of wear or damage.
Monthly: Conduct operational tests to ensure the pump starts and runs correctly.
Annually: Perform comprehensive performance tests, including a full-flow test to verify the pump meets the designed flow and pressure requirements.

Compared with domestic water pumps and production water pumps, fire pumps should have higher performance requirements. Most single-stage fire pumps provided by fire water sources require fire pumps to be pressurized to meet the water pressure and water volume requirements during fire fighting. The failure of the water pump due to improper setting and maintenance will inevitably affect fire fighting and rescue, causing unnecessary losses.
