Remote Monitoring Electric Fire Pump System: Building the Future of Smart Firefighting

CDL/CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor.
The motor output shaft directly connect with the pump shaft through a coupling.
The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet &outlet section with stay bolts.
The inlet and outlet are located at the pump bottom at the same plane.
This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.

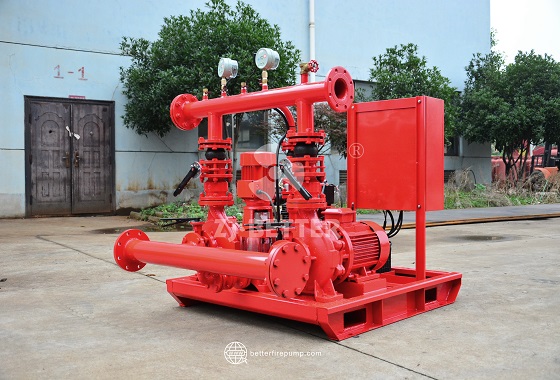

The electric motor fire pump unit is widely used in modern fire protection systems for its outstanding efficiency and stability. It features rapid startup, smooth and quiet operation, and continuous water supply, enabling immediate response in fire emergencies and ensuring reliable water delivery for firefighting.
With its compact and integrated structure, the unit requires minimal installation space and offers easy maintenance. The built-in intelligent control system enables automatic start-up, real-time monitoring, and fault alarms, significantly improving operational safety and user convenience.
Whether used in high-rise buildings, industrial facilities, or public venues, this electric fire pump unit delivers dependable performance and is an ideal choice for building an efficient fire protection system.

This is a set of vertical turbine pump with a flow of 500gpm and a pressure of 7.5bar customized by a UAE customer. The vertical turbine pump is mainly composed of three parts: the upper part is the motor, the middle part is the water delivery pipe and the drive shaft. The lower end is the deep well. The working part of the pump, submerged below the surface of the well. Due to the depth of the well, the lift is required to be larger.

Pumps type IS is a kind of axial suction centrifugal pump with single stage and suc-tion.
It is used to pump clear water and physical or chemical liquid similar to clear water below85℃, and is widely applied to industries, to citywater supply and drain, and also to agricultural and orchard irrigation.

The OTS Double-suction Split-case centrifugal pump is a widely used centrifugal pump in industrial and water supply systems. It features a double-suction design with two suction inlets on either side of the pump. This pump offers high efficiency, stability, and reliability due to its rational design and advanced fluid dynamics principles. It can handle large flow rates and high heads, making it suitable for various applications. The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The vertical turbine pump can be used to transport liquids such as clear water below 55°C, rainwater, scale water, sewage, industrial wastewater with corrosive irritation, sea water, etc.; after special design, it can transport liquids at 90°C. It is widely applicable to industrial and mining enterprises such as water supply companies, sewage treatment plants, power plants, steel plants, and mining, as well as engineering projects such as municipal road engineering water supply and drainage, farmland irrigation, and flood control and drainage.

The Vertical Single stage fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more.

The fire pump is known to be used in fire -fighting pumps. It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. Fire prevention system. The performance and technical conditions of the fire pump meet the requirements of the “Fire Pump Performance and Test Method” standard.

The Portable Irrigation Pump is a portable and user-friendly tool used primarily by farmers and gardening enthusiasts for small-scale irrigation in fields, vegetable gardens, and flower beds. With its manual operation, this pump requires no external power source, making it suitable for remote areas lacking electricity or other energy supplies.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

Sewage pump is a kind of non-clogging pump, with various forms: such as submersible and dry type, dry type sewage pump with cam rotor, mainly used to transport urban sewage, feces or liquid containing fibers, paper scraps For mediums such as solid particles, the temperature of the medium to be conveyed is usually not greater than 80 ¡ãC. Because the conveyed medium contains fibers that are easily entangled or bunched. Therefore, the flow channel of this kind of pump is easy to be blocked. Once the pump is blocked, the pump will not work normally, and even the motor will be burned, resulting in poor sewage discharge. It has a serious impact on urban life and environmental protection. Therefore, blocking resistance and reliability are important factors for the quality of sewage sewage pump.

XBD fire pump has the advantages of low energy loss, small footprint, low noise operation, easy disassembly and assembly.

The XA single-stage centrifugal pump is a widely used industrial pump designed for fluid transportation and handling in various industries. It features a simple and compact design with a rotating impeller and a stationary pump casing. The pump offers high efficiency, reliability, and flexibility in installation. It finds applications in water treatment, agriculture, construction, petrochemicals, energy, pharmaceuticals, and food processing. The XA pump is capable of handling different fluid mediums and provides efficient flow control. Its operating principle utilizes centrifugal force to draw in and propel fluids through the pump. Overall, the XA single-stage centrifugal pump is a reliable and efficient solution for fluid pumping needs in industrial settings.

There are many classification methods for fire pumps, which can be divided into sprinkler pumps, fire hydrant pumps, stabilized pumps, etc. according to their uses.
The function of the fire pump is relatively powerful. There are many models and a wide range of functions. Its selection is a problem that many users need to take seriously. Choosing a suitable model is not only easy to use, but also convenient for later maintenance.

The Horizontal Multistage Pump is an exceptional engineering solution that offers high performance and reliability for fluid handling applications. With its unique multistage impeller design, it delivers efficient and incremental pressure boosting for high-pressure and high-flow scenarios. Whether used in water supply systems, industrial processes, irrigation, or building cooling, this pump ensures stable water pressure and flow. Its compact design allows for easy installation and maintenance, while its superior construction materials guarantee durability and long-term reliable operation. Choose the Horizontal Multistage Pump to achieve exceptional performance and success in your fluid handling projects.

An electric fire pump system typically includes:

The electric fire pump itself.
An electric motor to power the pump.
A controller to manage the pump’s operation.
Piping and valves to direct water flow.
Pressure relief valves and gauges.

Electric fire pumps are used in diverse settings, including but not limited to commercial properties, industrial plants, warehouses, residential buildings, educational institutions, healthcare facilities, and public infrastructure like airports and stadiums.

The Vertical Inline pump is used for conveying liquids. It consists of an electric motor, pump body, impeller, and sealing device. The pump is suitable for conveying various liquids and can be selected based on specific process requirements and medium characteristics.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

The ZJ-BETTER Remote Monitoring Electric Fire Pump System is an advanced firefighting solution that integrates smart control, remote monitoring, and multi-system linkage. With features like 24/7 remote management, automatic operation, self-diagnostic protection, and energy efficiency, it is ideal for high-rise buildings, industrial parks, and smart city fire protection systems—helping build a responsive, intelligent, and reliable fire safety network.

The single-suction pump sucks in horizontally and axially, and spit out radially upwards. The pump is a suspension structure, and the rotor parts can be withdrawn for maintenance without disassembling the inlet and outlet pipelines during maintenance. The pump is connected with the motor through a common elastic coupling or an extended elastic coupling, and the shaft seal of the pump is sealed with a soft packing. The bearing is a single row radial ball bearing, lubricated with lubricating oil. From the motor side, the pump rotates clockwise.

If an electric fire pump fails during an emergency, the following steps should be taken:

Activate the backup pump: If available, switch to a secondary pump or manual firefighting methods.
Investigate the cause of failure: After the emergency, perform a thorough inspection to determine the cause of the failure.
Repair or replace the pump: Address the identified issues and restore the pump to full operational status.
Review maintenance practices: Ensure regular testing and maintenance procedures are followed to prevent future failures.

Selecting the right fire pump is a critical decision that depends on a range of factors. These factors include the facility’s water supply source, the building’s size and layout, the required flow rate, and the local fire codes and regulations.

For example, a large industrial facility may require a high-capacity fire pump, while a small office building may need a lower-capacity pump. The choice also depends on whether the facility uses municipal water, a private water supply, or a combination of both.

Consulting with a fire protection engineer or specialist is often recommended to ensure the selection of the most suitable fire pump for a specific application.

Vertical turbine pumps, electric motor fire pumps, diesel engine fire pumps and submersible deep well pumps can all use mechanical seals, and mechanical seals with different materials and performances can be selected according to different environments. In pumps with different frequency of use, mechanical seals should be inspected and maintained according to actual conditions to ensure their long-term stability.

Sewage pumps are common equipment in engineering. They are valued by more and more industries due to their strong sewage and pumping capabilities. Fibers that are highly corrosive, easily entangled or bunched, for example, the conveying medium is feces or liquids, and contains solid particles such as fibers and paper scraps.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces.They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Long-shaft pump is a kind of centrifugal pump. From the perspective of centrifugal pump, it is improved from the performance of submerged pump. This pump can be used to transport rainwater, iron oxide water, sewage, corrosive industrial Wastewater, seawater and other liquids. Widely used in water companies, sewage treatment plants, steel plants, mines and other industrial and mining enterprises, as well as municipal water supply and drainage, farmland irrigation, flood control and drainage projects.

Flow：250-10000 GPM
Head：30-160 m 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.
