Single stage horizontal multistage pump

The horizontal explosion-proof oil pump has a simple structure, convenient maintenance, can be fixed and installed without vibration, good sealing, low noise, convenient maintenance and low price. It can be used for garden sprinkler irrigation, high-rise building water supply and drainage, metallurgy, mining, food, chemical and fire protection systems and other industries to transport water, chemical media and other liquids.

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.

The vertical split pump has a compact structure and a beautiful appearance. This series of pumps is a convenient dismantling structure. The pump and the pump are integrated, and the appearance is beautiful. Dismantling function, convenient maintenance, low maintenance cost.

500GPM 120 PSI electric vertical turbine pump ready to package

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

ISW series horizontal centrifugal pump is a new generation of energy saving,environment friendly verticalcentrifugal pump researched and developed by our company,whichabsorbs advanced technology of similar products abroad and adoptsdomestic general performance parameters of centrifugal pumps.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C¡£
Series OTS pumps are available for capacities Of 69-000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc. ?

The key components include the electric motor, pump assembly (which includes the impeller and casing), controller or control panel, suction and discharge piping, and any necessary valves and fittings.

Proper maintenance of an electric fire pump is essential to ensure its reliable performance during emergencies. Regular maintenance helps identify and address potential issues before they escalate into major problems. Here are some general steps to maintain an electric fire pump:

Pump type we use is single stage single suction horizontal pump, electric fire pumps are mainly used for the fixed fire hydrant fire system; automatic spraying fire system used by all sorts of organs, projects, high-floor buildings etc. and can be transferred with the clear water without solid grain under 100 or its equivalence, also be used for public-used water providing system for fire, living, production, construction and municipality.

The XBD-DL vertical multistage fire pump is a top-tier technology designed to enhance the safety and efficiency of building fire protection systems. With advanced design and technology, this pump offers excellent corrosion resistance and durability, making it suitable for various environmental conditions. Its high-performance turbine blade design and efficient motor ensure powerful water pressure and flow, enabling rapid and effective water delivery. The intelligent monitoring system and fault alarm function enhance the pump’s reliability and availability. By choosing the XBD-DL vertical multistage fire pump, you gain an innovative and efficient solution to enhance the safety and efficiency of your fire protection system.

Flow：250-10000 GPM
Head： 3-16 Bar
The split-case structure allows for easy maintenance, and its wide pump range ensures compatibility with different operating conditions. The OTS pump finds application in water supply, cooling systems, industrial processes, and fire protection systems, providing reliable performance for handling different liquid media.

The air conditioning circulation pump, also known as a chilled water pump, is a vital component of air conditioning systems used for circulating refrigerant or chilled water. It plays a crucial role in heat exchange and temperature regulation. The pump consists of an electric motor, pump body, impeller, sealing device, and control system. It enables the circulation of the refrigerant or chilled water to absorb or release heat, thereby achieving the desired cooling effect and regulating indoor temperatures. Key features of air conditioning pumps include high efficiency, control and automation capabilities, and diverse options to suit different system requirements. The selection of an appropriate air conditioning pump should consider specific system needs, flow rates, head pressures, and mediums.

Pumps type IS is a kind of axial suction centrifugal pump with single stage and suc-tion.
It is used to pump clear water and physical or chemical liquid similar to clear water below85℃, and is widely applied to industries, to citywater supply and drain, and also to agricultural and orchard irrigation.

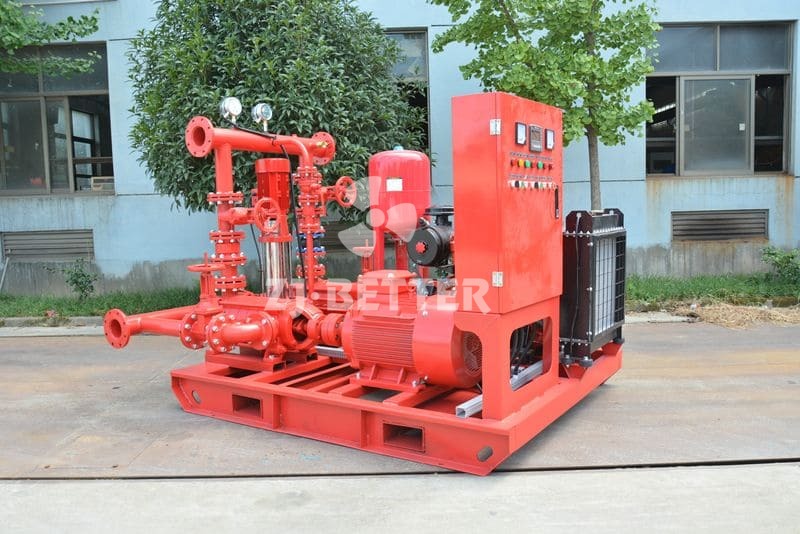

Features:
* Automatic start:After receiving the start signal, the diesel pump unit can start automatically and put
into full load operation within 5-15 seconds.
* Automatic charging: Batteries can be automatically charged by charging motors of municipal or
diesel engines to ensure the smooth start of the unit.
* Automatic alarm:Automatic alarm and protection for diesel engine faults such as low oil pressure
and high water temperature, alarm and stop at super speed.
* Reliable and Economic:It can run in the condition of power cut,no electricity charge.

Horizontal fire pumps have significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure, and long service life. , Long-distance water delivery, heating, bathroom, boiler cold and warm water cycle pressurization, air conditioning and refrigeration system water delivery and equipment matching and other occasions.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

A pipeline pump refers to a water pump that can be directly installed on a water pipeline, and can also be called a pipeline centrifugal pump. More space-saving compared to ground-mounted pumps. The pump is mainly used for industrial water transportation and urban water systems. The main advantage is that it can pressurize, long-distance, and efficiently transport pure water media without particles and debris. The pump has developed to a very rich specification. Model, different pump body materials can be selected in different transportation environments, and it is a very popular transportation equipment at present.

Vertical pipeline pump is an auxiliary pump type that is widely used in building water supply, and can also be used in air conditioning, heating, ventilation, agricultural irrigation and other fields. In the use of the pump station, it mainly plays an auxiliary role in the midway pressurization to ensure the normal transportation of the medium in the pipeline and achieve the purpose of the final project transportation. The product has the advantages of simple and compact structure, small footprint; convenient installation, easy maintenance and repair; reliable sealing to ensure no leakage.

Flow：50-5000 GPM
Head： 3-16 Bar
ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others.

The vertical turbine pump is a vertical pump composed of single or multiple centrifugal or mixed flow impellers and guide casings, lift pipes, drive shafts, pump bases, motors and other components. The pump base and motor are located on the upper part of the wellhead (or pool), and the power of the motor is transmitted to the impeller shaft through the transmission shaft concentric with the lift pipe, which drives the impeller to generate flow and lift.

The IS series single-stage centrifugal pump is a reliable and versatile solution for fluid transfer applications. Known for its simplicity and ease of use, this horizontal centrifugal pump is designed to efficiently transport clear water and fluids with similar properties. With a compact structure and convenient maintenance, the IS pump offers stable and low-noise operation, making it suitable for a wide range of industrial, agricultural, and municipal tasks. Whether it’s for industrial cooling systems, municipal water supply, agricultural irrigation, or firefighting applications, the IS single-stage centrifugal pump provides efficient and dependable liquid handling. Its durable construction and corrosion-resistant materials ensure long-lasting performance.

ISO end-suction pumps offer high efficiency, high flow capacities, and the ability to withstand high pressures. The suction inlet is designed to efficiently intake fluids, while the pump itself is constructed to be compact, making it suitable for installation and maintenance in limited spaces. They also provide multiple material options to accommodate different fluid mediums, including corrosive and high-temperature substances. ISO end-suction pumps find wide application in industries such as chemical, petroleum, pharmaceutical, food and beverage, and water treatment, where they are used for fluid transportation, circulation systems, heating, and cooling systems, among others. In conclusion, ISO end-suction pumps are reliable and efficient industrial pumps that meet global standards, making them suitable for various industries and applications.

Fire pumps, as the name implies, are used for fire fighting. They are divided into different types according to different classification methods. They are fully sealed, leak-free and corrosion-resistant. They are widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is an ideal pump for creating a leak-free, pollution-free civilized workshop and civilized factory.

The XBD-L Vertical Single stage single suction fire pump is specifically designed for fixed fire protection systems in a wide range of settings, including businesses, construction projects, and high-rise buildings. It is a vital component in fire hydrant extinguishing systems, automatic sprinkler fire suppression systems, and more. This pump set is capable of delivering clear water and water-like media with physical and chemical properties similar to water, without solid particles, at temperatures below 100°C. It is also suitable for fire protection, domestic water supply, shared water supply systems, as well as building and municipal water supply and drainage applications.

Regular testing and maintenance are crucial for ensuring the reliability of fire pumps when they are needed most. Fire pump testing typically includes flow tests, which evaluate the pump’s performance under various conditions, and driver tests, which examine the performance of the power source (electric motor or diesel engine). Routine inspections and maintenance should be conducted according to National Fire Protection Association (NFPA) standards and the manufacturer’s recommendations.

These tests and maintenance activities help identify potential issues, allowing for preventive measures and timely repairs, thus ensuring the fire pump’s readiness in case of an emergency.

1.Electric Fire Pump
XBD series fire pumps are a kind of new type fire products researched and developed in full compliance with the state issued newly standard of GB6245-2006 “Fire pump”, according to the end-user’s practical needs and special using requirements.
The inspection of the state fire equipment quality supervising center shows its all kinds of performance indexes are up to or over the standard’s requirements and it earned the certificate for fire state products.
2.Jockey Pump
Pump motor, pump head, guide vanes, impeller, pressure tube, and out of the water segment, the shaft, mechanical seal components.
Pump key parts guide vanes, impeller, pressure cylinders, shafts are made of stainless steel pump head, and out of the water segment: CDL, pump iron castings CDLF pump with stainless steel precision castings.
Pump shaft seal, single mechanical seal friction pair to support the use of alloy steel carbide / graphite, the guide vanes.
Pump and piping connection type for the circular flange connection, according to user need to use different connection methods.

The characteristics of stainless steel are characterized by corrosion resistance and rust resistance. Long -term underwater work iron products will soon be rusted and cause damage to the body. Stainless steel is an ideal material.

The horizontal fire pump has a single-suction multi-stage and segmented structure. Among the newly developed series of energy-saving products, its performance parameters including its technical indicators all meet the relevant international standards, so it has the largest The characteristic is that it is very efficient, and the noise is very low during operation. In addition, its corrosion resistance is also very good. In addition, its structure is very reasonable, so its service life is very long.
