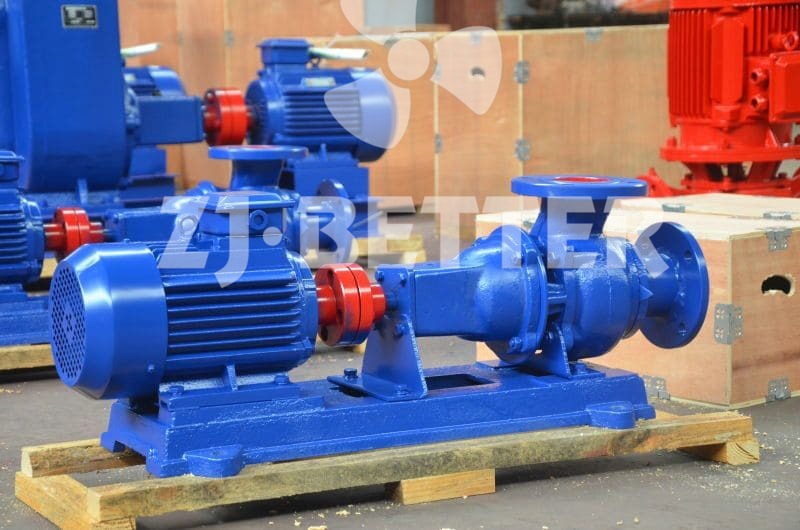

HORIZONTAL SEWAGE PUMP

PW pumps are single-stage single-suction cantilever centrifugal pump for pumping dirty liquid (liquid containing fibers and other suspended objects or stool), liquid temperature does not exceed 100 ℃ , suitable for urban, rural, industrial and mining sectors excluded sewage purposes

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.

1.Enterprise unit waste water discharge.
2.Urban sewage treatment plant discharge system.
3.Hospital, hotel, high-rise building sewage discharge.

In this pump room, electric pump power is 315kw

High efficiency, flat performance curve, wide operating range, in line with the relevant regulations of the fire department, and can meet the needs of different users
Adopt segmented structure, stable operation, low noise, long service life, small footprint, easy installation and maintenance

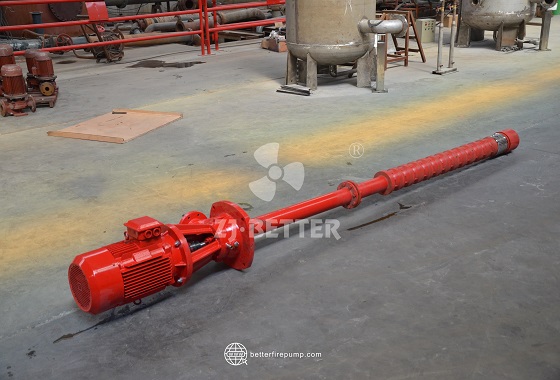

Vertical turbine pumps are commonly used in municipal water supply systems, agricultural irrigation systems, industrial water supply and wastewater treatment systems, and in mining and oil extraction operations.

Hygienic and clean to use, high efficiency, low noise, mild corrosion resistance and compact structure, beautiful appearance, small size, light weight, convenient use and maintenance, reliable sealing performance

The electrical control cabinet of fire pump set mainly has the functions of starting and stopping the pump, switching between main and standby pumps, manual and automatic switching, dual power switching, patrol inspection, protection, and feedback for mechanical emergency start.

The automatic water supply equipment automatically adjusts the number of running water pumps and the speed of a water pump according to the change of the user’s water consumption, so that the outlet pressure of the water pump remains constant.

Significant energy saving, small footprint, easy installation and stable performance.
The jacket is made of 304 high-quality stainless steel, and the shaft seal is made of wear-resistant mechanical seal, which has no leakage and long service life.
The axial force is solved by hydraulic balance, so the operation is stable and the noise is low.

The QXB submersible centrifugal aerator adopts the direct drive of the motor and the impeller, and uses the centrifugal force generated by the rotation of the impeller to displace the surrounding water to form a low-pressure area to inhale the water flow. At the same time, a vacuum is created at the inlet of the impeller to inhale air. The water is fully mixed to form a uniform gas-water mixture, which is quickly discharged under the action of centrifugal force.
Due to the extremely strong water jet, the effective water circulation is caused, and the air is sheared into a large number of tiny air bubbles. The surface area is greatly improved, and because the bubbles rise slowly, a large amount of oxygen in the air is dissolved in the water, which makes the power efficiency of the machine better than other types of aerators.

1. In the rural areas is mainly used as feces, mud and water, feed slurry pumping and pouring, instead of shoulder, and for flood, drought resistance, mud manure production can also simple flow fire pump in countryside.
2. Used in municipal engineering, chemical industry, printing and dyeing, pharmaceutical, shipbuilding, foundry, food and other industry suction thick liquid, dirty liquid, paste , flow sand and urban river flow sludge etc. can also be used in coal mines exclude fluid containing small mud gravel.
3. If with high pressure pump and water gun, the composition of hydraulic mechanized earthmoving machine, available in the formation of land, river and pond dredging, drilling and other small-scale water conservancy projects of excavation and transportation, and urban air defense engineering, underground engineering.
4. Fish used as a water pond, fish pond oxygen etc..

These are pictures of an EJ fire pump set control panel. The cabinet is made of galvanized sheet.

As the name implies, the fire pump is divided into different types according to different classification methods. It has the characteristics of full sealing, no leakage and corrosion resistance. It is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. , It is an ideal pump for creating a leak-free, pollution-free civilized workshop and civilized factory. The pump type is similar to that of the fire protection system, but the lift and flow are different.

Our company now has sophisticated technology equipment, top detection equipment, perfect supporting facilities, further improving the product quality. In order to enhance the brand effect, improve the company system, after the discussion of our company and the suggestion from customers, we have been gradually changing the packaging of our pumps. Our original packaging is fixed by iron wire.
But now, we use screw to fasten the products, to fix the product and the base.
In this way, even for long time transport, the products will be more safe and it will be more convenient and better for the customers.

XA bare pump with below Models for packing
XA100/26
XA80/26
XA65/32
XA50/32

The pump is optimized by domestic advanced hydraulic model. At the same time according to the use of temperature, medium and other different ISW based on the derivation of hot water pump, high temperature pump, chemical pump, oil pump, is the current national standard finalize the promotion of products. Horizontal pipeline oil pump

The star connection-delta connection utilizes the two connection methods of the motor to achieve the purpose of step-down starting, reduce the starting current, and reduce the impact of excessive current on the power grid. Simply put, the stator is connected in star at the start of the motor and then switched to delta connection after starting, which is the starting method of star-delta buck start.

When a partial failure of the equipment occurs, the emergency function can be enabled to continue the water supply. The equipment can be automatically connected to the municipal water supply network, and has dual constant pressure functions, which can meet the normal pressure and flow of domestic and production water, and can automatically switch to high-pressure and large-flow water supply when a fire occurs, and can be used for multiple purposes.

◆The temperature of the medium should not exceed 60℃, the weight of the medium should be 1-1.3kg/dm3, and the PH value should be in the range of 5-9.
◆For pumps without internal gravity circulation cooling system, the exposed liquid level of the motor part should not exceed 1/2.
◆The material of the main parts of this pump is cast iron, so it cannot be used for pumping highly corrosive liquids. If the conveying medium is corrosive, please choose a stainless steel submersible pump. If you also need an explosion-proof submersible pump, you must choose a stainless steel explosion-proof submersible pump.

Our highly acclaimed Box-type Non-Negative Pressure Water Supply Equipment is the savior for your hotels, hospitals, schools, and more! Not only does it provide stable water flow and pressure, but it also guarantees fresh water quality! Suitable for life water supply systems in high-rise buildings, residential communities, and large-scale architectural complexes, bid farewell to water shortage worries! The Box-type Non-Negative Pressure Water Supply Equipment features an advanced automatic control system that instantly starts the water pump when demand increases, providing you with a continuous and stable water flow. And when demand decreases, the pump intelligently stops, avoiding energy waste! The compact box-type structure makes installation and maintenance a breeze! Whether it’s solving water supply issues in low-pressure areas or addressing the needs of places like hotels, hospitals, and schools where water cannot be shut off but face insufficient tap water pressure, our Box-type Non-Negative Pressure Water Supply Equipment offers the perfect solution!

It is composed of pressure water tank, control cabinet, top pressure gas storage system, decompression release device and other basic components; In the condition of fire fighting, the compressed gas is filled into the pressure water tank to replace the fire fighting water in the tank, and always maintain the rated working pressure of fire fighting, and the fixed fire water supply equipment for the fire fighting pipe network.

The most advanced externally mounted PTFE bellows mechanical seal is adopted, which has multi-layer protection and prolongs the service life of the mechanical seal. When conveying the medium containing impurity particles, it can be equipped with single-end hard-to-hard (silicon carbide to silicon carbide) without cooling water. ) mechanical seal, so users need to consider the solid content in the medium when selecting models.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water lift pipe, etc. The specific fire pump model is determined according to the environment and performance requirements, and at the same time According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L

The pump seal of the booster pump adopts a mechanical seal, which has the characteristics of reliable sealing and no leakage. It is usually used for water supply equipment for pressurizing the end of the fire network.
1. The diaphragm tank can be inflated for a long time and used for a long time, which can prevent water pollution.
Second, the equipment occupies a small area and saves investment, and it runs automatically.
Three, fault protection, fault automatic switching.

Fuel tank specifications：200L/ 400L/ 600L/ 800L/ 1000L/
1200L/ 1500L/ 1800L/ 2100L/ 2500L/ 3100L/ 3600L/ 4100L/ 4500L
The diesel fire pump system serves as a backup power solution, utilizing a diesel engine to provide power and ensure the fire pump’s reliable operation during electrical outages. The associated fuel tank is a crucial component for storing diesel fuel and providing a continuous supply to the diesel engine, ensuring a sustained water flow during fire incidents. The system not only boasts reliability but also requires minimal maintenance, backed by comprehensive after-sales service. Whether for large commercial buildings, industrial facilities, airports, or hospitals, this system offers users a dependable firefighting solution to safeguard security.

WQ (QW、WQK ) series submersible sewage pump applicable to transport containing solids and fiber of sewage or clean water.
