Portable Pump

CDL type of stainless steel metal stamping forming vertical multistage centrifugal pump , with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, the use of easy maintenance, and reliable sealing performance.

While the initial investment in firefighting pumps and fire protection infrastructure may represent a significant capital expenditure, the long-term benefits of enhanced fire safety, reduced property damage, and potential savings in insurance premiums outweigh the costs. Cost-benefit analyses and risk assessments help stakeholders make informed decisions about allocating resources to improve fire protection capabilities and mitigate financial risks associated with fire emergencies.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

The vertical turbine fire pump is circulating water pump, and its over-flow medium is sea water. The function is to provide flushing water for the drum-type rotating filter to ensure that impurities and sea creatures can be washed away in time, thus bring clean seawater downstream. It can use with electric motor and also diesel engine.

The electric pump in the picture is ISW pump. ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps. In addition, according to different operation temperatures and mediums, we developed the hot-water pump (ISWR), corrosion-resistant chemical pump (ISWH) and oil pump (ISWB).

UL Fire Pump Motor IP23 meet UL1004-5 standard

Specification
1. Simple structure, reliable performance
2. Small size, light weight
3. Good corrosion resistance, low power consumption
Main features
1.Mechanical seal and packing seal
2.Types of stainless steel: 301, 304, 316L
Application
It is used for drainage of industry, agriculture and city and fire-fighting drainage.
Technology parameter
Flow Q (m3/h): 3.5-400
Head H (m): 3-125
Rotating speed N (r/min): 1450, 2900
Power P (kw): 0.55-90
Model explanation
IS/IR/IH 100 – 80 – 160 A
* IS — clear water centrifugal pump
* IR — heat water centrifugal pump
* IH —chemical centrifugal pump
100 — inlet caliber
80 — outlet caliber
160 — impeller diameter
A — first incision

1. Industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, long-distance transportation, cooling tower water supply, garden sprinkler irrigation, refrigeration flushing, bathroom and other cold and warm water circulation increase Pressure and equipment matching
2. Food, pharmacy, brewing, metallurgy, chemical industry, textile, wood processing, papermaking, high temperature hot water pressurized circulation transportation of boilers in restaurants, bathrooms, hotels, etc. and urban housing heating circulation pumps
3. Petroleum, chemical, metallurgical, electric power, paper, food, pharmaceutical and synthetic fiber sectors
4. Petroleum products such as gasoline, kerosene, diesel
5. Power station water supply and drainage, farmland drainage and irrigation and various water conservancy projects.
6. Pump rooms for key projects, central air-conditioning and scientific research institutions, hospitals, etc.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

This kind of controller was fit for high-voltage motor，which is the voltage of motor is 6000V or 10KV.

including high-voltage switch cabinet, High-pressure solid-state soft starter device,High-voltage reactive power centralized compensation device,direct current cabinet, onsite cabinet, intellengint inspection cabinet, High-voltage patrol inspection contact cabinet, Emergency starting cabinet for high-voltage machinery

The ZWG non-negative pressure water supply equipment is a pressurized water system designed to address low or unstable municipal water pressure in areas with insufficient water supply. This equipment ensures a stable and reliable water supply, particularly suited for high-rise residential buildings and schools. By effectively boosting water pressure, it offers continuous and stable water flow, meeting the domestic water needs of residents and students. The ZWG equipment’s energy-efficient design and advanced control systems contribute to reduced energy consumption, making it an environmentally friendly choice. Overall, the ZWG non-negative pressure water supply equipment is a reliable and essential solution for ensuring a consistent water supply in areas facing water pressure challenges, providing enhanced water pressure and flow to meet the demands of various settings, including high-rise residential buildings and educational institutions.

The multistage pump is a centrifugal pump in and out of the water section and the middle section, through the rod combination together, its output water pressure can be very large, but also depends on the rotation of the impeller to obtain the centrifugal force, so that the material. When the gas density reaches the working range of the mechanical vacuum pump, it is extracted, and the high vacuum is gradually obtained.

In view of its excellent performance and cost performance, single screw pump has gradually been widely used in China in recent years. Its main features are strong adaptability to the medium, stable flow, small pressure pulsation, and high self-priming ability, which cannot be replaced by other pumps. Single screw pump is widely used in petrochemical, environmental protection, exploration and mining, medicine and food, shipbuilding industry, energy industry, papermaking, construction, mining, machinery and other industries.

Fire booster pump is used to maintain system pressure without starting the main pump. These pumps are not designed to keep up with full system demand, their only function is system pressure maintenance.

Quzhou Better Explosion Proof Motor CO.,LTD (Better Ex-proof)is the only onemanufacturer with explosion-proof motors national production license,explosionproof certificate in the West Region of Zhejiang.Created in 2004,mainly producesthree-phase asynchronous motors (Y,Y2,YX3,YE3),as well as special motorsYPT,flameproof three-phase asynchronous motor (YB,YB2,YB3,YBXn),alsoproduces submersible three-phase asynchronous motor YQ.Our company is nowdeveloping a dust explosion-proof three-phase asynchronous motors YFB and soon.Better Ex-proof also customize some non-standard motors for enterprises,forexample,long axis,polygon axis,and stainless steel shaft motors.The annuaoutput is r than 60000 sets.It is well sold around China and long exporteto Russia,alia,America,Canada,New Zealand,South Africa,Mideast.

It can be seen from the working process of the surge tank that if there is no surge tank, because water is an incompressible fluid, a slight change in the amount of water will lead to changes in pressure accumulation. Therefore, whether it is a box-type variable frequency constant pressure water supply equipment or a non-negative pressure water supply equipment, the pressure stabilizer tank is essential.

Non-negative pressure frequency conversion water supply equipment is a new type of water supply equipment developed on the basis of frequency conversion constant pressure water supply equipment.

It is composed of pressure water tank, control cabinet, top pressure gas storage system, decompression release device and other basic components; In the condition of fire fighting, the compressed gas is filled into the pressure water tank to replace the fire fighting water in the tank, and always maintain the rated working pressure of fire fighting, and the fixed fire water supply equipment for the fire fighting pipe network.

Sewage pump is a kind of centrifugal impurity, there are two kinds of submersible and dry. It is mainly used for the treatment of industrial sewage and domestic sewage, and has played a great role in environmental protection. In addition, there are also cutting impellers in the sewage pump, which can play a good role in the treatment of various fibrous substances in the sewage.

The horizontal mixed-flow pump is a kind of shell type single suction pump with one impeller. The reasonable structure makes for reliable operation, convenient maintenance, high efficiency, small volume and light weight.

Submersible sewage pump is suitable for conveying sewage and dirt with particles in chemical industry, petroleum industry, pharmaceutical industry, mining industry, paper industry, cement plant, steel plant, power plant, coal processing industry, urban sewage treatment plant drainage system, municipal engineering, construction site and other industries. It can also be used for pumping clean water and corrosive media.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

Submersible mixer, also known as submersible propeller, is suitable for promoting and stirring sewage containing suspended solids, dilute mud and industrial process liquid in the technological process of sewage treatment plant, creating water flow, strengthening the stirring function and preventing sludge precipitation. It is an important equipment in the technological process of municipal and industrial sewage treatment.

Hygienic and clean to use, high efficiency, low noise, mild corrosion resistance and compact structure, beautiful appearance, small size, light weight, convenient use and maintenance, reliable sealing performance

YCB series multistage centrifugal oil pump is used mainly for petroleum refining, petrochemical and chemical industries to transport the petroleum-containing no solid grains, liquefied petroleum gas, other petroleum products, high-temperature high pressure, combustible and explosive liquids.This horizontal oil pump is an electric pump with explosion-proof device, which can be customized.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

End suction pumps usually have one impeller and a volute type casing. They work when the pumped liquid increases velocity as it moves along the vanes of the impeller; then the liquid moves into the volute casing, where a diffusion process converts the high velocity to high pressure.

The air conditioning pump is a pump designed for sewage. The air-conditioning pump is suitable for the drainage of the polluted condensate with a large specific gravity, and can be used for the drainage of high-temperature and weakly acidic condensate (temperature -46~95℃), and can be used in air-conditioning systems and refrigeration equipment.

Integrated prefabricated pumping station is a comprehensive and innovative technology product tailored to the project requirements and parameters for the collection and transportation of sewage, rainwater and other liquid media. Integrate pumps, pipes, control systems, grid filter systems, lighting systems, maintenance platforms and communication systems into one, and prefabricate them in the factory for pumping stations that lift and transport water media.

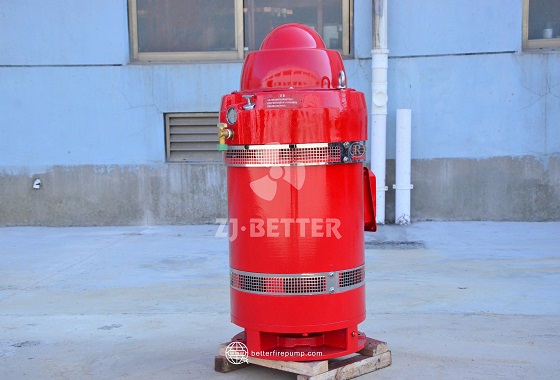

Hollow shaft Motor for vertical turbine pump, which use for vertical turbine pump
