Application of electric fire pumps

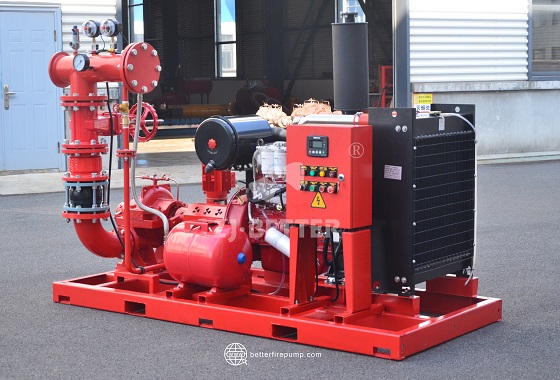

Diesel engine fire pumps have been widely used as fixed fire extinguishing equipment for fire diversion, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply. , fire pump, connection device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, and trailer-type mobile water pump stations. It can be used together with electric fire pumps.

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

Diesel engine fire pump is a kind of fire-fighting equipment that we often see and often use in our life. The diesel engine fire pump has the characteristics of good starting performance, strong overload capacity, compact internal structure, convenient maintenance, simple operation and high degree of automation. It is a very reliable fire fighting equipment.

Applications
1. The fire extinguishing system of enterprises and institutions, construction, high-rise buildings and other fixed fire -fighting system, automatic sprinkler system.
2. High-rise building zoning fire-fighting system, fire and life, production
of common water supply systems and construction, municipal, industrial and mining, boiler feed water and other occasions.
3.Fire water supply and emergency water supply in docks, warehouses,airports, petroleum, chemical industry, power plants, liquefied gas, textiles, ships, oil tankers and other occasions.

Optimization strategies include:

Variable Frequency Drives (VFDs): Implement VFDs to adjust the pump speed based on demand, reducing energy consumption during low-demand periods.
Efficient Pump Selection: Select pumps with high efficiency ratings appropriate for the expected flow and pressure requirements.
Regular Maintenance: Maintain pumps regularly to ensure they operate at peak efficiency, preventing energy losses due to wear and tear.
System Design: Design the fire protection system with minimal friction losses, using appropriate pipe sizes and layouts to reduce the energy required to move water.

Fire pump is one of the fire-fighting equipment, its function is mainly used to transport water or other fire-extinguishing liquid for fire-fighting. Pumping water with equipment such as fire pumps has a very high water delivery efficiency. There are many types of fire pumps, and the air pumping methods of different fire pumps are also different. Sprinklers, fire hydrants, and water cannons and window sprays commonly used in business have the same pump-starting principle, but the fire-fighting linkage principle is different.

1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Jockey pump
2. Suction piping
3. Fire pump
4. Discharge piping
5. Pressure switch
6. Pressure gauge
7. Check valve
8. Control panel
9. Alarm system
10. Bypass valve
11. Priming chamber (if applicable)
12. Backflow preventer (if applicable)

Factors include the building size, height, occupancy type, local fire codes, water supply source, and the required water flow and pressure. A thorough hydraulic analysis is typically performed to determine the appropriate pump size and type.

1. Disconnect the power and turn off the fuel source.

2. Remove any remaining fuel in the pump.

3. Clean the pump with a mild detergent and warm water.

4. Flush the pump with clean water.

5. Grease the bearings and any moving parts of the pump.

6. Reassemble the pump.

7. Reconnect the power and fuel source.

8. Test the pump to ensure it is functioning properly.

The application of electric fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Installing fire pumps requires careful planning and adherence to specific precautions to ensure proper functionality and compliance with safety standards. Here are some important precautions to consider during the installation process:

Compliance with Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations. Ensure that the installation meets the requirements of organizations such as the National Fire Protection Association (NFPA) and local authorities having jurisdiction (AHJs).

Professional Installation: Fire pump installations should be carried out by qualified professionals experienced in fire protection systems. Engage licensed contractors or fire protection engineers who specialize in fire pump installations. They possess the necessary knowledge and expertise to ensure a correct and safe installation.

Proper Location: Choose an appropriate location for the fire pump installation. Consider factors such as accessibility, proximity to water sources, electrical connections, and suitable drainage. The location should allow for easy maintenance and serviceability. Follow the manufacturer’s guidelines regarding clearance requirements and proximity to other equipment.

By following these precautions, you can ensure a safe and effective installation of a fire pump system. Proper installation is critical for the system’s performance, compliance with regulations, and the overall safety of the facility and its occupants. Consult with fire protection professionals and refer to relevant codes and standards throughout the installation process.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Check for air leaks: Inspect suction lines for potential air ingress.
Monitor pressure and flow rate: Ensure system meets design parameters.
Inspect electrical connections: Loose or corroded wires can disrupt pump operation.
Analyze unusual noises or vibrations: May indicate cavitation or worn components.

EDJ fire pump set is composed of diesel engine pump + electric pump + vertical jockey pump. Diesel fire pumps are typically used where there are potential reliability issues with the local power grid, with available flows of 50-5000GPM.

XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment (“equipment” thereafter) developed by this Co. in accordance with GB6245-98 “Performance Requirement and Testing Method of Fire-fighting Pumps” and NFPA20 “Installation of Centrifugal Fire-fighting Pumps” etc. standards and, upon the
fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting. The diesel engine fitted with the equipment is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The equipment is really a fire-fighting one advanced and reliable in performance. The reasonable use and serious maintenance of the fire pump is the most important prerequisite for ensuring the normal and reliable operation of the pump, giving full play to the emergency function and prolonging the service life. In order to make the pump operator familiar with its structural characteristics, grasp the use and maintenance methods, and make good use of the pump, we have prepared this manual for the operator reference

The EDJ （Diesel Pump: XA pump, Electric Pump: XA pump ）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Flow: 30-500GPM
Head: 3-20Bar
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a treatment medium temperature lower than 80 degrees and non-corrosive. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric fire pump set adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump set are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. At the same time According to the material quotation required by the customer, accurate selection is conducive to on-site use and reduces failure problems.

In cold climates, jockey pumps must be designed and installed with specific considerations to prevent freezing and ensure reliable operation. This includes using heat tracing or insulation on piping and pump components exposed to low temperatures to prevent ice formation that could block water flow. Jockey pumps may also be housed in heated enclosures or indoor pump rooms to maintain a consistent temperature around the equipment. Additionally, the selection of antifreeze solutions or special materials resistant to cold temperatures can help protect the pump from damage. Regular monitoring and maintenance are also essential to ensure that the jockey pump remains operational and that the fire protection system is always ready to respond, even in harsh winter conditions.

According to the needs of system operation control and maintenance management, the fire pump electrical control cabinet mainly has the functions of starting and stopping the pump, switching the main and standby pumps, manual automatic switching, dual power switching, inspection, protection, and feedback mechanical emergency start.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

There are four types fire pump, including end suction pump, split case pump, multiage pump and vertical turbine pump. These fire pumps may bepowered by an electric motor or diesel engine and on rare occasion powered by a steam turbine.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
