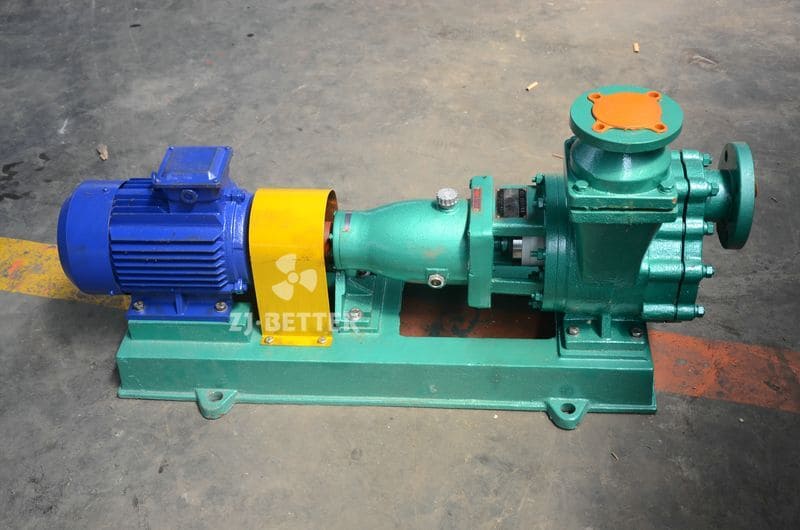

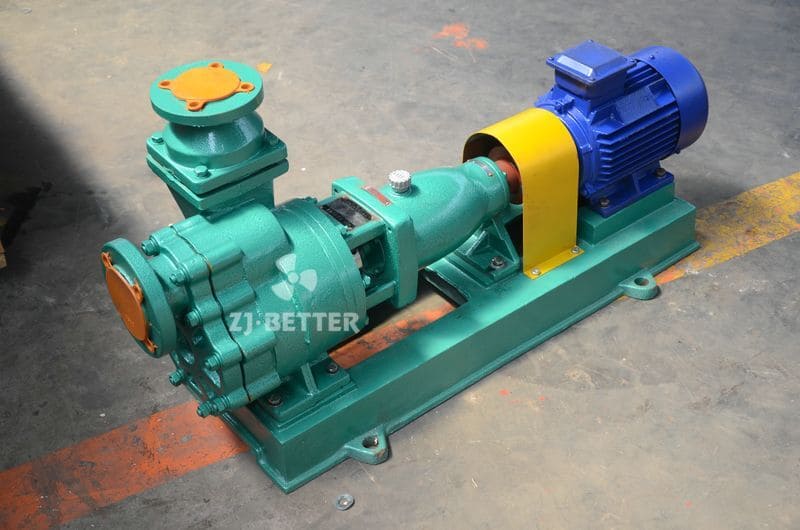

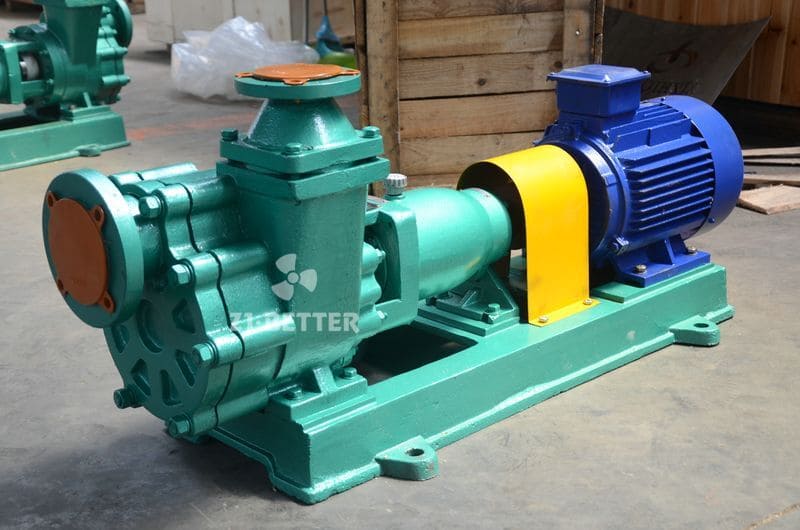

Fluorine alloy centrifugal pump

The suction and discharge ports of the GDL vertical multistage pipeline centrifugal pump are located on the same straight line. The rotor part is composed of shaft, impeller, impeller retaining sleeve, shaft sleeve and other parts, and the water inlet section, middle section and water outlet section are connected by tension bolts. The shaft seal adopts a mechanical seal, lubricated and cooled by the pressure water in the balance chamber. It is an ideal pump type for the transportation of hot and cold water or liquids with similar physical and chemical properties to water in various industries.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

“Fire-fighting gas top-pressure water supply equipment is usually composed of basic components such as air-pressure water tanks, control cabinets, top-pressure gas storage systems, and decompression release devices; in the fire-fighting state, compressed gas is charged into the air-pressure water tank to replace the fire-fighting water storage in the tank. , and always maintain the rated working pressure of fire protection, and the fixed fire water supply equipment that supplies water to the fire pipe network.”

WQ (QW、WQK ) series submersible sewage pump applicable to transport containing solids and fiber of sewage or clean water.

Quzhou Better Explosion Proof Motor CO.,LTD (Better Ex-proof)is the only onemanufacturer with explosion-proof motors national production license,explosionproof certificate in the West Region of Zhejiang.Created in 2004,mainly producesthree-phase asynchronous motors (Y,Y2,YX3,YE3),as well as special motorsYPT,flameproof three-phase asynchronous motor (YB,YB2,YB3,YBXn),alsoproduces submersible three-phase asynchronous motor YQ.Our company is nowdeveloping a dust explosion-proof three-phase asynchronous motors YFB and soon.Better Ex-proof also customize some non-standard motors for enterprises,forexample,long axis,polygon axis,and stainless steel shaft motors.The annuaoutput is r than 60000 sets.It is well sold around China and long exporteto Russia,alia,America,Canada,New Zealand,South Africa,Mideast.

The equipment through the back curved impeller will be liquid forward at the same time, the sludge in the oxidation tank to fully stir and mix, to improve the oxidation tank and other sewage treatment facilities water flow conditions, so that different water to obtain the sewage treatment process required by the flow rate, in order to prevent sludge settlement, improve the efficiency of sewage treatment.

Self priming pump diesel engine driven works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F). It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.

The multistage fire pump consists of two parts: the motor and the pump, and the motor and the pump are coaxial. The structure of the pump consists of pump body, impeller, pump cover, mechanical seal and so on. The inlet and outlet of the pump are on the same horizontal axis and have the same caliber specification, so the loading and unloading is very convenient, and the floor space is small. The pump is fitted with a base for easy installation and increased pump stability. It is used to transport clear water without solid particles, liquids with physical and chemical properties similar to water. It is mainly used for pressurized water delivery in fire-fighting system pipelines, and is also suitable for industrial and urban water supply and drainage.

Significant energy saving, small footprint, easy installation and stable performance.
The jacket is made of 304 high-quality stainless steel, and the shaft seal is made of wear-resistant mechanical seal, which has no leakage and long service life.
The axial force is solved by hydraulic balance, so the operation is stable and the noise is low.

ISG series vertical single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly vertical centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps. In addition, according to different operation temperatures and mediums, we developed the hot-water pump (IRG), corrosion-resistant chemical pump (IHG) and oil pump (YG). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

XBD-S fire pump is a horizontal split structure type. The suction port and the discharge port are below the axis of the pump, and the horizontal direction is perpendicular to the axis. The pump of this structure type does not need to disassemble the inlet and outlet pipes during maintenance. Installation and maintenance is very convenient. The rotor as a whole
The combined parts can be hoisted as a whole for easy maintenance, and the same rotor part can be used for reverse rotation. The bearings at both ends are made of high-precision imported deep groove ball bearings, which have smooth operation, low noise and long service life.
Shaft seals are available in two types: mechanical seals or packing seals, and users can choose by themselves.

The ZWG non-negative pressure water supply equipment is a pressurized water system designed to address low or unstable municipal water pressure in areas with insufficient water supply. This equipment ensures a stable and reliable water supply, particularly suited for high-rise residential buildings and schools. By effectively boosting water pressure, it offers continuous and stable water flow, meeting the domestic water needs of residents and students. The ZWG equipment’s energy-efficient design and advanced control systems contribute to reduced energy consumption, making it an environmentally friendly choice. Overall, the ZWG non-negative pressure water supply equipment is a reliable and essential solution for ensuring a consistent water supply in areas facing water pressure challenges, providing enhanced water pressure and flow to meet the demands of various settings, including high-rise residential buildings and educational institutions.

Submersible mixer, also known as submersible thruster, is suitable for promoting and stirring sewage containing suspended solids, thin mud, industrial process liquid, etc. in the process of sewage treatment plant, creating water flow, strengthening stirring function, and preventing sludge precipitation. It is municipal and industrial sewage. Important equipment in the processing process. Divided into mixing submersible mixer, low speed submersible propeller mixer.

XBD-S fire pump set is mainly used for pressurized water supply in fire protection system, and also suitable for water supply, irrigation, drainage pumping station, power station, air-conditioning circulating water, industrial water supply system, fire protection system, shipping industry, oil refining system, mining, etc. When transporting liquids.

It suitable for factory business seriously polluted wastewater emissions, residential sewage PaiWuZhan, urban sewage treatment plant drainage systems, air-defense drainage station, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries, sewage containing particles, dirt, Can also be used for clean water and with weak corrosive media.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency.

Flow: 50~2000gpm
Head:≤169m
Speed:1500rpm~3550 rpm

The high-efficiency non-clogging submerged sewage pump is a new generation of pump products successfully developed on the basis of the introduction of foreign advanced technology and combined with the use characteristics of domestic water pumps. Features. It has a unique effect in discharging solid particles and long-fiber waste.

Horizontal multi-stage pump is a kind of drainage pump, which is suitable for water supply and drainage in mines, factories and cities. It is used to transport clear water without solid particles or liquids with physical and chemical properties similar to clear water. The temperature of the medium being transported is 0 °C. ～80℃, the allowable inlet pressure is 0.6MPa.

Integrated Prefabricated Pump Station

The pump station is supplied as an integrated unit. It includes a pump station cylinder, pressure pipeline, maintenance platform, maintenance ladder, grill filter, coupling system, pump lifting system, ventilation, anti-skid manhole cover, lighting system, etc.

According to CFO fluid dynamics finite element analysis, the base structure is optimized to prevent sludge deposition in sewage treatment and no odor residue.

All internal installation and commissioning work is completed in the factory. The pump station is only installed on the site, which greatly reduces the civil construction period and engineering cost, and reduces the overall investment of the owner.

The pumping station cylinder is made of FRP, and the internal fittings are made of anti-corrosion materials such as SUS304 and hot-dip galvanizing. No maintenance is required, and the normal service life can reach more than seven years.

Intelligent operating system, easy to understand, to run, monitoring without personnel supervision

Welcome your inquiry!

The ZWX box-type non-negative pressure water supply equipment is a pressurized water system designed to address inadequate municipal water pressure in critical settings such as hospitals and hotels, where water cannot be shut off. It also serves as an ideal solution for meeting the domestic water needs of high-rise buildings and, specifically, fulfilling the water requirements of schools. This equipment ensures a continuous water supply, even during maintenance or emergency situations, effectively resolving the challenges posed by low water pressure. With its efficient pressurized water supply and advanced control technology, the ZWX equipment offers stable water pressure and flow rates, catering to the diverse demands of different settings.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water lift pipe, etc. The specific fire pump model is determined according to the environment and performance requirements, and at the same time According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

Municipal – flood control and irrigation, drought relief, manhole drainage, sewage sludge drainage, emergency repair drainage, no power supply and drainage.

Military – field water supply system, island freshwater collection system.

Agriculture – irrigation and drainage systems, cofferdam pumping, alternative stormwater pumping stations, temporary water transfer, areas without fixed pumping stations and without electricity.

The SXBWP Non-Negative Pressure Frequency-conversion Water Supply Equipment offers a comprehensive solution for addressing low water pressure challenges in various settings. Designed to cater to areas with inadequate municipal water pressure, as well as residential complexes, office buildings, hotels, schools, and industrial enterprises, this equipment ensures a stable secondary pressurized water supply. With features such as non-negative pressure generation, water and energy conservation, prevention of secondary pollution, and convenient installation, the SXBWP equipment delivers reliable water pressure enhancement while promoting efficient water usage and minimizing environmental impact.

The special hydraulic design and structural design make it more suitable for building fire-fighting water supply system with flow and pressure grading than ordinary centrifugal clean water pumps, and the flow-pressure characteristic curve is flat and has no hump. All parts of the friction parts due to rotation are made of wear-resistant, corrosion-resistant and anti-meshing materials, which have high reliability. The multi-stage pump can be equipped with double water outlets, which has high bearing capacity, strong anti-overload capacity and sensitive starting. .

Small frequency conversion water supply equipment is a kind of equipment developed under the support of frequency conversion speed regulation system and frequency conversion technology. Its application in water supply equipment management shows good economy and environmental protection. Life and production play a very important role.

The gasoline engine water pump is a centrifugal pump composed of a water pump and a bracket. It has the advantages of low cost, light weight, convenient maintenance, low manufacturing cost and low noise.

WXZQ series fire pneumatic water supply equipment is composed of fire pressure stabilizing device, fire pump
and electric control system. As a complete set of equipment, it can meet all technical specifications of automatic
fire water supply. In addition, it can accept and process all kinds of fire signals, replace the fire control center,
and send out all kinds of operation and fault alarm signals.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L/3600L/4100L/4500L
