The Solution for High-Pressure Water Delivery – Technical Advantages of Horizontal Split Case Fire Pumps
Horizontal split case fire pump with double suction design offers high flow, stable performance, and easy maintenance, ideal for firefighting systems in high-rise buildings, petrochemical plants, and power stations.
In modern construction, energy, petrochemical industries, and municipal water systems, the demand for high-flow, high-head, and reliable continuous water supply makes the selection of a high-performance fire pump a decisive factor in system design. The horizontal split case fire pump—also known as a double suction pump—has become an irreplaceable solution in large-scale projects due to its superior hydraulic performance, structural stability, and operational efficiency.

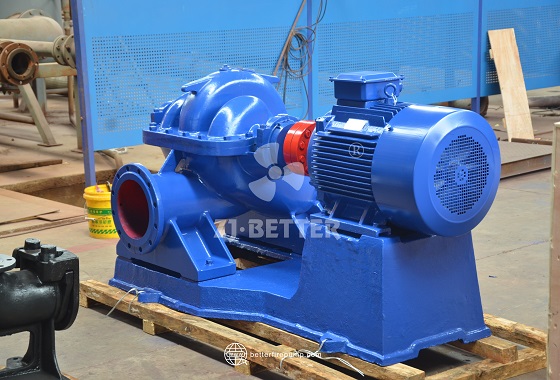

The horizontal split case fire pump adopts a symmetrically arranged double-suction impeller design, with a horizontal shaft layout that allows water to enter from both sides of the impeller simultaneously. This effectively reduces radial force on the shaft, significantly improving operational stability and bearing service life. This design minimizes vibration and noise under high-flow conditions and is easy to maintain, especially suited for applications requiring long continuous operation or regular maintenance.
Typically driven by a high-power electric motor, this pump conforms to NFPA20 standards and supports customization in terms of flow rate, head, inlet/outlet dimensions, and connection methods. Its split-case structure enables convenient maintenance—users can inspect or replace the impeller, seal, and bearings simply by opening the pump cover, without dismantling the motor or pipework—greatly reducing both maintenance time and cost.
The pump’s sealing design is also specially optimized for firefighting use. It adopts mechanical or gland packing seals that effectively prevent leakage, ensuring airtight and watertight integrity during emergency operations. The pump casing and flow-passage components are made of high-strength cast iron or stainless steel, offering excellent corrosion resistance and mechanical durability, suitable for harsh conditions such as high temperature, chlorinated water, or seawater environments.
In actual fire protection systems, the horizontal split case fire pump is commonly used as the main pump, integrated with jockey pumps, diesel engines, and control panels into complete fire pump systems. These are widely deployed in high-rise buildings, urban complexes, power plants, oil depots, docks, and large logistics warehouses. When a fire emergency occurs, the system can be activated instantly, delivering powerful water pressure to sprinkler and hydrant networks.
In summary, horizontal split case fire pumps stand out as the ideal equipment for high-pressure water delivery and complex system demands. With features like high efficiency, large flow capacity, stable operation, and easy maintenance, this pump type enhances the overall safety and responsiveness of fire protection systems while reducing operational costs throughout its service life.
