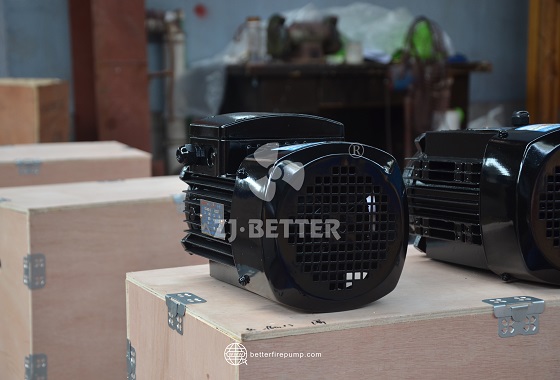

Whisper-Quiet Operation with Powerful Drive: The Upgraded Fire Pump Motor

Small frequency conversion water supply equipment is a kind of equipment developed under the support of frequency conversion speed regulation system and frequency conversion technology. Its application in water supply equipment management shows good economy and environmental protection. Life and production play a very important role.

The box-type integrated pump station is composed of stainless steel water tank, special water pump, intelligent frequency conversion control cabinet, non-negative pressure device, booster device, water diversion device and pressure stabilizer tank. The electromechanical integrated water supply equipment meets the requirements of the urban water supply pipe network, which does not generate negative pressure when pumping water, but also has a certain ability to adjust and store water, and the water is continuously cut off during peak periods.

The workers from Better Technology Group are installing pump station outside

XBD-S fire pump set is mainly used for pressurized water supply in fire protection system, and also suitable for water supply, irrigation, drainage pumping station, power station, air-conditioning circulating water, industrial water supply system, fire protection system, shipping industry, oil refining system, mining, etc. When transporting liquids.

ISWR horizontal single-stage single-suction hot-water pump is to be used in metallurgy, chemical industry, textile, timber-processing, paper making, pressure circulating conveyance of boiler hot water in hotels, bathrooms or restaurants, and circulated heating pumps in city houses. Its operation temperature is below 99C.

The sewage pump is a kind of centrifugal impurity and has many forms: such as submersible type and dry type. At present, the most common submersible type is the WQ type submersible sewage pump, and the most common dry type sewage pump is the W type horizontal sewage pump. And two types of WL vertical sewage pump. Mainly used to transport urban sewage, manure or liquid containing fiber. For the medium of solid particles such as paper scraps, the temperature of the conveyed medium is usually not greater than 80¡ãC.

Widely used in water supply and drainage of industry and city, pressurized water supply of high-rise buildings, irrigation of gardens, fire-fighting pressurization and relevant equipments. This series have many advantages, such as wide range of performance parameters, convenient installation, little vibration, low noise, high efficiency, long service life and so on, very popular with users.

Specification: PHYM100/20、PHYM100/30、PHYM100/40、PHYM100/50、PHYM100/60、PHYM100/70、PHYM100/80、PHYM100/90、PHYM100/100

It suitable for factory business seriously polluted wastewater emissions, residential sewage PaiWuZhan, urban sewage treatment plant drainage systems, air-defense drainage station, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries, sewage containing particles, dirt, Can also be used for clean water and with weak corrosive media.

XBD-S fire pump is a horizontal split structure type. The suction port and the discharge port are below the axis of the pump, and the horizontal direction is perpendicular to the axis. The pump of this structure type does not need to disassemble the inlet and outlet pipes during maintenance. Installation and maintenance is very convenient. The rotor as a whole
The combined parts can be hoisted as a whole for easy maintenance, and the same rotor part can be used for reverse rotation. The bearings at both ends are made of high-precision imported deep groove ball bearings, which have smooth operation, low noise and long service life.
Shaft seals are available in two types: mechanical seals or packing seals, and users can choose by themselves.

The most advanced externally mounted PTFE bellows mechanical seal is adopted, which has multi-layer protection and prolongs the service life of the mechanical seal. When conveying the medium containing impurity particles, it can be equipped with single-end hard-to-hard (silicon carbide to silicon carbide) without cooling water. ) mechanical seal, so users need to consider the solid content in the medium when selecting models.

CDL type of stainless steel metal stamping forming vertical multistage centrifugal pump , with the use of health clean, high efficiency, low noise, resistance to mildly corrosive and compact structure, beautiful appearance, small size, light weight, the use of easy maintenance, and reliable sealing performance.

The pump’s performance range: flow 130-9000m3/h, head 3.5-22m. Simple structure, reliable use, easy
installation, high efficiency, small body, light weight.

The fire control cabinet is widely used in many high-rise buildings without tower water supply, fire deep well pump constant pressure water supply and other occasions. When the equipment fails, it can cut off the circuit or alarm with the help of protective electrical appliances, and play the role of warning and protective electrical appliances.

The SXBWP Non-Negative Pressure Frequency-conversion Water Supply Equipment offers a comprehensive solution for addressing low water pressure challenges in various settings. Designed to cater to areas with inadequate municipal water pressure, as well as residential complexes, office buildings, hotels, schools, and industrial enterprises, this equipment ensures a stable secondary pressurized water supply. With features such as non-negative pressure generation, water and energy conservation, prevention of secondary pollution, and convenient installation, the SXBWP equipment delivers reliable water pressure enhancement while promoting efficient water usage and minimizing environmental impact.

Horizontal multi-stage pump is a kind of drainage pump, which is suitable for water supply and drainage in mines, factories and cities. It is used to transport clear water without solid particles or liquids with physical and chemical properties similar to clear water. The temperature of the medium being transported is 0 °C. ～80℃, the allowable inlet pressure is 0.6MPa.

Specification
1. Simple structure, reliable performance
2. Small size, light weight
3. Good corrosion resistance, low power consumption
Main features
1.Mechanical seal and packing seal
2.Types of stainless steel: 301, 304, 316L
Application
It is used for drainage of industry, agriculture and city and fire-fighting drainage.
Technology parameter
Flow Q (m3/h): 3.5-400
Head H (m): 3-125
Rotating speed N (r/min): 1450, 2900
Power P (kw): 0.55-90
Model explanation
IS/IR/IH 100 – 80 – 160 A
* IS — clear water centrifugal pump
* IR — heat water centrifugal pump
* IH —chemical centrifugal pump
100 — inlet caliber
80 — outlet caliber
160 — impeller diameter
A — first incision

Centrifugal pump is designed according to the principle of centrifugal force. The high-speed rotating impeller blade drives the water to rotate and the water is thrown out, so as to achieve the purpose of transportation

High-performance fire pressure tanks designed for high-rise buildings, industrial plants, and underground garages. Ensures rapid initial water supply and stable pressure in fire protection systems. Features automated control, remote monitoring, and improved fire response reliability.

Our company now has sophisticated technology equipment, top detection equipment, perfect supporting facilities, further improving the product quality. In order to enhance the brand effect, improve the company system, after the discussion of our company and the suggestion from customers, we have been gradually changing the packaging of our pumps. Our original packaging is fixed by iron wire.
But now, we use screw to fasten the products, to fix the product and the base.
In this way, even for long time transport, the products will be more safe and it will be more convenient and better for the customers.

Fuel tank specifications：200L/400L/600L/800L/1000L/1200L/1500L/1800L/2100L/2500L/3100L
The diesel fire pump system serves as a backup power solution, utilizing a diesel engine to provide power and ensure the fire pump’s reliable operation during electrical outages. The associated fuel tank is a crucial component for storing diesel fuel and providing a continuous supply to the diesel engine, ensuring a sustained water flow during fire incidents. The system not only boasts reliability but also requires minimal maintenance, backed by comprehensive after-sales service. Whether for large commercial buildings, industrial facilities, airports, or hospitals, this system offers users a dependable firefighting solution to safeguard security.

The air conditioning pump system is an indispensable part of modern HVAC systems, regulating the temperature within a building by circulating hot or cold water, providing a comfortable indoor environment. This article delves into the product features of air conditioning pump systems, helping you understand their significance and how to optimize the heating, ventilation, and air conditioning efficiency of your building.

This compact foam fire pump offers efficient and stable fluid delivery with precise foam proportioning, ideal for demanding applications such as petrochemical plants, airports, and warehouses. Built with wear- and corrosion-resistant materials, it ensures reliable performance, easy maintenance, and long-term durability.

Applitions:
Water works: Water intake/Water supply/Booster
Industrial use: Water intake/Water supply/Booster/Circulation/
Drainage/Chemical/Re-finery/Firefighting/Sea water desalination
Agricultural use: Irrigation and Drainage

The fire water supply pressure booster pump complete sets of equipment is the equipment for the firefighting project. The main function is to maintain the firefighting pressure of the fire extinguishing pipe network. When a fire alarm is opened, the fire extinguishing equipment can immediately spray the solid water column, and the alarm linkage starts the large fire pump. Win the initial fire extinguishing time of more than 30 seconds until the full load of the fire main pump is started. Because the equipment can maintain the pressure of the pipe network at all times, the pipe network does not have air to start. The fire pump does not slam, the pipe network has no risk of vibration.

Suitable for use with clean water. For Fire hydrant water supply, sprinkler system, fire system voltage regulator.

Air conditioning pump is a pump designed for sewage discharge. Air conditioning pump is suitable for heavy, polluted condensate drainage needs, can be used for high temperature and weak acid condensate removal (temperature -46~95℃), can be used in air conditioning system and refrigeration equipment.

Regular maintenance includes checking for leaks, ensuring all components are clean and in good working condition, and verifying the accuracy of the foam proportioning.

Submersible sewage pump is a submersible sewage pump, especially suitable for conveying liquids containing hard solids, fibers and especially dirty, sticky, slippery liquids.

Starting mode
* Direct online <15kw * Y-△ voltage reduction startup 15kw~75kw (don’t adapt to submersible sewage pump control equipment) * Self-coupling voltage reduction startup >15kw (adapt to submersible sewage pump)
* Soft starter startup >15kw
Control mode
Y — automatically control the start and stop of the pump according to the height of the liquid
P — automatically controls the start and stop of the pump according to the pressure. Used in life and fire water supply and drainage pressurization system
T — Control the start and stop of the pump according to the set-up temperature. Used for constant temperature and heat exchange system
