Comprehensive Reliability: Intelligent Management and Maintenance Benefits of Electric-Driven Fire Pumps

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

With its full seal, no leakage, and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is an ideal pump for building non-leakage, non-pollution civilized workshops and civilized factories.

With the continuous development of society, people have higher requirements for the quality of life, and the safety of diesel engine fire pumps is more important. All places need to be equipped with fire-fighting facilities, and fire pumps are water intake equipment for fire-fighting facilities. A fire pump Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps need power system supply. In the event of a power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

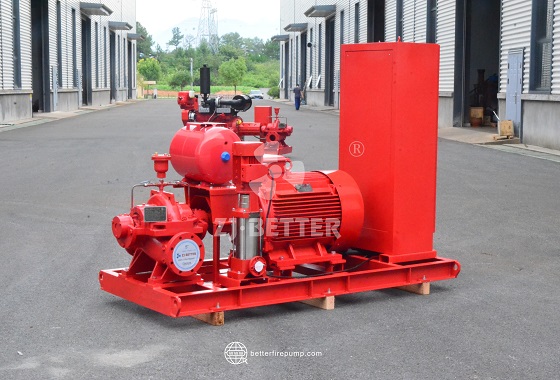

Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

In fire protection systems that include fire hydrants, jockey pumps play a key role in maintaining the necessary system pressure to ensure hydrants are immediately ready for use. Fire hydrants are typically located throughout a property or a city to provide easy access to water for firefighting efforts. The jockey pump helps maintain a consistent pressure in the piping network that supplies these hydrants, ensuring they are always charged and ready to deliver water when a firefighter opens them. This is especially important in systems with extensive piping networks, where pressure fluctuations could occur due to minor leaks, thermal expansion, or water usage. By keeping the system pressurized, jockey pumps help ensure a rapid response during a fire emergency, providing critical support to firefighting operations.

Zhejiang Better Technology Group Co., Ltd. mainly produces various industrial pumps, electric motor fire pumps, diesel engine fire pumps, fire-fighting special water supply equipment, fire-fighting dual-power water supply equipment, general-purpose fire-fighting gas top pressure water supply equipment, fire pump control cabinets, fire-fighting frequency conversion automatic Inspection cabinets, fire protection dual power supply cabinets, submersible sewage pumps, pipeline pumps, chemical pumps, oil pumps, slurry pumps, vacuum pumps and complete sets of vacuum equipment, non-negative pressure water supply equipment, frequency conversion constant pressure water supply equipment and water tanks of various materials, fire protection, Domestic pump room control cabinets, etc., products are widely used in agriculture, machinery, chemical industry, papermaking, medicine, food, sugar, electronics, metallurgy, ceramics, water diversion, printing and dyeing, building materials and other fields.

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance.

EEDJ fire pump set consists of two electric pumps + diesel pump + jockey pump, which is manufactured according to customer requirements. All fire pumps use ISW pumps. The advantages of this fire pump set are easy installation, high cost performance, and suitable for any fire fighting. In emergency situations, it is equipped with a diesel engine pump, which can run even when the power is cut off.

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

Yes, various national and local codes and standards, such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), provide guidelines for the installation, operation, and maintenance of fire pumps.

1. Choose a fire pump with good performance and reliable quality.

2. The fire pump should be suitable for the working pressure and flow rate required by the fire fighting system.

3. Pay attention to the safety performance, reliability and stability of the fire pump.

4. Check whether the fire pump meets the requirements of the relevant national standards.

5. Pay attention to the after-sales service of the fire pump manufacturer.

6. Consider the cost performance of the fire pump.

7. Choose a fire pump from a qualified manufacturer.

The products are packed in wooden cases, which are light in weight, whole core, frosted and formaldehyde free. Shipping remark can be made for free. Good packaging is the quality guarantee during the transportation of products.

In fire protection systems, maintaining a stable and continuous water supply is crucial for effective fire response. The diesel engine fire pump set shown in the image is specifically designed to enhance system reliability, making it an ideal choice for high-rise buildings, industrial facilities, and commercial premises.

This pump set is powered by a high-performance diesel engine with independent energy capabilities, ensuring continuous operation even during power outages. This feature significantly improves emergency response capability, providing essential time for fire suppression.

Additionally, the pump set is equipped with an intelligent automatic start system. When a drop in water pressure or a fire signal is detected, the diesel engine activates promptly, ensuring the fire suppression system can operate without delay. The control panel displays key data, including water pressure and engine speed, for real-time monitoring and easy operation.

The pump set also features a modular, compact design that simplifies installation and saves space. Key components are made from high-temperature-resistant and corrosion-proof materials, allowing the system to perform reliably in harsh environments and extending its operational lifespan.

In summary, this diesel engine fire pump set, with its powerful output, smart control features, and highly reliable backup system, enhances fire safety by ensuring optimal emergency response capability in any unexpected situation.

Check for air leaks: Inspect suction lines for potential air ingress.
Monitor pressure and flow rate: Ensure system meets design parameters.
Inspect electrical connections: Loose or corroded wires can disrupt pump operation.
Analyze unusual noises or vibrations: May indicate cavitation or worn components.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Horizontal multistage fire pump is the latest energy-saving series product developed and produced. It has significant advantages such as high efficiency, low operating noise, good anti-cavitation performance, reasonable structure and long service life. It is used for conveying clean water without solid particles and liquids with physical and chemical properties similar to water. Fire pumps are mainly used for pressurized water supply in fire protection systems, and can also be used in factory and mine water supply and drainage, high-rise building pressurized water supply, long-distance water supply, and heating. , bathroom, boiler hot and cold water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

EJ fire pump is composed of electric pump + jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc. The pump set is deeply loved by domestic and foreign customers.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

Prior to installation, fire sprinkler systems are hydraulically calculated to ensure adequate water flow and that the system can reliably suppress a fire until fire crews arrive. When it is determined that there is insufficient flow from a municipal supply for the system to function properly, a fire pump is installed. The fire pump activates when the sprinkler system pressure falls below a certain threshold as a result of sprinkler head operation. To maintain the required operating pressure of the sprinkler system, the fire pump draws additional water from the municipal water supply or on-site storage tanks. Due to the size of piping systems and pressure loss, fire pumps are frequently required in high rise construction and large area buildings.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

In today’s era of sustainable building development, an energy-efficient fire protection system has become crucial for safety. Our new integrated electric booster pump combines a high-efficiency electric motor, precision pump, and smart control cabinet, all optimized to achieve the perfect balance between energy saving and stable water supply. This unit not only offers rapid startup and accurate pressure regulation but also significantly reduces energy consumption and operational costs while ensuring continuous fire protection, meeting the modern requirements for green and safe buildings.

Designed with modular construction for easy installation and maintenance, the product uses high-grade corrosion-resistant materials and advanced sealing technology to maintain reliable performance in various extreme conditions. Standardized design and international certifications ensure its broad applicability and dependability in high-rise buildings, commercial complexes, and industrial facilities. Choosing our electric booster pump not only provides robust technical support for emergency fire protection but also drives the intelligent upgrade of green building fire systems, contributing to a sustainable, secure, and environmentally friendly future.

1.Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan
3.Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump, this jockey pump is optional
4.Control panel: Auto Control for all pumps with overload, over current protection.
5.Accessories: valves, pressure vessel, Pressure Gauge, Pressure Sensor, Common Base plant

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

The function of the diesel fire pump is very powerful. We can set the control time during use, and it can be automatically charged, automatically started, as well as automatic alarm and automatic preheating functions. It is very reliable to use.

Diesel engine fire pumps are suitable for use in fire water supply environments with high head and high flow rate or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so diesel engine fire pumps are favored.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Spectrum range: fire pump can use a single-stage end suction pump,a combination of multistage single-suction pumps, single-stage double-suction pumps and other kinds of pumps, pump or more kinds of parallel flow, wide pressure range.
Automatically. when the engine fire pump receives a valid signal fire, remote control start signal when the unit will start automatically; when the fire pump motor supply failure or lack of signal phase, the unit will automatically standby. Diesel fire pump start 10s, if not start running, stop 10s, and then restart. The unit will automaticaly repeat three times.
Alarm System: repeatedly failed to start alarm, low diesel engine oil pressure alarm, ultra-high temperature alarm diesel engine, diesel engine speed alarm, low battery alarm, charging failure alarm, an alarm indicating a lack of fuel.
kinds of ways to start signal fire started, manually start or remote start.
