Electric fire pump set is easy to operate and maintain

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

1150LPM@60M Fire Pump Package Set For Your Reference

120≤ Q≤1000GPM
H＜150m
Electric pump + Diesel engine pump + Jockey pump
Pump – Horizontal end suction pump

The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability. Elevate your fire safety standards with this powerful solution and gain peace of mind knowing that your property and lives are protected. Choose the Outdoor Fire Pump Set and experience the ultimate fire protection solution.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Smart integration diesel fire pump unit with rapid start, strong water supply and intelligent control—ideal emergency solution for industrial fire protection.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.​​

50gpm 8bar ED fire pump product process

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven pump and electric motor driven jockey pumps that supply for fire suppression systems.

Fire pumps are water intake equipment for fire facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power system supply. In the event of a power failure, the diesel engine fire pump can start at any time to compensate for the original position of the electric fire pump.

There are four types fire pump, including end suction pump, split case pump, multiage pump and vertical turbine pump. These fire pumps may bepowered by an electric motor or diesel engine and on rare occasion powered by a steam turbine.

Fire pump equipment has the characteristics of mature technology, high degree of automation, protection function, reasonable structure and easy installation. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into fire pump, industrial emergency pump, agricultural pump and other application series, can be linked with the electric fire pump switch use.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

In general, the equipment is designed to have one duty and one standby function. The main pump runs normally, and the standby pump starts automatically after the main pump fault . The Jockey pump will start and stop based on the pipe pressure, when the electric pump malfunction or mains power, control cabinet will receive signals from the electric contact pressure gauges and start the diesel engine pump in 5 seconds, and achieve the rated conditions in 20 seconds, ensure the normal conduct of fire fighting work.

EDJ2500gpm@10bar
Pump test well, can match the rated flow and head
EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pump model of the electric pump and the diesel engine pump are all OTS split case pumps, and the jockey pump is a CDL pump. The three pumps are automatically switched, and can work even if the power is cut off. It adopts high-quality bearings and wear-resistant packing seals.

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

Fire pump set manufactured by Better Technology CO., LTD. In accordance with the Chinese national standard GB27898.5-2011 fixed fire water supply equipment part 5 “fire double power water supply equipment” hereinafter referred to as “packaged fire pump”, “ Fire Pump Set” or “fire pump packages” and National Fire Protection Association’s NFPA20 “Standard for the Installation of Stationary Pumps for Fire Protection”(2016). and meet the latest Chinese national standard CCCF certification requirements and obtain a certificate. Fire pump package is one of the reliable products in fire water supply equipment.
The minimum fire rated working pressure of fire pump package is 0.3MPa, and the minimum fire rated working flow is 2L/S. The fire pump package includes at least two types of motor pump sets, engine pump sets, jockey pump sets, diaphragm pressure tanks, pipes, valves, electrical control systems, control sensors and other related accessories driven by the power source. Fire water supply equipment continuously supplies water to the fire pipe network. The reasonable layout, the firm installation, the reliable connection, the compact and tidy structure, and convenient for maintenance and overhaul.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

This fire pump is built with high-strength materials and precision manufacturing to ensure stable operation under high-pressure conditions. Its advanced hydraulic design minimizes energy loss, enhancing pump efficiency and pressure output. Additionally, it features a high-performance sealing system that effectively prevents leaks, extending the equipment’s lifespan. Moreover, the pump unit is equipped with an intelligent monitoring system that continuously tracks operational status and adjusts parameters in real time, ensuring a stable and reliable water supply when it matters most.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The fire pump is usually equipped with a local control cabinet. The control cabinet does not have a transfer control switch for automatic and manual conversion, but the automatic control loop leaves start and stop contacts, which are connected to the fire alarm system control module. In addition, according to the relevant regulations, the system using the bus linkage control should also be set in the fire control room with buttons that can directly start and stop the pump. When the fire alarm system receives the signal of the fire hydrant start pump button, the control module automatically starts the fire pump and collects its feedback signal.

Better Technology Group Co., Ltd. is a manufacturer specializing in 3CF products such as fire pumps, XBD fire pumps, diesel engine fire pumps, diesel engine water pumps, diesel engine self-priming pumps, fire pump control cabinets, and fire-fighting gas top pressure equipment. Pressure equipment fire water supply equipment, diesel engine fire pump group, submersible fire pump, non-negative pressure water supply equipment, fire water supply equipment, submersible sewage pump, self-priming sewage pump, WQ non-clogging sewage pump, ISG, IRG, IHG, ISGD series Vertical pipeline pump, ISW, ISWD series horizontal centrifugal pump, DL type vertical multistage pump, GDL type detachable pipeline multistage pump, fire pump, LG demountable high-rise building water supply multistage pump, frequency conversion water supply equipment, etc. . Better Technology Group Co., Ltd. is looking forward to your visit!

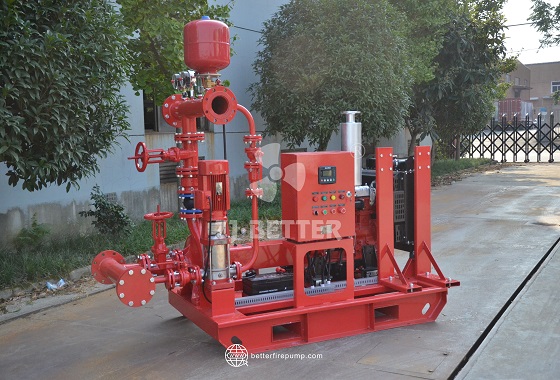

ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Caliber: 25-800mm
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
5.Speed: 740-2900r/min
6.Material: HT200，SS304，Bronze
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

If the fire pump is corroded, it should be inspected by a qualified professional. Depending on the extent of the corrosion, the pump may need to be repaired or replaced. The professional may also need to inspect the entire system for any other potential issues. In some cases, a fire pump may need to be replaced if the corrosion is severe and cannot be repaired.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.
