Types of Vertical Multistage Pump

IRG series vertical hot water pump are designed according to the unique structure of pipe centrifugal pump.These series pump adopt the advanced fluid model optimized by pump experts. So the pumps have high efficiency and reliability. Some units and components have exported to internal markets and gained good comments from both domestic and oversea clients.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, impeller, pump shaft, bearing, coupling, sealing form, water lift pipe, etc. The specific fire pump model is determined according to the environment and performance requirements, and at the same time According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

By reason that the axial pump can run in the water,axial pumps is helpful for simplifying the earth work and building engineering of pumping station, reducing installation area, and saving 30~40% of project total price. For integration of water pump and motor,axial pumps is unwanted to perform axis-to-center assembly procedure on site, very convenient and expeditious to install.

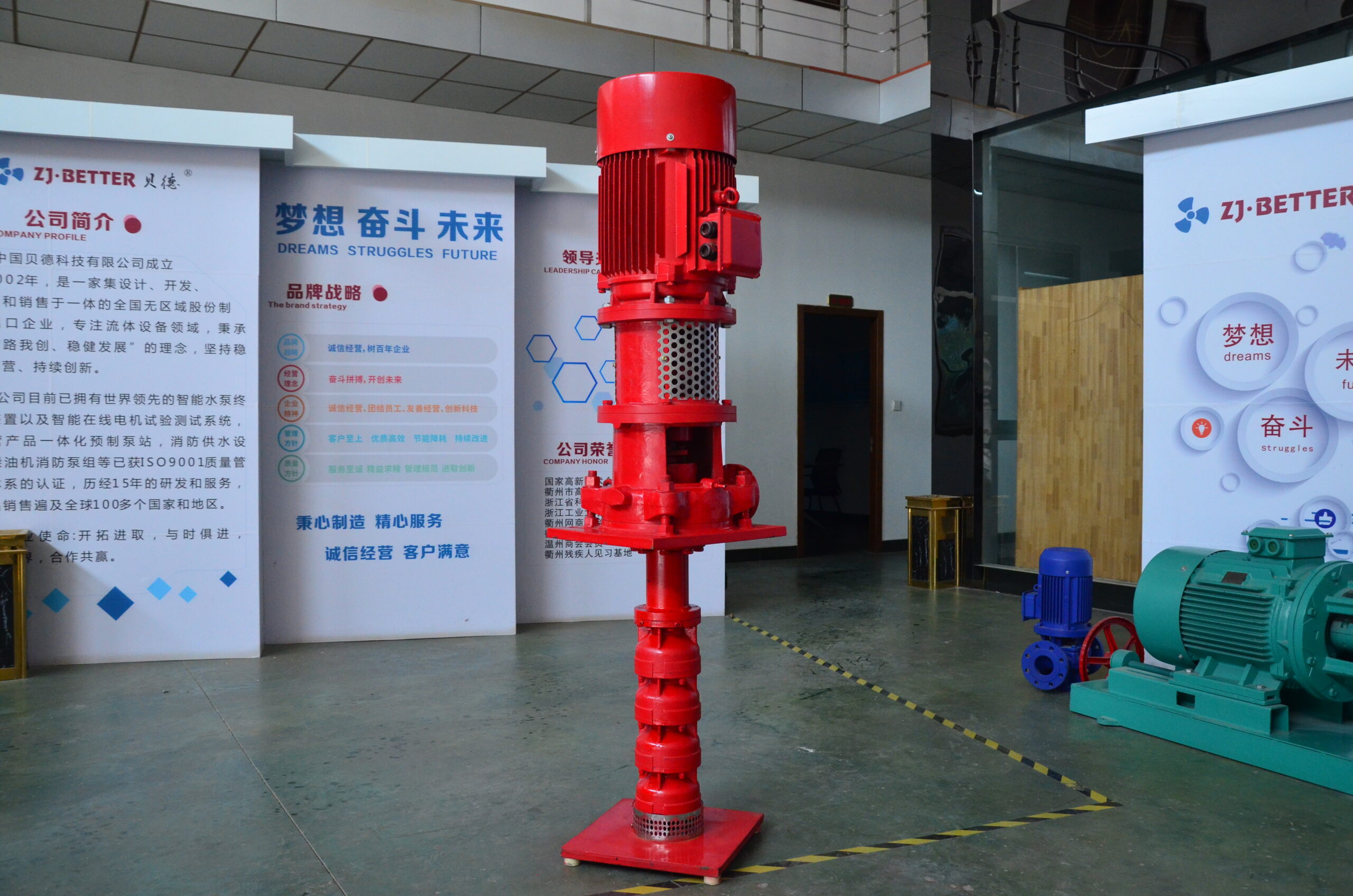

Vertical turbine pumps are often preferred for applications where a high flow rate and high head (pressure) are required. They are also well-suited for use in deep wells or reservoirs where a submersible pump may not be practical. Additionally, vertical turbine pumps are typically more efficient than other types of pumps in certain operating conditions.

Diesel engine fire pump Controller, use for diesel engine fire pump
①Voltage display: control the voltage in the cabinet.
②Current display: control the current in the cabinet.
③Power indication: control the power in the cabinet. (red)
④Diesel engine fault indication: diesel engine fault state indication. (red)
⑤ ” Emergency stop “: the button for emergency stop electric fire pump and diesel engine fire pump. (red)

Features:
The double-blade impeller structure is adopted, which greatly improves the passing capacity of dirt.
The mechanical seal adopts a new type of grinding pair, and runs in the oil chamber for a long time;
The overall structure is compact, the volume is small, the noise is low, the energy saving effect is remarkable, the maintenance is convenient, and the user is convenient to replace;
Can be used within the design range without overloading the motor.

Reliable because of professionalism, specializing in the production of industrial fire pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

This kind of controller was fit for high-voltage motor，which is the voltage of motor is 6000V or 10KV.

including high-voltage switch cabinet, High-pressure solid-state soft starter device,High-voltage reactive power centralized compensation device,direct current cabinet, onsite cabinet, intellengint inspection cabinet, High-voltage patrol inspection contact cabinet, Emergency starting cabinet for high-voltage machinery

While the initial investment in firefighting pumps and fire protection infrastructure may represent a significant capital expenditure, the long-term benefits of enhanced fire safety, reduced property damage, and potential savings in insurance premiums outweigh the costs. Cost-benefit analyses and risk assessments help stakeholders make informed decisions about allocating resources to improve fire protection capabilities and mitigate financial risks associated with fire emergencies.

End suction centrifugal water pump is an energy-saving pump designed by teamwork in the whole nation, it is improved on a basis on model BA, B and other single-stage water centrifugal pump.

The fire control cabinet is mainly used to control the important executive device of the fire pump. The fire hydrant pump control cabinet and the fire sprinkler control cabinet are collectively called the fire control cabinet. When the fire hydrant pump (spray pump) control cabinet receives the fire hydrant signal, it will press Indicates to start or stop the fire water pump.

The constant pressure variable frequency water supply equipment is an advanced system designed to maintain stable water pressure while ensuring energy-efficient water supply. It utilizes variable frequency technology and an intelligent control system to dynamically adjust pump speed and water pressure based on real-time water demand. This eliminates energy wastage caused by frequent start-stop cycles in traditional systems, providing users with a constant water pressure supply for stable and reliable water distribution during peak and off-peak periods. The equipment’s intelligent control system enables remote monitoring and automatic alarms, improving operational reliability and maintenance efficiency. Widely applied in industrial, construction, agricultural, and municipal sectors, this energy-efficient solution optimizes water supply systems to meet diverse user demands effectively.

Significant energy saving, small footprint, easy installation and stable performance.
The jacket is made of 304 high-quality stainless steel, and the shaft seal is made of wear-resistant mechanical seal, which has no leakage and long service life.
The axial force is solved by hydraulic balance, so the operation is stable and the noise is low.

used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea. Type JCW are better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

The domestic water supply equipment system is equipped with storage tanks and other water storage facilities, which saves the floor area and reduces the construction load, thereby saving a large amount of civil engineering investment costs. The intelligent and automatic operation of the equipment does not require a special person to be on duty, which saves management costs, and there is no water quality treatment instrument, which eliminates the need for regular cleaning and disinfection; the loss of system dripping, leakage, and overflow is reduced.

Submersible mixer, also known as submersible propeller, is suitable for promoting and stirring sewage containing suspended solids, dilute mud and industrial process liquid in the technological process of sewage treatment plant, creating water flow, strengthening the stirring function and preventing sludge precipitation. It is an important equipment in the technological process of municipal and industrial sewage treatment.

The pump consists of these assemblies, that is the crooking assembly and the column pipe assembly below ground and the drive device above ground.

The multistage pump is a centrifugal pump in and out of the water section and the middle section, through the rod combination together, its output water pressure can be very large, but also depends on the rotation of the impeller to obtain the centrifugal force, so that the material. When the gas density reaches the working range of the mechanical vacuum pump, it is extracted, and the high vacuum is gradually obtained.

The Portable Irrigation Pump is a portable and user-friendly tool used primarily by farmers and gardening enthusiasts for small-scale irrigation in fields, vegetable gardens, and flower beds. With its manual operation, this pump requires no external power source, making it suitable for remote areas lacking electricity or other energy supplies. Comprising a handle and a suction pipe, users can easily draw water from the source through reciprocating motion, delivering it efficiently to the roots of crops or plants for effective irrigation. Being both economical and eco-friendly, the Portable Irrigation Pump offers a reliable and convenient solution, particularly in areas with limited resources and where other irrigation equipment may not be available.

The horizontal sewage pump has the advantages of high efficiency, significant energy saving, stable operation, reliable performance and convenient maintenance. All horizontal sewage pumps are designed and optimized by computer. Our company has strong technical force, rich production experience and perfect testing methods to ensure stable and reliable product quality. (Material, cast iron, stainless steel)

Regular maintenance of foam tanks is essential to ensure their proper functioning during emergencies. This includes inspecting for leaks, checking foam concentrate levels, testing proportioning equipment, and conducting periodic foam quality tests.

Hygienic and clean to use, high efficiency, low noise, mild corrosion resistance and compact structure, beautiful appearance, small size, light weight, convenient use and maintenance, reliable sealing performance

The remote monitoring system for the water supply pump station is suitable for the remote monitoring and management of the pressurized pump station in the urban water supply system.
The pump station manager can remotely monitor the water level of the pump station pool or the entry pressure, the working status of the booster pump group, the outbound flow, and the exit pressure from the monitoring center; they can remotely control and automatically control the start and stop of the booster pump group; When optical fiber communication is used, the panorama and important stations in the station can be monitored by image, so that the pump station can be unattended.

For end suction pumps and since water is entering one side of the impeller, and due to the design of “Impeller overhung”, these pumps cannot be used for large water flow applications and usually not exceeding 1500 gpm of flow.

Export fire pump set will be packaged with free fumigating wooden case.

The integrated prefabricated pumping station is the lifting equipment for lifting sewage, rainwater, drinking water and waste water.

WQ (QW、WQK ) series submersible sewage pump applicable to transport containing solids and fiber of sewage or clean water.

The star connection-delta connection utilizes the two connection methods of the motor to achieve the purpose of step-down starting, reduce the starting current, and reduce the impact of excessive current on the power grid. Simply put, the stator is connected in star at the start of the motor and then switched to delta connection after starting, which is the starting method of star-delta buck start.

The fire water supply pressure booster pump complete sets of equipment is the equipment for the firefighting project. The main function is to maintain the firefighting pressure of the fire extinguishing pipe network. When a fire alarm is opened, the fire extinguishing equipment can immediately spray the solid water column, and the alarm linkage starts the large fire pump. Win the initial fire extinguishing time of more than 30 seconds until the full load of the fire main pump is started. Because the equipment can maintain the pressure of the pipe network at all times, the pipe network does not have air to start. The fire pump does not slam, the pipe network has no risk of vibration.

The electric diaphragm pump is a reliable and efficient industrial pump powered by an electric motor. It uses diaphragms to move liquids, making it suitable for handling various fluids, including clear water, chemicals, corrosive liquids, viscous substances, and particle suspensions. With its compact size and lightweight design, the pump is easy to install and maintain. It finds extensive use in industries such as chemical, petroleum, food and beverage, paper-making, and environmental protection. The pump’s leak-free and eco-friendly operation ensures safe and sustainable fluid handling processes. Its versatility, efficiency, and reliability make it an ideal choice for fluid transportation in various industrial applications.
