XBC-IS fire pump set

The equipment is suitable for fire water supply and emergency water supply in various occasions such as warehouses, docks, airports, petroleum, chemical, factories, power plants, liquefied gas, textiles, ships, cruise ships, etc.

Large EDJ fire pumps
Reliable because of professionalism, specializing in the production of industrial fire pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

At higher altitudes, the atmospheric pressure is lower, which can reduce the performance of fire pumps. To compensate for this, fire pumps may need to be oversized or specially configured to deliver the necessary pressure and flow in high-altitude environments. Proper planning and design are essential to ensure that the system functions effectively under these conditions.

Yes, various regulations and standards, such as those set forth by organizations like the National Fire Protection Association (NFPA), govern the design, installation, testing, and maintenance of firefighting pumps to ensure their safety and effectiveness. Compliance with these standards is essential for maintaining fire safety standards and regulatory requirements.

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a treatment medium temperature lower than 80 degrees and non-corrosive. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric motor fire pump set adopts multiple fire water pumps powered by electric motors.

The minimum rated fire pressure of dual power is 0.3MPa, and the minimum rated fire
rated work flow is 2L/S. Dual power includes motor pumps, engine pumps, pressure
stabilization pumps, diaphragm pneumatic tanks, pipes, valves, electrical control systems,
control sensors and other related accessories driven by at least two power sources. Fire
water supply equipment is continuously supplied to the fire control network by preset mode.
The arrangement is reasonable, the installation is firm, the connection is reliable, the
structure is compact and neat, and is convenient for maintenance and overhaul

Yes, proper training is essential for safely and effectively operating firefighting pumps. Training topics may include pump operation and maintenance, understanding pump performance curves, selecting and deploying appropriate nozzles, and practicing safe firefighting techniques.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The integrated diesel and electric dual-power fire pump system delivers reliable and efficient fire protection with intelligent control, auto-switching, and compact design—ideal for high-rise buildings, data centers, and warehouses requiring advanced fire safety solutions.

Dual power fire pump has high efficiency, remarkable energy-saving effect, compact structure, low noise, small floor area, saving investment and energy, and has obtained UL certification.

The integrated fire pump unit adopts a modular design, incorporating the pump, drive equipment, control system, and pipeline components into a single base to enhance system stability and ease of installation. This equipment is suitable for high-rise buildings, industrial facilities, the petrochemical industry, and other locations with high fire protection requirements.

The unit is equipped with a high-performance electric motor or diesel engine as a power source, ensuring a stable water supply in emergency situations. The pump features a high-head and large-flow design, meeting various firefighting demands and ensuring rapid water delivery in case of fire. The intelligent control system continuously monitors operating conditions and can automatically start or stop the pump according to preset parameters, improving fire response efficiency.

With a compact structure and small footprint, the unit is ideal for installations with space constraints. The optimized pipeline and valve design reduce fluid resistance and enhance transportation efficiency. Constructed from corrosion-resistant materials, the system ensures long-term operational stability and durability while minimizing maintenance requirements.

This integrated fire pump unit complies with relevant international standards, making it suitable for different regional fire safety regulations and widely applicable to various scenarios requiring efficient and reliable fire water supply.

Regular maintenance is crucial for ensuring the reliability of firefighting pumps. This includes checking and changing oil, inspecting hoses and connections, testing the pump regularly, and following the manufacturer’s maintenance guidelines.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

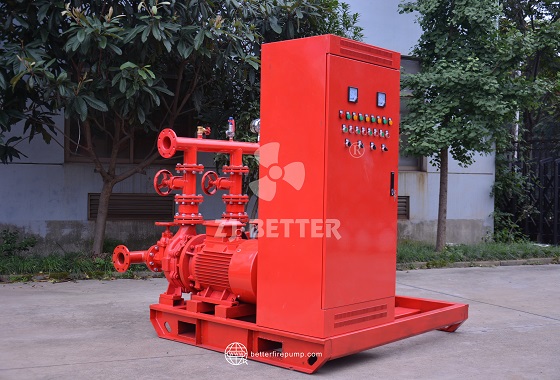

EDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Diesel engine fire pumps have been widely used in fire diversion as fixed fire fighting equipment, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply. , fire pump, connecting device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, trailer-type mobile water pump stations, etc., which can be used together with electric fire pumps.​​

Troubleshooting common issues with fire pumps involves systematic checks of components, electrical systems, and fluid dynamics. Regular maintenance and having a qualified technician perform diagnostic tests are essential.

EDJ series fire pump sets are mainly installed in fire trucks, fire extinguishing systems or other fire fighting facilities, and are special pumps used to transport liquids such as water or foam solution.
The fire pump set includes a main pump connected to the electric motor, a backup pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base.

The main reason to have a fire pump is to work with the fire protection system in case the water supply does not have sufficient pressure. High structures or large warehouses that carry large amounts of water require the help of a fire pump. It increases the pressure of the water flowing into the fire suppression system, allowing the system to release the maximum amount of water while extinguishing the fire.

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure stabilizing pumps. It is also suitable for various villas, residential areas and other fire systems, industrial It is also suitable for various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection level requirements.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

In modern fire protection systems, rapid response to fire incidents is crucial for safeguarding life and property. The Pressure Stabilization and Dual-Function Pump System integrates powerful pressure regulation with dual power sources to ensure that the fire protection system quickly responds and maintains a continuous, stable water supply during emergencies.

This pump system is designed with two power sources—an electric motor and a diesel engine. When the primary power source fails, the diesel engine automatically starts, ensuring uninterrupted operation of the fire protection system even during power outages. Its pressure stabilization system automatically adjusts pressure during operation, ensuring stable water flow for fire suppression and preventing water interruptions due to insufficient or fluctuating pressure, ultimately improving firefighting efficiency.

The intelligent control system further enhances the efficiency of the pump system, allowing users to monitor the system’s status in real-time through a touch panel. The system is easy to operate, and any malfunction is quickly detected and alarms are triggered, activating backup systems to effectively prevent emergency issues caused by system failure.

This pump unit is ideal for applications in high-rise buildings, industrial zones, storage facilities, and other locations with high reliability requirements for fire protection, ensuring that the fire pump can be immediately activated and continue to supply water in any emergency.

Fire pump impellers typically have a single- or double-suction design, with the latter being more common. They are usually made of cast bronze, cast iron, or stainless steel and are designed to operate at high pressures and temperatures. The impeller blades are typically curved to provide optimal flow and pressure, and the hub is designed to ensure a secure fit on the motor shaft. The impeller shape and size, as well as the number of blades, are designed to provide an optimal flow rate and pressure for the application.

Product Overview
Product Introduction of EDJ Fire Pump System
1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

The electric fire pump unit is driven by an electric motor and has many different structures such as horizontal and vertical.

The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance.

Although the electric fire pump set has the advantages of simple operation and maintenance, most of the design specifications of the fire protection system stipulate that when using the electric fire pump set, it should have the condition of dual-circuit power supply. And usually there should be a diesel engine fire pump set as a backup pump set.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Application Scope: Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Assess the water supply: Ensure availability and capacity of your building’s water source.
Identify the fire protection system needs: Consider sprinkler systems, standpipes, or hydrants.
Understand NFPA 20 standards: Choose UL-listed or FM-approved pumps for compliance.
Select the appropriate pump type: Electric, diesel, or jockey pump depending on power reliability and application.
Consider the building size and use: High-rises or industrial facilities require higher-capacity pumps.

With the continuous progress of the times, the application of diesel engine fire pumps is becoming more and more extensive. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

Packaging and delivery

Packaging details: standard export wooden cases or as required delivery detail: within 30 days

Specification

Compact structure, stable performance
Install and maintain conveniently
Mechanical or packing seal

Application

Use in fire system water supply, and also suitable for water supply plant, irrigation, drainage pumping plant, electric plant, air conditioning water supply, industry water supply, fire system, shipping industry, oil refining system, mining and other water supplying situations.
