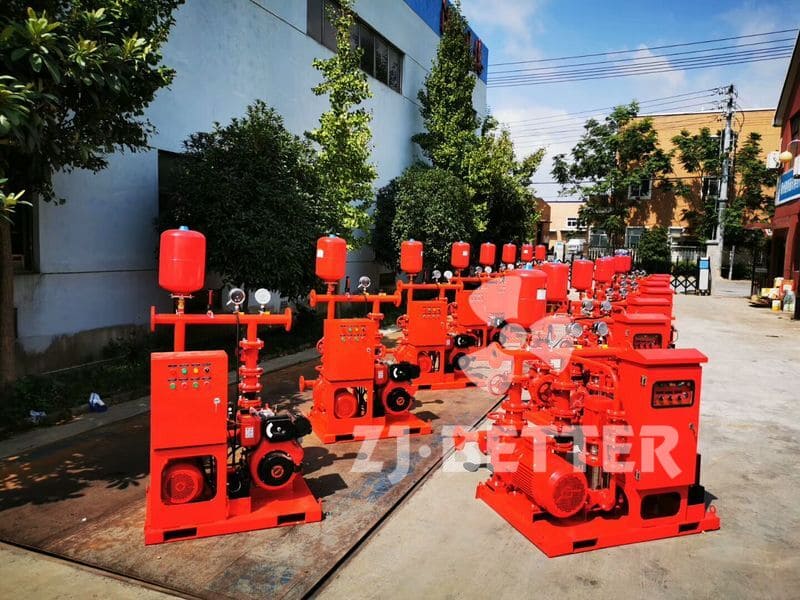

20 sets for fire pump small flow 50gpm&100gpm

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

It’s the 3D Display of Fire Pump Set and its working principle. The fire pump set is usually consisting of jockey, electric&diesel engine pump along with control panel and accessories.

Our pump for pumps has ISO centrifugal pump with high efficiency, XA centrifugal single-stage pump, ISW centrifugal pump which can be used for all customers with more competitive price, XBD centrifugal pump which has same specification as ISW centrifugal pump, OTS split case which has high capacity to meet the customers requirements, D multistage pump with high pressure up to 60bar. JC vertical turbine pump for the water level lower than the pump suction. XBC diesel engine fire pump for all pumps use diesel engine.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

The fire pump set adopts ISW pump, which saves cost and is reasonably priced. This series of fire pump sets are suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

Flow: 45 GPM
Head: 7 Bar
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

Advanced integrated control diesel fire pump with auto start-stop, remote monitoring, and multiple safety alarms—ideal for factories, warehouses, petrochemical, and energy sectors to ensure uninterrupted industrial fire protection.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Common Causes of Fire Pump Motor Failures:

Electrical Issues: Faulty wiring or power supply problems can lead to motor failure.
Overheating: Insufficient cooling or blocked ventilation can cause overheating.
Mechanical Failure: Worn bearings or misalignment can result in motor damage.
Lack of Maintenance: Neglecting routine maintenance can lead to premature failures.
Corrosion: Exposure to moisture and chemicals can damage components.

Key Considerations:
High-rise buildings require adequate water pressure to reach upper floors efficiently.
NFPA 14 recommends a minimum residual pressure of 100 psi (6.9 bar) at the highest standpipe outlet.
Fire pump discharge pressure should be calculated based on:
Elevation height (0.433 psi per foot of elevation).
Friction loss in pipes, fittings, and valves.
Minimum operating pressure required at hose connections.

Yes, fire pumps in high-rise buildings must account for increased pressure requirements and vertical lift. Proper placement, redundancy, and access for maintenance are also critical in these applications.

Pressure relief valves prevent over-pressurization in the fire pump system. They ensure safe operation by releasing excess pressure, protecting the pump and connected piping from damage.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

EDJ fire pump set is suitable for any emergency firefighting occasions, such as: firefighting water supply and emergency water supply in warehouses, docks, airports, petrochemicals and other occasions. This product can run in the case of power failure, the product has strong stability and is more reliable, and the jockey pump and pressure vessel can save some electricity and save costs.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

EDJ-ISW is a brand-new fire pump designed to tackle various fire scenarios. It is renowned for its exceptional performance and efficient operation, making it the ideal choice for fire safety. No matter the firefighting challenge you face, EDJ-ISW is a fire pump you can rely on. Choose EDJ-ISW and fortify your safety with solid fire protection.

70m3/h@60m Fire pump set test
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Common accessories include:
Control Panels: For monitoring and operation.
Pressure Relief Valves: To prevent overpressure situations.
Hose Reels and Cabinets: For easy access during emergencies.
Flow Meters: To monitor water flow rates.
Jockey Pumps: For maintaining pressure in the system.

Fire pumps are necessary to maintain adequate water pressure for firefighting, especially in high-rise buildings, large industrial facilities, or areas with insufficient water supply.

Factors include the building size, height, occupancy type, local fire codes, water supply source, and the required water flow and pressure. A thorough hydraulic analysis is typically performed to determine the appropriate pump size and type.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathrooms, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The three pumps are automatically started and stopped. When the jockey pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Enhancing the stability and energy efficiency of fire pump systems is crucial for fire safety. Our fire pumps are crafted from high-quality materials and produced with advanced manufacturing techniques, ensuring excellent corrosion resistance and long-lasting durability. Equipped with high-efficiency motors and intelligent control systems, they significantly reduce energy consumption while guaranteeing efficient output during fire emergencies. The unique vibration reduction and noise suppression design ensures stable and reliable operation, unaffected by external environmental factors. Whether for high-rise buildings or industrial facilities, our fire pumps provide consistent and lasting protection.

Assess the water supply: Ensure availability and capacity of your building’s water source.
Identify the fire protection system needs: Consider sprinkler systems, standpipes, or hydrants.
Understand NFPA 20 standards: Choose UL-listed or FM-approved pumps for compliance.
Select the appropriate pump type: Electric, diesel, or jockey pump depending on power reliability and application.
Consider the building size and use: High-rises or industrial facilities require higher-capacity pumps.

This diesel engine fire pump set is engineered to perform in challenging and unpredictable environments. Completely independent of the power grid, it delivers exceptional operational reliability, ensuring continuous water supply in critical moments. Powered by a world-class diesel engine, it features rapid start-up, robust torque, and consistent performance during power outages, extreme weather, or emergencies—making it ideal for mines, chemical plants, airports, and high-rise buildings.

The unit comes equipped with an intelligent control panel offering automatic start/stop, fault alarms, and real-time monitoring for simplified operation and easy maintenance. Its compact design allows it to fit into space-constrained installations. Whether in high-temperature, high-humidity, or freezing conditions, this diesel fire pump system delivers stable and efficient performance—an ideal solution for industrial-grade fire protection.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

The lifespan of a fire pump depends on factors such as usage, maintenance, and environmental conditions. Regular inspections and proper maintenance can extend the lifespan of a fire pump, and replacement may be necessary if it no longer meets safety standards.
