Can a fire pump be connected to a building’s generator for backup power?

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Non-UL Flow：30-9000 GPM
Non-UL Head： 3-20 Bar (40-300 psi)
UL Flow：50-3000 GPM
UL Head： 5-20 Bar (72.5-290 psi)
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Common accessories include:
Control Panels: For monitoring and operation.
Pressure Relief Valves: To prevent overpressure situations.
Hose Reels and Cabinets: For easy access during emergencies.
Flow Meters: To monitor water flow rates.
Jockey Pumps: For maintaining pressure in the system.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The fire pump set adopts ISW pump. ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump developed by our company by absorbing the advanced technology of similar foreign products and adopting the general performance parameters of domestic centrifugal pumps.

In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Discover what shutoff head means in fire pump systems and why it’s crucial for safe and efficient operation.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

The equipment is a diesel engine fire pump with a flow rate of 500gpm and a pressure of 70m customized by a Nigerian customer. The pump is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Fire pump control systems are critical for ensuring the reliable operation of fire pumps. This article delves into the components and functionalities of fire pump control systems, including starting mechanisms, alarms, and interface with fire alarm systems. It emphasizes the role of these systems in enhancing safety and reliability during fire emergencies.

Fire pump system comprises a combination of electric motor driven fire pump+diesel engine driven fire pump+electric motor driven jockey pumps+ control panel and other accessory.

Diesel engine fire pump has the advantages of light weight, small size, flexible movement, fast start, fast water discharge time, large fuel tank capacity, corrosion resistance, reliable use, convenient maintenance, fast automatic start, self-starting, and can be refueled after dry operation . Heavy-duty pump bearings last longer; other components are made of high-quality copper and stainless steel or customer. Diesel engine fire pump high efficiency open impeller design can handle large solids and abrasives while maintaining high flow rates and high volume air handling for use in more “well point dewatering projects”.

It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. It is the ideal pump and fire protection system to create no leakage, no pollution civilized workshop and civilized factory.

The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.
All products are tested before delivery to ensure no quality problems.

The electric fire pump set is an important fire pump equipment, usually in a horizontal state. Each pump group is composed of five parts: front pump, electric motor, hydraulic coupling, main feed water pump, lubricating oil device (including lubricating oil cooler and working oil cooler. In normal state, two sets are running, one There are two standby pumps, and any feedwater pump set can be used as a standby pump. When one of the two running pumps stops due to an accident, the standby pump will be put into operation automatically.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
5.Caliber: 25-800mm
6.Material: HT200，SS304，Bronze
The EEJ Fire Pump System includes two electric pumps and a jockey pump.

When we buy fire pumps, we all encounter this situation: the products we buy fail to meet the parameters required by ourselves, or exceed the parameter range required by ourselves, resulting in that they cannot be used. Or the product is not the type you want, which shows the importance of product testing.

These pictures display a fire pump set consisting of diesel engine fire pump and jockey pump along with a control panel and accessories.

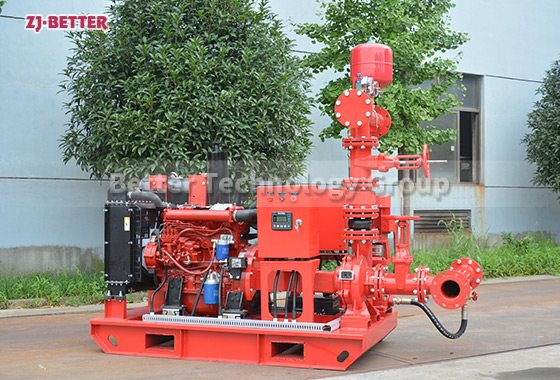

DJ Fire pump set Fire pump set consists of one pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.And this fire pump system can be customized for different purposes such as high rise buildings, facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

In modern fire protection systems, rapid response to fire incidents is crucial for safeguarding life and property. The Pressure Stabilization and Dual-Function Pump System integrates powerful pressure regulation with dual power sources to ensure that the fire protection system quickly responds and maintains a continuous, stable water supply during emergencies.

This pump system is designed with two power sources—an electric motor and a diesel engine. When the primary power source fails, the diesel engine automatically starts, ensuring uninterrupted operation of the fire protection system even during power outages. Its pressure stabilization system automatically adjusts pressure during operation, ensuring stable water flow for fire suppression and preventing water interruptions due to insufficient or fluctuating pressure, ultimately improving firefighting efficiency.

The intelligent control system further enhances the efficiency of the pump system, allowing users to monitor the system’s status in real-time through a touch panel. The system is easy to operate, and any malfunction is quickly detected and alarms are triggered, activating backup systems to effectively prevent emergency issues caused by system failure.

This pump unit is ideal for applications in high-rise buildings, industrial zones, storage facilities, and other locations with high reliability requirements for fire protection, ensuring that the fire pump can be immediately activated and continue to supply water in any emergency.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The equipment is designed to have one duty and one standby function. The main electric pump runs normally, and the standby diesel pump starts automatically after the main pump fault . The Jocky pump will start and stop based on the pipe pressure, Control panel site start.

Using Instruction
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.
