What are the primary components of a firefighting pump system?

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Prior to installation, fire sprinkler systems are hydraulically calculated to ensure adequate water flow and that the system can reliably suppress a fire until fire crews arrive. When it is determined that there is insufficient flow from a municipal supply for the system to function properly, a fire pump is installed. The fire pump activates when the sprinkler system pressure falls below a certain threshold as a result of sprinkler head operation. To maintain the required operating pressure of the sprinkler system, the fire pump draws additional water from the municipal water supply or on-site storage tanks. Due to the size of piping systems and pressure loss, fire pumps are frequently required in high rise construction and large area buildings.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

Fire pump system include Diesel engine pump + Electric motor pump+Jockey pump. Sometime, it just include Electric pump+Jockey pump.
Its power: 1.0 to 20kw, flow: 15-300gpm, head: 3-10bar, 50/60hz. The material: Cast iron or SS, bronze impeller.

The diesel fire pump set is easy to maintain, has a high degree of automation, reliable performance, and a wide range of equipment pressure and flow. XBC type automatic diesel engine fire pump set, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in fire water supply under unexpected circumstances such as no power supply or abnormal power supply (mains power).

High Pressure Fire pump set for 25m3/h, 270m head, and this is two multistage pump with one outdoor type controller

The fire pump is part of the water supply of the fire sprinkler system and can be powered by electricity or diesel. The inlet of the pump is connected either to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). The pump supplies water at higher pressure to the sprinkler system risers and hose risers.
Fire pumps generally use three driving forces, including diesel engines, gasoline engines and electric motors. Gasoline engines are commonly used in portable fire pumps and light duty firefighting. Electric motors are the most widely used driving force for fire pumps and are both efficient and convenient.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The two main starting and control methods for fire pumps are manual starting and automatic starting.

Manual Starting: Manual starting is the simplest and most commonly used method for starting a fire pump. It involves the use of a manual start switch or lever to start the pump motor.

Automatic Starting: Automatic starting is the most reliable method for starting a fire pump. It involves the use of a control panel, which can be programmed to start the pump motor when a drop in pressure is detected. The control panel also monitors the pump’s performance and can be used to shut off the pump if it fails to start or is not performing properly.

EEDJ fire pump testing 250gpm, 6bar now!all product before shipment, we will do tesrting, then send to customers

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

1. Ensure that you understand the manual or instructions that accompany the fire pump and water pump.
2. Follow the manufacturer’s instructions and recommendations for installation and operation.
3. Make sure that the power supply used is in good condition and always isolated from the power when setting up the pump.
4. Make sure that the pump and its parts are maintained in perfect condition all times.
5. Test the readiness of the pump for use and ensure that it is in top working condition before putting it to use.
6. Determine the exact amount of water needed and make sure that the pump is operated within the recommended pressure limits and flow rates.
7. Do not operate the pump for longer periods of time than prescribed in the manual.
8. Use the proper safety equipment and clothing when operating the pump.
9. Ensure that the water is discharged in a controlled way.

The EEJ fire pump set consists of two electric pumps + one jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

Philippines clients DJ fire pump set waiting for package and dispacth
250gpm 8bar DJ fire pump, with ISW model engine pump and one jockey pump on one skid

The video displays EJ fire pump set is being tested. The system set is equipped with a priming tank and can do 2 to 3 meters negative suction.

Flow: 30-9000GPM
Head:3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
Material:SS304, Bronze

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action driving circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The finished EDJ fire pump set consists of jockey, electric&diesel pump along with control panel and accessories.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

EDJ fire pump set is composed of electric pump + diesel engine pump + jockey pump. The fire pump set has the characteristics of high efficiency and energy saving, reliable quality, strong overload capacity, compact structure, convenient maintenance and high degree of automation. Suitable for any emergency firefighting occasion.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

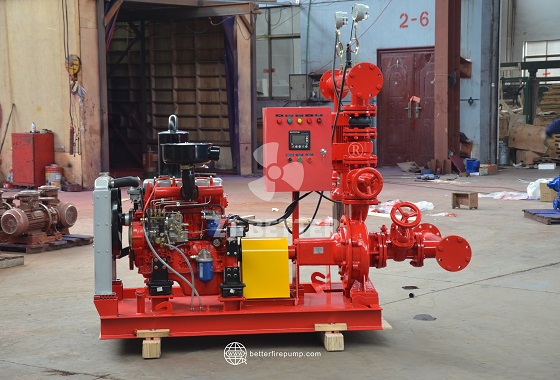

Diesel engine fire pumps have been widely used in fire diversion as fixed fire extinguishing equipment, especially in the case of sudden fire water supply such as lack of power supply or abnormal power supply, fire pumps equipped with units are horizontal single-stage, multi-stage special fire pumps, mainly composed of diesel engines. , fire pump, connecting device, fuel tank, radiator, battery pack, intelligent automatic control screen, etc. Diesel engine fire pump products have the characteristics of leading technology, high degree of automation, excellent performance protection function, reasonable structure, simple installation and high cost performance. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural pumps, marine pumps, trailer-type mobile water pump stations, etc., which can be used together with electric fire pumps.

Minor repairs can often be made to fire pumps, but major issues may require replacement or extensive refurbishment. It’s important to consult with experts in fire pump maintenance for guidance.

The pump have the National Fire Protection Association Standard NFPA20 standards.The diesel engine fire pump is equipped with the characters of good and strong overload capacity, compact structure, easy to maintain and high degree of automation.
Fire Pump Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

There are many applications for fire pumps, and different motors are selected according to the flow rate and head size. The commonly used motors include electric motors and diesel engines, and domestic and foreign brands can match the application. The fire pump can choose vertical or horizontal structure according to the pipeline requirements, and the head size is also different.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

100gpm, 7bar EDJ fire pump set & 50gpm, 6bar ED fire pump set

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

EDJ Fire pump set consists of a main electric pump(driven by electric motor),standby diesel pump(driven by diesel engine), and a jockey pump.Pumps are assembled with discharge pipe and suction pipe as well as ControlPanel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilties,hospitals,supermarkets, shopping malls, vllas,apartments,etc.
