Are fire pumps always active?

High Pressure Fire pump set for 25m3/h, 270m head, and this is two multistage pump with one outdoor type controller

Flow-1000GPM
Head-106psi
Power-100HP=75KW
EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers, etc., which can all be completed by means of fire pump systems.

Fire pumps used in different fields have different professional characteristics. For example, fire pumps in the general sense are installed on professional fire trucks or other special fire-fighting facilities, and are used to transport water and foam solutions for fire-fighting Pump.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

EJ fire pump is composed of electric pump + jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc. The pump set is deeply loved by domestic and foreign customers.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts,can work when the power is off.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

1. The fire pump should be capable of supplying the rated flow and pressure for a duration of two hours, at a rate of 150% of the rated capacity, and should not be affected by prolonged operation.

2. The fire pump should be able to start up automatically by a power source when activated.

3. All switches, gauges, alarms, controllers and monitoring systems should be certified to UL and FM standards.

4. The fire pump should be sized to meet the NFPA 20 standard for fire pump design.

5. The fire pump should be able to handle the maximum system flow and pressure required for the building.

6. The fire pump driver should match the requirements of the pump and meet NFPA 20 requirements for fire pump drivers.

7. The fire pump should be installed according to NFPA 20 standards for fire pump installation.

8. The fire pump should be tested and inspected in accordance with NFPA 25 standards for testing and inspection of fire pumps.

The EDJ fire pump unit consists of a fire pump, a double-shaft motor and a diesel engine. One end of the output shaft of the double-shaft motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double-shaft motor is connected to the One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity or diesel. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake). This pump provides higher pressure water flow to sprinkler system risers and hose risers.
Our factory can manufacture NFPA20 compliant fire pumps.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

1. When installing the water inlet pipe, the horizontal section should be horizontal or upward
2. There are many elbows used on the water inlet pipe
3. The water inlet of the water pump is directly connected with the elbow
4. The last section of the water inlet pipe equipped with a bottom valve is not vertical
5. The position of the water inlet of the water inlet pipe is wrong
6. The outlet pipe is above the normal water level of the outlet pool

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. The pump set adopts ISO pump,ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.
This product combines the strengths of similar products in China and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.

EDJ series fire pump set consists of Electric pump + Diesel pump + Jockey pump and all accessories.
The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.
Flow Capacity Range:50-5000 GPM
Pressure Range:4-14 Bar
Power Range：4-325 KW

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
5.Caliber：65-350 mm
6.Working Pressure：≤1.6 MPa
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

The lifespan of a fire pump motor or engine varies based on factors like usage, maintenance, and the quality of the equipment. However, they are typically designed to be durable and long-lasting.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The dual power fire pump pressure switch and control cabinet can automatically turn on/off the three pumps – the electric pump and the jockey pump work when there is electricity, and the diesel pump when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

Advantages of OTS fire pump set:
1. Advanced hydraulic model, high efficiency and wide performance range.
2. Horizontal structure, easy installation and maintenance, small footprint.
3. Small vibration and low noise. Hydraulic balance of axial force is adopted to make the pump run smoothly, safely and reliably.
4. The inlet and outlet of the pump are on the same horizontal axis, which is convenient for pipeline connection and extremely convenient for loading and unloading.

500gpm ED fire pump dispatch

It depends on the type of fire pump and the specific design of the system. Generally speaking, most fire pumps should be set to automatic mode in order to ensure that they operate when needed. However, in some cases, manual mode may be more appropriate and necessary.

Proper start-up procedures are crucial to the reliable operation of fire pumps during emergencies. This article provides a step-by-step guide to fire pump start-up, covering pre-start checks, system priming, and the role of controllers. It emphasizes the need for well-documented start-up procedures to ensure consistent and error-free operations.

EEDJ fire pump testing 250gpm, 6bar now!all product before shipment, we will do tesrting, then send to customers

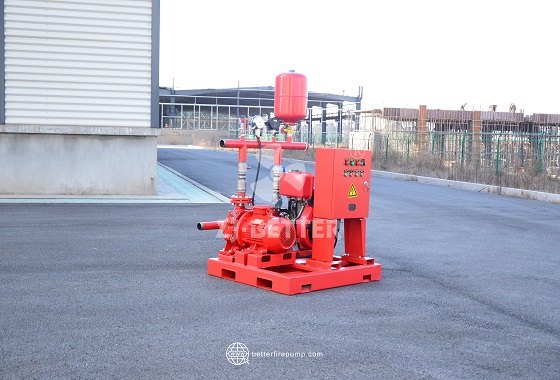

The motor fire pump unit is powered by an electric motor to drive the fire pump and output pressure water for fire fighting. The pump unit is mainly composed of a motor, a water pump, a transmission device, a common base and an instrument table. The starter cabinet is installed near the pump unit for starting the motor.
The electric fire pump set has the advantages of quick start, reliable water diversion, stable operation, high degree of automation, wide range of pressure and flow, etc. It is an advanced and reliable fixed fire-fighting equipment.

Using Instruction£º
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Application Scope£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
