All-in-One Electric Fire Pump Unit: Simplified Piping, Enhanced System Reliability

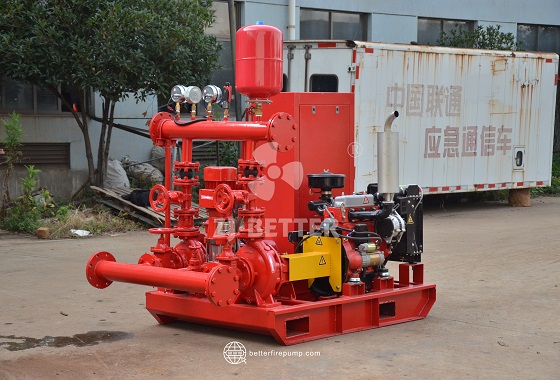

EDJ fire fighting equipment consists of electric pump + diesel pump + jockey pump. Both the electric pump and the diesel pump use a multistage jockey pump with large flow and high lift. The diesel engine can be started without electricity. It is suitable for any fire protection occasion. The company has a professional sales and production team, and the choice of pumps can be customized according to their own needs.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Common Causes of Fire Pump Motor Failures:

Electrical Issues: Faulty wiring or power supply problems can lead to motor failure.
Overheating: Insufficient cooling or blocked ventilation can cause overheating.
Mechanical Failure: Worn bearings or misalignment can result in motor damage.
Lack of Maintenance: Neglecting routine maintenance can lead to premature failures.
Corrosion: Exposure to moisture and chemicals can damage components.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Pressure relief valves prevent over-pressurization in the fire pump system. They ensure safe operation by releasing excess pressure, protecting the pump and connected piping from damage.

The function of the diesel fire pump is very powerful. We can set the control time during use, and it can be automatically charged, automatically started, as well as automatic alarm and automatic preheating functions. It is very reliable to use.

Specialized diesel fire pumps for ports and large facilities feature rapid response, long-term stable operation, high head and large flow, corrosion resistance and durability, as well as intelligent control. These pumps ensure efficient water supply in power outages or emergencies, thereby safeguarding fire safety.

High performance diesel fire pump system designed for industrial and commercial fire protection. Provides reliable emergency fire water supply with independent diesel power, automatic start, strong pressure output, and stable operation. Ideal for factories, warehouses, large buildings, and critical fire protection infrastructure.

The fully enclosed fire pump equipment solution adopts an integrated enclosed structure design, which effectively protects against the effects of wind, rain, dust and complex environments. It integrates a high-efficiency fire pump, a stable power system and intelligent control device, supports rapid installation and continuous operation, and significantly improves the reliability, safety and long-term operational stability of the fire water supply system.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Users should be trained in the proper operation of the pump and follow all safety guidelines. It’s important to wear appropriate personal protective equipment, ensure proper ventilation, and be aware of potential hazards.

When facing the fire risks in modern buildings and industrial facilities, firefighting efficiency and reliability are the foremost considerations. Electric fire pumps are the ideal solution for tackling fire challenges in complex environments, offering high efficiency, stability, and smart control systems. Whether in high-rise buildings, industrial parks, chemical plants, or power facilities, electric fire pumps ensure exceptional performance.

Firstly, electric fire pumps are equipped with high-performance electric motors, ensuring the stable operation of the pump through intelligent control systems. In the event of a fire, the system responds quickly and activates the pump, providing a steady water flow to extinguish the fire. Especially in complex environments such as narrow spaces, high-temperature settings, or areas requiring highly precise control, the electric fire pump continues to operate efficiently, ensuring the successful execution of firefighting tasks.

Moreover, the smart control system of the electric fire pump continuously monitors the pump’s operational status, conducts self-diagnostics, and adjusts pressure and flow, ensuring no performance degradation during firefighting operations. Its compact design allows it to fit into spaces with limited room while maintaining top-notch performance.

With the increasing emphasis on environmental protection and energy efficiency, the low energy consumption and high performance of electric fire pumps make them increasingly popular in the market, playing a critical role in optimizing firefighting efficiency.

1. All personnel must be familiar with the operation manual and the safety regulations of the fire pump before use.

2. When the fire pump is in operation, no one should be allowed to approach the pump or the suction and discharge pipelines.

3. The suction and discharge pipelines should be inspected regularly to ensure that there are no blockages, as blockages can cause the pump to malfunction.

4. The pressure of the pump should be checked regularly to ensure that it is within the range specified by the manufacturer.

5. Before starting the fire pump, all valves in the suction and discharge pipelines must be checked to make sure they are open.

6. All safety devices should be checked regularly to make sure they are in good working condition.

7. The motor should be checked regularly to make sure it is in good working condition.

8. The fuel tank should be checked regularly to make sure it is filled with the correct type and amount of fuel.

9. The temperature of the pump should be checked regularly to make sure it is not too high.

10. If a fault is detected, the pump should be shut down and the fault should be rectified before it is restarted.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

Product features and performance advantages of this diesel electric combined drive fire pump. The equipment combines electric motor and diesel engine dual power system to ensure continuous water supply even under unexpected circumstances such as power outages, enhancing the reliability of the fire fighting system. The product has high pressure and high flow output, excellent hydraulic performance, intelligent control, compact structure for easy installation, adaptable to a variety of harsh environments, and support for customization, in line with a number of international fire standards. The overall design is geared towards demanding scenarios, such as high-rise buildings, petrochemical parks, underground facilities, etc., and is an ideal solution to meet the challenges of modern fire protection.

Electric motor fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire water. The electric motor fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Explore the high-efficiency and energy-saving advantages of electric fire pump sets. Designed for stable performance, intelligent control, and low maintenance, this firefighting solution is ideal for modern buildings and critical fire protection systems.

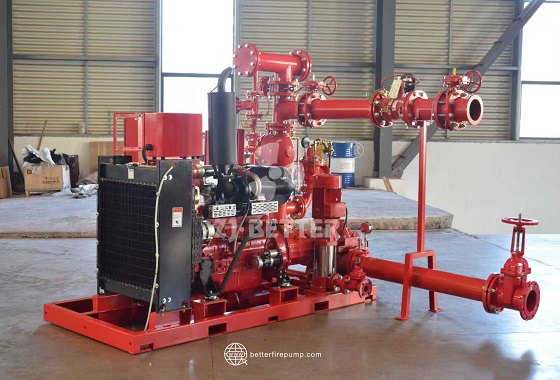

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The diesel engine fire pump can deliver clean water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of living and production water supply conditions are taken into account. The products can be used not only in independent fire-fighting water supply systems, but also in fire-fighting and living shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Choosing a good fire pump is crucial for ensuring the effectiveness and reliability of your fire protection system. Here are some key factors to consider when selecting a fire pump:

Flow and Pressure Requirements: Determine the required flow rate and pressure for your specific application. Consider factors such as the size of the protected area, the type of fire hazards, and any applicable fire safety regulations. Ensure that the fire pump you choose can meet these requirements.

Pump Type: Select the appropriate pump type based on your needs. The two common types of fire pumps are centrifugal pumps and positive displacement pumps. Centrifugal pumps are widely used due to their high flow rates and ability to handle large volumes of water. Positive displacement pumps, on the other hand, are better suited for applications that require high pressure but lower flow rates.

Performance and Efficiency: Look for a fire pump that offers high performance and efficiency. Consider the pump’s rated capacity, which indicates the maximum flow rate it can deliver. Additionally, check the pump’s efficiency rating to ensure it operates optimally and minimizes energy consumption.

Reliability and Durability: A good fire pump should be reliable and durable to withstand the demands of fire protection operations. Consider the quality and reputation of the manufacturer, as well as the pump’s construction materials. Look for features such as corrosion-resistant coatings, sturdy construction, and reliable seals and bearings.

Compliance with Standards: Ensure that the fire pump you choose complies with relevant industry standards and codes, such as the National Fire Protection Association (NFPA) standards. Compliance with these standards ensures that the pump meets essential safety and performance requirements.

Maintenance and Support: Consider the ease of maintenance and availability of support for the chosen fire pump. Look for pumps with accessible components, clear maintenance instructions, and readily available spare parts. Additionally, check if the manufacturer or supplier provides technical support and assistance.

Testing and Certification: Check if the fire pump has undergone rigorous testing and certification by reputable organizations. Look for certifications from recognized bodies that validate the pump’s performance, efficiency, and safety.

Budget and Cost Considerations: While it is essential to choose a reliable and efficient fire pump, consider your budget and cost constraints. Compare prices, warranties, and ongoing maintenance costs to find a balance between quality and affordability.

System Integration: Consider how the fire pump will integrate with your overall fire protection system. Ensure compatibility with other components, such as fire alarms, sprinklers, and control panels. Coordinate with system designers or consultants to ensure seamless integration.

Consult with Experts: If you are unsure about the specific requirements or complexities of selecting a fire pump, consult with fire protection experts, engineers, or consultants. They can provide valuable insights and recommendations based on your unique needs and circumstances.

Remember that selecting a good fire pump is a critical decision that requires careful consideration. By evaluating the factors mentioned above and seeking professional guidance, you can choose a fire pump that meets your requirements and ensures the safety of your property and occupants in the event of a fire.

The integrated fire pump system, with its integrated structure and intelligent control technology at its core, integrates a pump unit, control cabinet, piping, and pressure-stabilizing equipment. It offers high efficiency, energy savings, easy installation, and reliable operation. Suitable for a variety of locations, including high-rise buildings, industrial plants, and commercial complexes, it provides rapid water supply in the event of a fire, ensuring fire safety and stable system operation. It is an ideal fire water supply solution for modern buildings.

The fire pump set adopts ISW pump. ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump developed by our company by absorbing the advanced technology of similar foreign products and adopting the general performance parameters of domestic centrifugal pumps.

In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.

Large EDJ fire pumps
Reliable because of professionalism, specializing in the production of industrial fire pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

This equipment is an EEJ fire pump set customized by a Greek customer with a frequency of 50Hz. The electric pump adopts an XA pump.This pump combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model.Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

EEJ Fire Pump Set is 2 electric pumps and a jockey pump. It can meet 120~1500GPM . The head is less than 150m.

The horizontal multistage fire pump, designed for industrial and building fire protection engineering, boasts advantages such as high head, high pressure, stable operation, rapid start-up, robust structure, and convenient maintenance. It is suitable for high-rise buildings, industrial parks, municipal and large-scale fire water supply systems, ensuring continuous, reliable, safe and efficient fire water supply.
