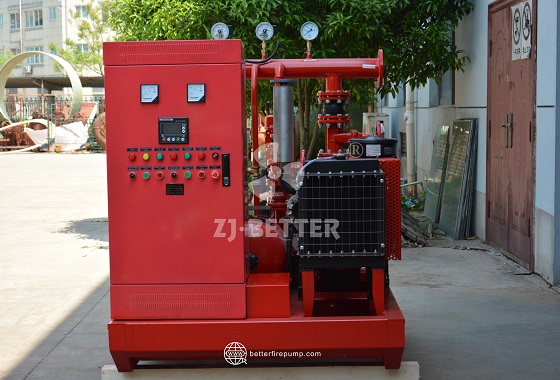

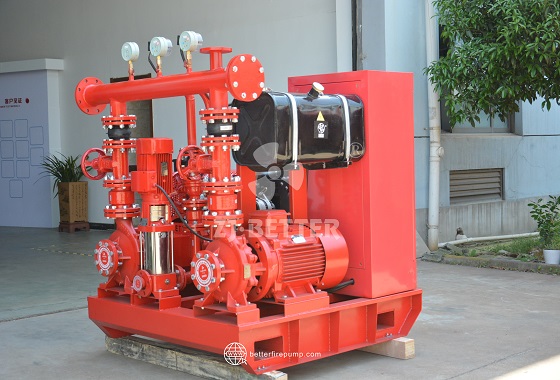

Diesel-Driven Fire Pump System with Flexible Parameter Configuration for Different Projects
Diesel-driven fire pump systems support flexible configuration of flow rate, head, power, pipe diameter, and control method. They can be matched with different engineering parameters and are suitable for industrial, warehousing, commercial buildings, and other fire water supply projects.
Diesel-driven fire pump systems use a diesel engine as an independent power source to deliver water to the fire protection network via fire pumps. They can be rationally configured according to the flow rate, head, pressure, and installation conditions of different projects. For industrial plants, warehousing and logistics centers, commercial buildings, docks, airports, and other locations requiring reliable fire water supply, the pipeline length, building height, fire water consumption, and terminal pressure requirements vary from project to project. Therefore, fire pump systems need to have good parameter adaptability. This type of equipment allows for the selection of a suitable fire pump structure based on actual working conditions, and the diesel engine power, pump flow rate, head, speed, and inlet/outlet dimensions can be matched to ensure that the power output is coordinated with the pump’s operational needs. Official website data shows that the flow rate of related diesel fire pump systems can cover approximately 30–9000 GPM, and the pressure is approximately 3–20 bar. Specific specifications should be determined based on the project’s fire protection design parameters. The equipment shown in the image adopts a structure with the diesel engine and fire pump centrally installed, equipped with a control cabinet, pressure monitoring instruments, and corresponding piping components. The overall layout is relatively compact, which is beneficial for equipment transportation, positioning, and on-site installation. Diesel-powered systems are characterized by their independence from fixed power sources. In the event of a power outage or limited on-site power, they can provide independent mechanical drive for fire pumps, making them suitable for projects requiring emergency fire water supply. The fire pump itself employs a centrifugal hydraulic structure, using impeller rotation to pressurize and transport fire water. Specific flow rate and head requirements must be selected based on the fire protection system design. The system can also be integrated with pressure gauges, pressure switches, or pressure sensors, along with automatic control devices, to monitor pipeline pressure and equipment operating status, and to perform corresponding start-up and operation control according to actual control logic. In actual engineering configurations, parameters are not fixed but must comprehensively consider factors such as fire water tank conditions, pipeline pressure, pipe diameter, building height, design flow rate, required head, and equipment installation space. For example, large industrial facilities may require larger fire water supply flow rates and higher heads, while small and medium-sized buildings can select appropriate specifications based on their design needs, thus avoiding mismatches between equipment parameters and the fire protection network. Proper power matching between the diesel engine and the fire pump is equally important, requiring both meeting the pump’s power requirements under design conditions and selecting suitable engine specifications based on actual operating conditions. Furthermore, fire pump systems can be configured with different types of main pumps according to project requirements, including end-suction, horizontal split-case, and multi-stage fire pumps, adapting to different flow rates, heads, and installation conditions through different pump structures and parameter combinations. For projects requiring complete equipment configuration, diesel main pumps, pressure-stabilizing pumps, pressure vessels, control cabinets, valves, and piping accessories can be combined into a more complete fire water supply system. Therefore, the core advantage of diesel-driven fire pump systems lies not only in providing independent power, but also in the ability to flexibly select and combine components based on specific engineering parameters, ensuring a reasonable match between the diesel engine, fire pump, control system, and auxiliary components. By configuring for flow rate, head, pressure, power, pipe diameter, and installation environment, fire protection projects of different scales can be provided with water supply equipment that better meets actual needs, while also considering the convenience of equipment operation, on-site installation, and subsequent maintenance.
