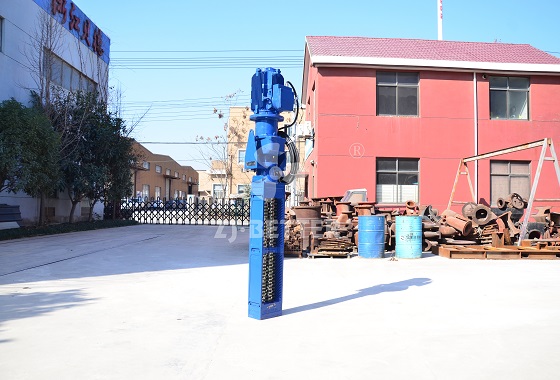

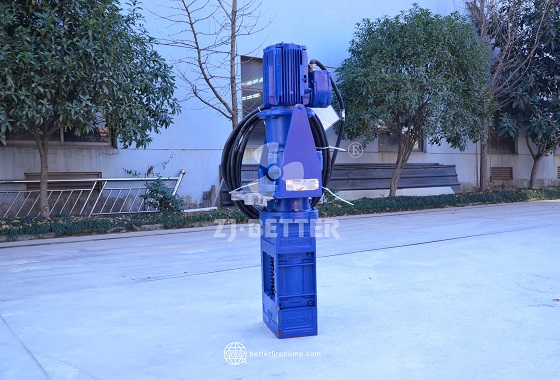

Vertical Turbine Fire Pump Equipment for Deep-Well Fire Water Supply Without Conventional Priming
The vertical turbine fire pump adopts a long-shaft vertical structure, eliminating the need for traditional priming pumps. It is suitable for fire-fighting water supply from low-level water sources such as deep wells and underground water tanks, providing stable flow and high head, and is suitable for fire protection systems in industries, warehouses, petrochemical plants, and large buildings.
In fire-fighting water supply projects using deep wells, underground water tanks, and other low-level water sources, the location of the water source and installation conditions often determine the selection of the fire pump. Vertical turbine fire pumps employ a vertical long-shaft structure, with the drive unit located at the top and the pump body and impeller assembly extending towards the water source. This allows for direct lifting of fire-fighting water from deep wells or underground water tanks, eliminating the need for conventional priming operations like some traditional centrifugal pumps. Therefore, they are particularly suitable for engineering environments where the pump installation location is above the water source level. This product is an important type of stationary fire-fighting water supply equipment, configurable according to the project’s required flow rate, head, water source depth, and installation conditions. It provides stable fire-fighting water lifting capabilities for industrial plants, storage facilities, petrochemical projects, power facilities, ports, and large buildings. The vertical structure is one of the product’s most significant advantages. The pump unit is arranged vertically, fully utilizing the space available in deep wells and underground water tanks, reducing the limitations of traditional horizontal pumps on inlet conditions and installation space. It also facilitates adjustment of the pump body and column length according to the water source depth, enabling the equipment to adapt to different water intake conditions. When the product adopts a multi-stage impeller or corresponding turbine pump structure, it can achieve a higher head through step-by-step pressurization, making it highly adaptable to projects requiring the lifting of fire water from deeper locations to the surface fire protection network. Vertical turbine fire pumps also eliminate the need for traditional priming; the lower part of the pump body is constantly exposed to the water source environment. After startup, water is transported upwards to the outlet via the column piping, reducing the need for manual priming and improving the emergency response efficiency of the fire protection system. In terms of performance, this type of equipment can be matched to the actual needs of the project in terms of flow rate and head. According to product information on the website, vertical turbine fire pumps cover a wide performance range and are suitable for fire water supply systems of different sizes. Specific parameters need to be selected based on the water source depth, pipeline resistance, fire water consumption, and design pressure. The drive method of the equipment can also be configured according to project requirements, using electric motors or other power sources, with the fire pump’s startup and operation management achieved through a control system. For automatic fire water supply systems, the supporting control device can execute corresponding controls based on changes in fire pipeline pressure, improving the automation level of equipment operation and reducing reliance on manual operation in emergencies. The product also adopts a relatively compact ground-driven structure, with the main power and control components concentrated in the upper part, while the underground part houses the pump shaft, guide components, and impeller assembly according to the water source conditions. This allows the entire system to form a vertical pumping channel suitable for deep well water intake. For fire protection projects with limited space but deep water sources, this structure can better utilize the limited installation area. Vertical turbine fire pumps also have strong engineering adaptability, and can be customized according to water source depth, flow rate, head, pipe diameter, and on-site installation conditions to meet the pump performance requirements of different fire protection projects. For projects such as large industrial parks, petrochemical facilities, ports, power plants, and large warehouses, if the fire water source comes from underground water tanks or deep wells, using vertical turbine fire pumps can effectively solve the problem of limited water intake conditions for conventional ground pump sets. Website information also lists vertical turbine pumps as one of the commonly used pump types in fire protection systems, pointing out that typical water sources include underground water tanks and wells. In terms of long-term operation, a reasonable shaft system design, impeller hydraulic structure, and flow guide components help the equipment maintain stable hydraulic performance. Combined with proper installation, lubrication, regular inspection, and maintenance, this further ensures the operational reliability of the fire pump set. For fire protection engineering, the vertical turbine fire pump is not only a device for lifting water sources but also a crucial power core connecting deep water sources to fire protection pipe networks. Its advantages, such as eliminating the need for traditional priming pumps, adaptability to deep well water intake, high vertical space utilization, flexible head configuration, and strong engineering adaptability, make it an important choice for fire water supply projects involving deep wells and underground water tanks. Overall, the vertical turbine fire pump equipment, through its vertical long-shaft structure and deep water intake design, effectively solves the water intake and installation problems in low-level water source fire water supply. While ensuring reasonable flow and head configuration, it provides a stable fire water supply capacity for large buildings, industrial facilities, and critical infrastructure, making it a highly practical professional pumping equipment in deep well fire water supply systems.
