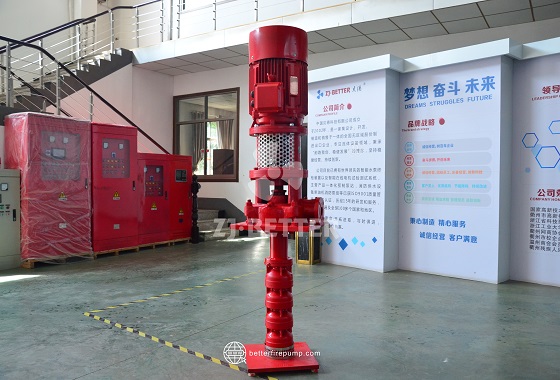

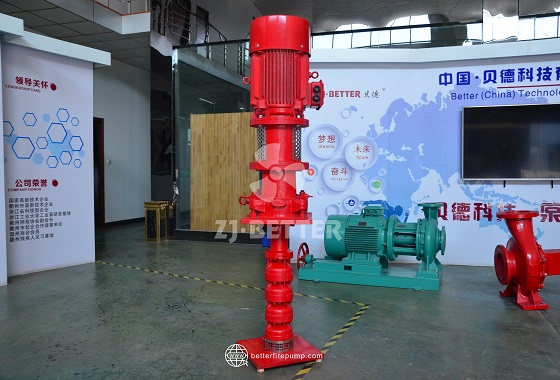

Vertical Deep Well Fire Pump for Extended Water Intake and Large Fire Systems
The vertical deep-well fire pump features a long-shaft vertical design capable of drawing water from deep sources; it supports flow rates of 30–5,000 GPM and various pressure configurations, making it suitable for deep wells, rivers, lakes, and large-scale industrial fire water supply systems.
The vertical deep-well fire pump is a type of vertical fire-fighting equipment designed for drawing water from deep sources and supplying elevated fire-fighting systems. It utilizes a long-shaft structure to connect the surface drive unit with the submerged pump assembly, enabling the extraction of fire-fighting water from deep wells, rivers, lakes, and other available sources. This equipment is particularly well-suited for fixed fire-fighting systems in large industrial facilities, warehouses, petrochemical plants, power plants, and other sites requiring a reliable fire-fighting water supply. Featuring a vertical configuration, the pump body and impeller assembly can be customized based on the depth of the water source; the intake depth can be extended by adding column pipes and lengthening the shaft system, allowing the pump unit to adapt to varying water source depths. According to official specifications, this series of vertical turbine fire pumps offers flow rates ranging from approximately 30 to 5,000 GPM, pressures between 3 and 20.5 bar, and rotational speeds of 980 to 3,550 rpm, allowing for the selection of specifications that match the specific flow, pressure, and water source requirements of the fire-fighting system. The vertical deep-well design allows the pump body to be submerged directly into the water source, making the equipment suitable for scenarios—such as deep wells or deep water sources—where standard horizontal fire pumps cannot easily draw water. Meanwhile, the surface components, including the drive motor, discharge piping, and related connections, can be arranged flexibly to suit available on-site space. The pump utilizes a long-shaft drive structure supported by bearings; the design of these bearings and the lubrication/cooling systems ensures operational stability during long-distance power transmission and minimizes friction and wear within the shaft assembly. Various drive configurations are available to meet specific project needs, including vertical hollow-shaft motors, as well as horizontal motors or diesel engines coupled via belts or gearboxes, ensuring compatibility with the power requirements of different fire-fighting projects. Regarding fire-fighting water supply performance, the vertical turbine fire pump allows for the selection of appropriate impeller stages, shaft lengths, column pipe specifications, and drive power based on design flow and pressure requirements. The multi-stage impeller structure enables the delivery of high-pressure fire-fighting water, making the pump ideal for projects requiring high head or deep-water intake. Technical specifications cover a wide range of flow and pressure ratings—such as flow rates from 30 to 5,000 GPM and pressures up to approximately 20.5 bar—providing extensive options for fire-fighting systems of various scales. Materials can be selected based on specific operating conditions—with options including cast iron, stainless steel, and bronze—to ensure optimal compatibility with water quality and the operating environment. For natural water sources such as rivers, lakes, and seawater, the pump casing and flow-path components are selected to suit actual water quality, sand content, and corrosive conditions. In large-scale fire protection projects, the equipment integrates with fire piping networks, control systems, and other fire pumps to deliver a continuous water supply in accordance with fire safety design requirements. The vertical configuration reduces the horizontal footprint typically required by conventional horizontal pump sets near the water source, making the layout ideal for deep-well extraction and large-scale fire water supply projects. For projects involving fire water reservoirs, deep wells, or natural sources requiring deep-level intake, the vertical deep-well fire pump utilizes an adjustable pump shaft and column pipe assembly to connect the submerged pump unit with the surface drive mechanism, allowing for customization based on actual water depth and system parameters. Overall, the product features a compact vertical design, robust deep-water extraction capabilities, a wide range of flow and pressure specifications, flexible drive options, and configurable shaft lengths; it provides a tailored fire water supply solution—suitable for deep-source conditions—for large industrial facilities, warehouses, petrochemical plants, power stations, and other fixed fire protection systems.
