Deep Well Vertical Turbine Fire Pump Discharge Assembly for Large Industrial Fire Systems
The discharge assembly for deep-well vertical turbine fire pumps features a compact vertical structure and a flanged connection design; suitable for large-scale industrial fire protection systems, it works in conjunction with the pump to ensure stable water extraction from deep sources and delivery to the fire protection piping network.

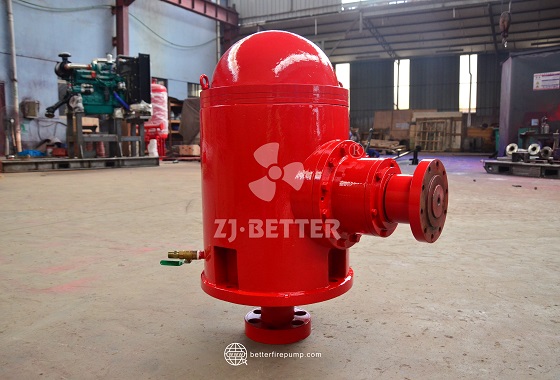

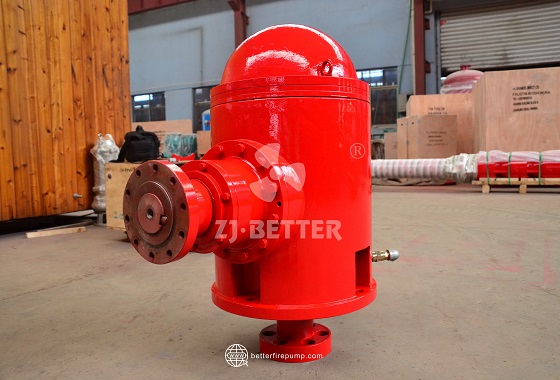

The discharge assembly for deep-well vertical turbine fire pumps is a critical structural component in large-scale fire water supply systems, serving to connect the submerged pump unit with the surface water delivery piping. It is designed for use with vertical turbine fire pump systems drawing from sources such as deep wells, fire water reservoirs, rivers, and lakes. Featuring a compact vertical design, the assembly includes a cylindrical discharge section at the top, a flanged discharge outlet on the side, and a connecting flange at the bottom; this configuration ensures a stable connection between the pump’s riser pipe and the submerged pump unit, facilitating the continuous transport of water from deep sources to the surface fire-fighting piping network. The overall system utilizes a combination of a submerged pump unit, column pipe assembly, and surface drive unit. With column pipes connected via flanges or threads, the discharge assembly is highly adaptable to fire water supply projects involving varying depths and installation configurations. The product’s compact structure minimizes the required surface footprint, making it ideal for large industrial plants, warehouses, energy facilities, and other sites requiring fixed fire-fighting systems that draw water from deep sources. The flanged connection simplifies assembly and maintenance while enhancing connection stability and on-site installation efficiency. The discharge channel features an optimized flow path that supports continuous water delivery and reduces the impact of complex piping layouts on installation space. As a vital connecting component, its structural strength, interface precision, and compatibility with the column pipe system directly influence the operational stability of the entire unit; consequently, the assembly can be configured to meet specific project requirements regarding flow rate, head, water source depth, and piping specifications. Compatible vertical turbine fire pumps offer flow rates of 30–5000 GPM, head ranges of approximately 3–20.5 BAR, and rotational speeds of 980–3550 r/min, allowing for the selection of specifications tailored to the water supply needs of various fire-fighting projects. In practical application, this discharge assembly not only establishes the hydraulic link between the submerged pump and the surface piping network but also provides a reliable mounting foundation for the deep-water intake system, ensuring the stable lifting and delivery of fire-fighting water from deep sources to the required locations. For large-scale industrial fire protection systems, this vertical configuration maximizes the use of vertical space by positioning the drive unit above ground while extending the pump body and column pipe deep into the water source; this enables the system to operate in deep-water intake scenarios where traditional horizontal fire pumps struggle to function effectively. Through the optimal selection of connection dimensions, column pipe length, and power configuration, this assembly integrates seamlessly into a complete vertical turbine fire pump system, providing stable and continuous water supply support for large-scale fixed fire protection projects.
