Dual-Power Drive: Improving Reliability and Flexibility of EJ Fire Pump Sets

The minimum rated fire pressure of dual power is 0.3MPa, and the minimum rated fire
rated work flow is 2L/S. Dual power includes motor pumps, engine pumps, pressure
stabilization pumps, diaphragm pneumatic tanks, pipes, valves, electrical control systems,
control sensors and other related accessories driven by at least two power sources. Fire
water supply equipment is continuously supplied to the fire control network by preset mode.
The arrangement is reasonable, the installation is firm, the connection is reliable, the
structure is compact and neat, and is convenient for maintenance and overhaul

Firefighting pumps are critical assets in disaster response and emergency management scenarios, where rapid and effective fire suppression is essential for protecting lives and property. These pumps can be deployed in various emergency situations, including natural disasters like wildfires, earthquakes, and floods, as well as human-made disasters such as industrial accidents or terrorist attacks.

50gpm8bar ED fire pump set

two sets 50gpm 8BAR EDJ fire pump after finish product

1. The function of the diesel fire pump is very powerful. We can set the control time during use, such as: preheating, pre-lubricating or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.
2. The head and flow can be controlled by adjusting the speed of the engine, and the height and size of the water flow become easier to control. When the nozzle is in a stable state, by controlling the engine, we can accurately spray the water source at the fire point to extinguish the fire, which also reduces the difficulty of rescue for firefighters.

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

Double power fire pump is mainly composed of electric fire pump, diesel fire pump and regulator pump, in no power supply or power supply (mains) is not normal will start the diesel fire pump, to ensure the fire water supply in these unexpected circumstances.

Diesel engine fire pumps can choose ductile iron and 304/3116 stainless steel materials, which can meet various special use conditions and technical requirements of users, and diesel engine fire pumps can be matched with different brands of diesel engines to ensure stable performance of diesel engine fire pumps. Long service life, high degree of automation.

Flow:120GPM~1500GPM
Head :H＜150m
Speed:2950-3550RPM

A multistage pump refers to a pump with two or more impellers, which can absorb and press water in stages and multiple stages, so as to lift the water to a high position, and the lift can be increased or decreased according to the needs of the pump impeller. The multistage pump can be equipped with a four-stage motor by increasing the number of impellers when the single-stage pump head needs to be equipped with a two-stage motor, which can improve the service life of the pump and reduce the noise of the unit. It is placed flat on the ground, with better stability, large flow and head, and wider application.

The equipment is a diesel engine fire pump with a flow rate of 500gpm and a pressure of 70m customized by a Nigerian customer. The pump is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

Fire pump system is made of two Electric+Diesel+Jockey pump
The main eletric components is CHNT . If schneider or other brand electrical are need, should mention it before place the order
Diesel pumps can use vertical in- line pumps, horizontal end-suction pumps,vmultistage pumps, horizontal multi-stage pumps, split casing pumps and so on according to diffenent flow and head of customers

The diesel engine fire pump has automatic, manual and fault self-inspection functions. It can monitor the working status of the whole process, restore the fault start, automatic pre-lubrication and preheating automatic restart function, and make the equipment start safer and more reliable. It has the functions of central control room remote control, remote transmission control and field bus connection. The battery is fully automatic floating charging (constant current, constant voltage, trickle charging) mode to ensure that the battery is in a standby state at any time. The diesel engine fire pump is easy to use, equipped with remote transmission meters and meters, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Reliable because of professionalism, specializing in the production of industrial centrifugal pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

The motor of this EJ fire pump set is directly connected to the pump body, which saves costs. It adopts ISW pump, and its performance parameters and technical indicators meet relevant standards. It has the characteristics of high efficiency and reasonable structure. It is suitable for industrial and urban water supply and drainage, high-rise building increase Pressurized water supply, garden sprinkler irrigation, long-distance water supply, heating, bathroom and other hot and cold water circulation pressurization and equipment.

Fire pump system comprises a combination of electric motor driven fire pump+diesel engine driven fire pump+electric motor driven jockey pumps+ control panel and other accessory.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

Diesel engine fire pump is a kind of mechatronics equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short time. Diesel engine pump set is driven by diesel, no external power supply is required. Diesel engine pump is suitable for agricultural irrigation, emergency rescue, smelting, hangar, petrochemical oil depot, power plant, liquefied gas station, textile and other fire-fighting water supply occasions, especially in the absence of electricity, When the power grid is not satisfied, it is the safest choice to use a diesel engine to drive the water pump.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The fire pump set is not installed with water inlet pipe according to customer requirements. The fire pump adopts ISW pump, which has the advantages of convenient installation and simple maintenance.The pump set consists of electric pump, diesel engine pump and jockey pump.The three pumps automatically start and stop, and they can run even if the power is cut off, without being affected by the mains.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

Fire pumps typically draw water from a reliable source such as a dedicated water tank, municipal water supply, or open water source. It’s essential to ensure that the water supply is sufficient and free from contaminants.

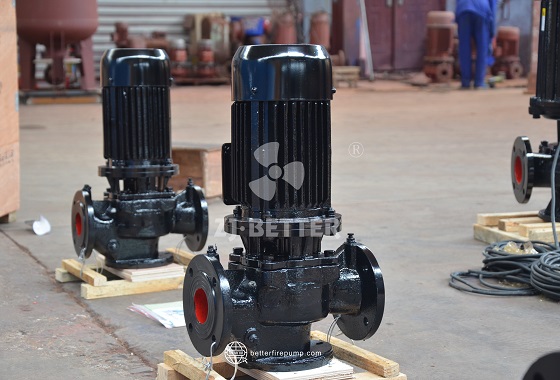

The pressure stabilizer pump is a kind of fire pump. It is used to stabilize the pressure of the automatic sprinkler system and the fire hydrant water supply system, so that the water pressure of the system is always in the required pressure state. Water volume and water pressure.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

The EDJ （Diesel Pump:IS, Electric Pump:ISW）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

This is a set of 250gpm @ 8bar fire pump sets. We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.
