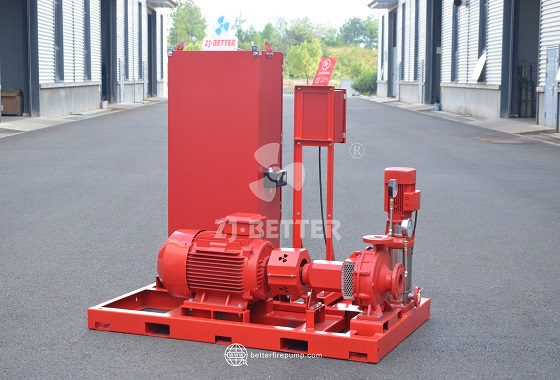

End Suction Electric Fire Pump Set with Jockey Pump for Reliable Water Supply
The end-suction electric fire pump set features a coordinated design combining a main fire pump with a vertical jockey pump. It offers advantages such as rapid startup, stable water supply, automatic pressure maintenance, a compact structure, and ease of installation and maintenance, making it suitable for industrial plants, warehouses, commercial buildings, and various fire water supply systems.
The end-suction electric fire pump unit is an integrated fire water supply system centered on a horizontal end-suction fire pump. It incorporates a vertical multistage jockey pump, a fire pump control cabinet, pressure sensing devices, valves, piping, and a common baseplate. Designed to meet both the need for maintaining daily pipeline network pressure and the requirement for high-flow emergency water supply during a fire, it is suitable for industrial plants, logistics centers, commercial buildings, office complexes, residential facilities, and other locations requiring a stable fire water supply. The end-suction fire pump features a compact structure, direct water intake, stable operation, ease of maintenance, and strong adaptability to engineering applications; the motor and pump body are connected via a reliable transmission mechanism, allowing for rapid startup when the fire system demands significant water flow, thereby delivering the necessary flow rate and pressure to fire hydrant systems, automatic sprinkler systems, and other fire protection facilities. Compared to a standalone fire pump configuration, the addition of a jockey pump enables a more efficient tiered water supply mode. During normal standby, if the network pressure drops slightly due to minor leaks, the system avoids frequently starting the high-power fire pump; instead, the low-flow, high-head vertical multistage jockey pump handles water replenishment and pressure compensation. Once the pressure returns to the set range, the jockey pump stops, maintaining the fire network at the appropriate standby pressure. In the event of a fire requiring a large volume of water, the control system detects the resulting pressure drop and activates the end-suction electric fire pump, rapidly boosting supply capacity and effectively transitioning from routine pressure maintenance to high-flow fire suppression. The synergy between the main pump and the jockey pump allows for the rational allocation of tasks based on flow requirements: the jockey pump manages low-flow pressure maintenance, while the main pump handles high-flow supply during emergencies. This approach minimizes unnecessary frequent starts of the main pump and enhances the operational coordination of the entire fire water supply system. The end-suction design offers excellent ease of installation and maintenance; the layout of key components—such as the pump casing, impeller, shaft, and seals—is clear and accessible, facilitating routine inspections, servicing, and part replacements. Furthermore, specifications such as flow rate, head, motor power, and connection sizes can be selected based on hydraulic calculations for the specific fire protection project, ensuring equipment performance aligns with the actual demands of the fire-fighting piping network. The electric drive system provides advantages such as rapid startup response, smooth operation, and convenient control, enabling the system to quickly generate the necessary pressure in locations with a stable power supply. The accompanying control cabinet enables automatic operation based on pressure feedback signals and incorporates protective features—such as overload and overcurrent protection—to enhance operational safety; meanwhile, components like pressure gauges and sensors provide real-time monitoring of network pressure, supplying essential data for automated operation and routine inspections. The integrated design is another key advantage; the main fire pump, jockey pump, control equipment, and accessories can be mounted on a common base. This reduces the installation workload associated with positioning and connecting separate components—typical of traditional pump rooms—while creating a compact, organized layout that maximizes space utilization. Depending on project requirements, the system can be equipped with check valves, gate valves, flexible joints, flanges, and inlet/outlet piping, forming a complete fire water supply unit that integrates mechanical equipment, electrical controls, and piping. Materials for the pump casing, impeller, and other wetted parts can be customized to suit specific water quality and operating conditions. With features such as rapid startup, stable flow output, automatic pressure control, coordinated operation between main and jockey pumps, a compact footprint, ease of installation and maintenance, and flexible configuration, this end-suction electric fire pump set effectively handles both standby and emergency supply modes. It provides a reliable, efficient fire water supply solution for buildings and industrial facilities of various sizes, balancing performance, automation, and installation efficiency.
