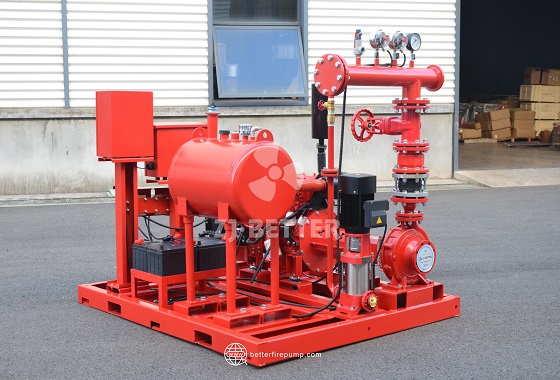

Integrated Diesel Fire Water Supply System – Centralized Engine, Pump and Pressure Control Configuration
The integrated diesel fire water supply system combines a diesel engine, fire pump, pressure control components, and a control cabinet. It can be flexibly configured to meet specific flow, head, and pressure requirements, making it suitable for emergency water supply in industrial facilities, warehouses, and large-scale fire protection projects.
The integrated diesel fire water supply system mounts the diesel engine, fire pump, pressure control components, control cabinet, pressure monitoring instruments, and associated piping onto a single common base. Powered by an independent diesel engine working in tandem with the fire pump assembly, it provides emergency water supply support to the fire protection piping network. Compared to decentralized setups, this centralized configuration minimizes inter-component connections, integrating power, pumping, pressure management, and operational control into a cohesive unit. It can be customized based on project-specific requirements—such as flow rate, head, pressure, pipe diameter, and installation conditions—making it suitable for industrial plants, logistics warehouses, commercial buildings, docks, airports, power facilities, and other locations demanding high reliability in fire water supply. Serving as the unit’s independent power source, the diesel engine drives the fire pump via mechanical transmission, offering excellent adaptability for systems with limited access to fixed power supplies or those requiring backup power; the engine’s power output is carefully matched to the pump’s flow, head, rotational speed, and actual operating conditions to ensure optimal performance. The fire pump acts as the core pumping component, converting mechanical energy into water pressure through impeller rotation to deliver water to hydrants, sprinkler systems, and the fire piping network; depending on design specifications, various pump configurations—such as single-stage, end-suction, horizontal split-case (double-suction), or multi-stage pumps—can be selected to meet specific flow and head requirements. Pressure control components work alongside sensing elements like pressure gauges and sensors to monitor system pressure; when pressure fluctuations occur, the resulting signals inform the control system’s operational logic, enabling appropriate responses and enhancing the system’s pressure management capabilities. Depending on the specific system design, the unit may also incorporate a pressure-maintaining pump (jockey pump) and a pressure tank; the jockey pump compensates for minor pressure losses during normal standby conditions, while the pressure tank provides pressure storage and buffering, helping to prevent frequent cycling of the main fire pump due to slight pressure variations and maintaining relatively stable standby pressure within the network. The control cabinet employs a centralized installation design, enabling unified management of the diesel fire pump and its auxiliary equipment. It supports automatic or manual control based on the specific configuration and integrates features such as operational status indication, pressure monitoring, fault alarms, and protective functions, thereby enhancing the convenience of equipment operation and daily management. The piping and valve assemblies are also centrally arranged; components such as check valves, gate valves, pressure gauges, pressure sensors, flanges, flexible joints, and inlet/outlet piping can be configured to meet project requirements. This layout clarifies the internal water flow paths while facilitating on-site connection, commissioning, pressure testing, and subsequent inspections. The system utilizes a skid-mounted common base to securely integrate the engine, fire pump, control system, pressure components, and accessories. This compact, highly integrated design simplifies transportation, lifting, positioning, and on-site installation, while reducing the amount of on-site connection work typically associated with installing multiple independent units. Rather than adhering to a fixed, single specification, the system is selected based on a comprehensive assessment of factors such as design flow rate, system head, pipe network pressure, inlet/outlet dimensions, diesel engine power, and the installation environment. The diesel fire pump package covers a wide range of flow and head capacities, with specific parameters determined by the actual fire protection engineering design requirements. In practical applications, this integrated diesel fire water supply system is suitable for facilities such as industrial plants, warehouses, commercial buildings, airports, terminals, petrochemical plants, and power facilities. By optimally matching the diesel engine, fire pump, pressure stabilization equipment, control cabinet, and piping accessories, the system consolidates independent power, fire pumping, pressure management, and operational control into a single unit, providing a configurable emergency water supply solution for diverse fire protection projects.
