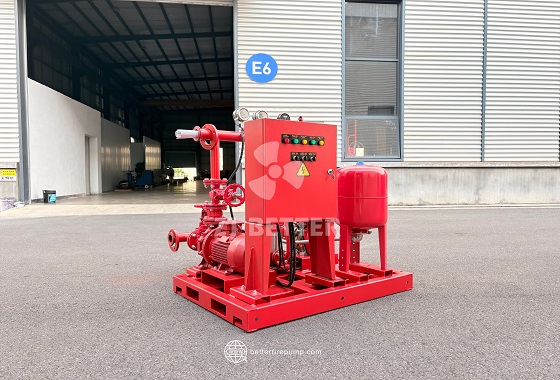

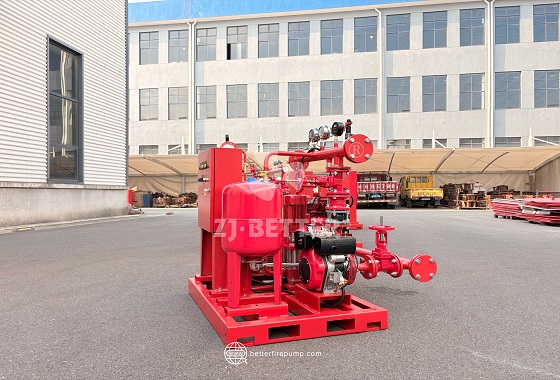

Small Packaged Diesel Fire Pump – Centralized Pumping and Control System for Better Project Adaptability
This compact, integrated diesel fire pump package combines a diesel engine, fire pump, control system, and pressure components on a centralized base. Featuring a compact structure and flexible configuration, the unit can be selected based on specific flow rate, head, and fire protection engineering requirements, making it suitable for fire water supply systems in industrial, warehousing, and building applications.
The compact packaged diesel fire pump unit is a fire water supply system that integrates a diesel engine, fire pump, control system, pressure-stabilizing components, and related accessories onto a common base frame. It is suitable for fire protection projects that require high equipment integration, compact installation footprints, and independent power sources. Powered primarily by a diesel engine, the unit reduces reliance on on-site electrical infrastructure; by optimally matching the engine’s power with the pump’s flow rate and head, the system meets the specific fire water supply requirements of various projects. Featuring a centralized, packaged design with a rational layout of pumping equipment, the diesel engine, control cabinet, and pressure components, the unit minimizes the complexities of piping connections and spatial planning associated with decentralized installations, while facilitating transport, setup, commissioning, and maintenance. Depending on project needs, the main fire pump can be configured in various structural forms—such as single-stage, end-suction, horizontal split-case (double-suction), or multi-stage pumps—tailored to the required flow and head specifications. The diesel engine is equipped with a fuel tank and cooling/heat dissipation systems to provide the necessary power for pump operation. An optional pressure-stabilizing pump can be included to maintain normal pressure in the fire piping network and compensate for minor pressure fluctuations, thereby preventing unnecessary, frequent starts of the main fire pump. The control system manages the operation of both the diesel fire pump and the pressure-stabilizing pump, enabling automatic control based on the specific configuration and providing overload and overcurrent protection. Components such as pressure gauges, sensors, and pressure tanks facilitate system pressure monitoring and management, making it easier to observe and control the equipment’s operating status. According to official specifications, the compact diesel fire pump series covers flow rates of approximately 30–3,000 GPM and pressure heads of 3–25 bar, with power ratings ranging from 3 to 355 kW; specific values are determined by the chosen model and the fire system design. In terms of structural design, the 119 Pump features a common base that consolidates the primary equipment—integrating power, pumping, and control components into a cohesive unit—making it highly adaptable for projects with limited mechanical room space or those requiring a turnkey equipment delivery approach. Accessories such as check valves, gate valves, flexible joints, flanges, pressure tanks, and inlet/outlet piping can be configured to meet specific project requirements, thereby minimizing the need for on-site procurement and equipment integration efforts. For applications such as warehouses, industrial plants, docks, airports, commercial buildings, and other fixed fire-suppression water supply scenarios, the diesel fire pump configuration can be tailored to the building scale, required fire-fighting water volume, pipeline network pressure, installation environment, and power supply conditions. Overall, the primary advantages of these compact, integrated diesel fire pump units lie in their centralized equipment layout, compact structure, and flexible configuration; they allow for targeted selection based on specific flow rate, head, and pressure requirements, effectively meeting fire-suppression needs while offering a convenient, all-in-one solution for on-site installation and operational management.
