What Are the Application Advantages of Fire Pump Systems in Industrial Settings?

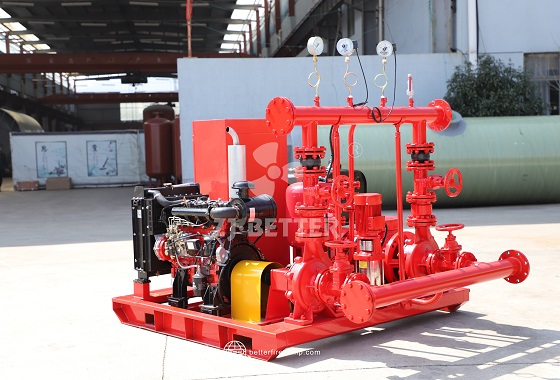

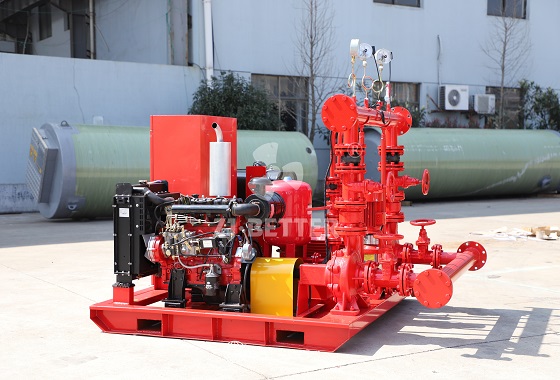

This fire pump set is composed of diesel pump and stabilized pump. It adopts IS pump, which has advantages in price and is not affected by mains electricity. It is suitable for warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships , oil tankers and other fire-fighting occasions.

Potential risks associated with diesel fire pumps include fuel spills, engine emissions, mechanical failures, and electrical hazards. These risks can be mitigated through proper risk assessment and mitigation strategies, such as implementing spill containment measures, ensuring proper ventilation in pump rooms, conducting regular equipment inspections and maintenance, and implementing safety protocols for fuel handling, storage, and disposal. Additionally, it’s essential to comply with relevant regulatory requirements and industry standards to minimize risks and ensure the safe operation of diesel fire pump systems.

Dual power fire pump consists of an electric motor driving fire pump, a diesel engine driving fire pump, a common fire pump controller, pressure vessel, standard fittings and base frame.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

DJ fire pump set is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

Compact diesel fire pump units offer independent power, quick deployment, and automatic start features, making them ideal for emergency firefighting in remote, power-limited, or high-risk areas like oilfields, warehouses, and rural sites.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Measure pump head: Plot flow vs. pressure to establish head-capacity relationships.
Use test results: Compare actual performance to manufacturer data.
Identify pump efficiency: Evaluate power consumption at different operating points.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

Fire pumps and jockey pumps work together to ensure that a fire protection system is always ready to operate at peak efficiency. The jockey pump is primarily responsible for maintaining the system’s normal pressure, compensating for minor leaks, and preventing the fire pump from running unnecessarily. When a fire occurs, and a significant drop in pressure is detected due to water discharge from sprinklers or hoses, the fire pump is activated to provide the necessary water flow and pressure. This interaction ensures that the system operates efficiently, minimizing wear and tear on the fire pump while keeping the system primed and ready for an emergency.

1. Turn off the power supply of the fire pump.

2. Close the main valve of the main pump and open the main valve of the standby pump.

3. Open the valve of the bypass line and the water supply line of the standby pump.

4. Turn on the power supply of the standby pump.

5. Check the operation status of the standby pump.

6. Close the valve of the bypass line and the water supply line of the main pump.

7. Open the main valve of the main pump.

8. Check the operation status of the main pump.

The intelligent diesel engine water pump products developed by our factory are equipped with an unattended intelligent system as standard configuration. The product has the characteristics of mature technology, high degree of automation, reasonable structure and easy installation. At the same time, in order to meet the different needs of users and reasonable investment, the products are divided into multiple application series such as fire pumps, industrial emergency pumps, agricultural water pumps, marine water pumps, trailer mobile water pump stations, etc., which can be linked and switched with electric fire pumps.

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

When the water supply doesn’t have enough pressure, a fire pump can be an excellent solution to the problem, as long as the pump is sized correctly. The fire pump is selected by five factors: liquid delivery volume, device lift, liquid properties, pipeline layout and operating conditions.

The ZWX box-type non-negative pressure water supply equipment is a pressurized water system designed to address inadequate municipal water pressure in critical settings such as hospitals and hotels, where water cannot be shut off. It also serves as an ideal solution for meeting the domestic water needs of high-rise buildings and, specifically, fulfilling the water requirements of schools. This equipment ensures a continuous water supply, even during maintenance or emergency situations, effectively resolving the challenges posed by low water pressure. With its efficient pressurized water supply and advanced control technology, the ZWX equipment offers stable water pressure and flow rates, catering to the diverse demands of different settings. Furthermore, its intelligent operation and energy optimization contribute to reduced energy consumption.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

The small EJ fire pump set is suitable for low buildings. The fire pump set consists of an ISW electric pump and a CDL jockey pump. The ISW pump is easy to install and maintain, no need to disassemble or move the piping system, just lift the pump to connect the flat nut to take out all the rotors part. The impeller is directly mounted on the main shaft of the motor, with a short axial dimension and a compact structure, which can calibrate the rounding of the pump to effectively generate radial and axial loads, thereby ensuring smooth operation, vibration and low noise of the pump.

The lifespan of a fire pump motor or engine varies based on factors like usage, maintenance, and the quality of the equipment. However, they are typically designed to be durable and long-lasting.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

Fire pumps for firefighting are mainly used to deliver water to pipelines, or to drain water in cities and industries, and to deliver water to high-rise buildings. This is similar to the need to deliver water due to some cold and hot cycles in long-distance situations. What kind of equipment is used.

Outline the specific installation requirements for fire pumps, such as space considerations, accessibility, and adherence to NFPA 20. Explain how correct installation ensures reliability and ease of maintenance, and discuss the importance of proper alignment, securing power sources (for electric pumps), and ventilation (for diesel pumps).

The electric fire pump set is powered by a motor from a well-known manufacturer. At the same time, it can be equipped with low-voltage, high-voltage and explosion-proof motors with different protection levels according to the user’s use environment and conditions. It is characterized by simple operation and maintenance, low noise, and less equipment requirements.

Our versatile fire pump system is designed to meet the diverse and complex fire protection requirements of industrial, commercial, and high-rise buildings. Whether it’s an oil refinery, a commercial complex, or a modern high-rise residential tower, our fire pump system delivers robust hydraulic support, ensuring that fire suppression systems can quickly respond and perform at their best in the event of a fire.

This fire pump system features dual power configurations with both diesel engines and electric motors, making it capable of handling emergency situations such as power outages. The system is equipped with a smart control panel, enabling features like automatic start/stop, fault alarms, and system self-checks, ensuring long-term stability and reliability of the equipment. No matter how complex or harsh the environment, our fire pump system provides a stable, efficient, and continuous water supply.

Additionally, the system’s compact design makes installation and maintenance easy and convenient, accommodating various space requirements. Fully compliant with international fire protection standards, our fire pump system is the ideal solution for fire safety in all types of building projects.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

DJ Fire pump package set
Fire pump system is made of Diesel+Jockey pump
The pump model is the OTS series.
Pump: Horizontal split case type pump

500gpm8bar EDJ waiting for dispatch

ISO series centrifugal pump is a single-stage single-suction centrifugal pump developed by China Better Technology Co., Ltd. with reference to international similar products using modern fluid mechanics to meet the international standard ISO9908 secondary energy efficiency standard.
This product combines the strengths of similar products in China and abroad and is designed with excellent hydraulic models, therefore, its excellent hydraulic performance and structural features ensure that the user can effectively reduce the operating cost of the pump in various applications.
