Standard Complete Set Of Fire Fighting Equipment

Discover the key differences between electric and diesel fire pumps to choose the right option based on reliability, power source, cost, and compliance.

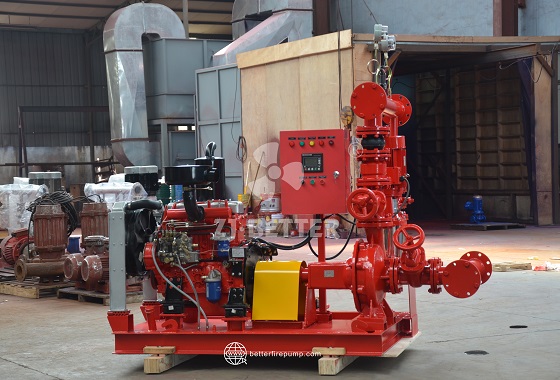

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

Horizontal split case fire pumps deliver high efficiency and stable performance under heavy-duty conditions. Ideal for industrial, energy, and high-rise building fire protection systems with large flow and high head demands.

The electric pump of the EDJ fire pump group is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive electricity from the The signal from the contact pressure gauge will start the diesel engine pump within 5 seconds, and reach the rated working condition within 20 seconds to ensure the normal operation of the fire extinguishing work.

Due to its stable performance and high frequency of use, diesel engine fire pumps can be matched with various domestic and foreign brands of diesel engines according to user needs, and can be selected according to the required head, flow, power and fire pump material requirements to ensure stable use by customers. Diesel engine fire pumps operate automatically It is simple, adopts good hydraulic design and structural design, and has high operating efficiency. It is very suitable for applications in warehouses, docks, power plants, textiles and other enterprises.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

Flow: 30-9000GPM
Head:3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
Material:SS304, Bronze

The small EJ fire pump set is suitable for low buildings. The fire pump set consists of an ISW electric pump and a CDL jockey pump. The ISW pump is easy to install and maintain, no need to disassemble or move the piping system, just lift the pump to connect the flat nut to take out all the rotors part. The impeller is directly mounted on the main shaft of the motor, with a short axial dimension and a compact structure, which can calibrate the rounding of the pump to effectively generate radial and axial loads, thereby ensuring smooth operation, vibration and low noise of the pump.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 6 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Fire pumps are not always running; they typically start automatically when a drop in water pressure is detected in the fire protection system.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The diesel engine-driven fire pump complete set highlights its ability to supply water independently even in the event of power failure or emergency. The product integrates diesel engine, water pump, control system and piping system, with automatic start, stable performance, convenient operation and other characteristics. It is suitable for all kinds of places with high requirements for fire fighting, such as industrial parks, petrochemicals, power plants and municipal projects, etc., and is an important equipment for ensuring fire safety.

Fire pump systems, like any mechanical equipment, can face various challenges that impact their performance and reliability. Some common issues include:

Cavitation: This occurs when there’s excessive pressure drop in the suction piping, causing vapor bubbles to form within the pump. Cavitation can damage the pump and reduce its efficiency.

Overheating: Fire pumps generate heat during operation. Overheating can lead to pump failure, so proper cooling and ventilation are essential.

Blockages: Debris or obstructions in the piping can impede water flow, reducing the pump’s effectiveness.

Wear and Tear: Like any mechanical equipment, fire pumps experience wear over time. Regular maintenance is essential to replace worn parts and ensure longevity.

Identifying and addressing these challenges promptly is essential for maintaining the functionality and reliability of fire pump systems.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The outdoor fire pump set can be customized according to customer needs, and can include electric pumps, diesel engine pumps, and jockey pumps, with excellent appearance and easy installation.

EDJ series fire pump set consists of electric pump + diesel pump + Jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps – the electric pump and the pipe charging pump work when there is electricity, and the diesel pump when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

Dual power fire pump has high efficiency, remarkable energy-saving effect, compact structure, low noise, small floor area, saving investment and energy, and has obtained UL certification.

Flow:120GPM~1500GPM
Head :H＜150m
Speed:2950-3550RPM

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance.

The biggest problem in the event of a fire is to ensure continuous fire-fighting power. If the fire is not extinguished in time due to insufficient supply of raw materials, it will cause huge economic losses. Therefore, high-quality fire pumps must be selected to avoid quality problems. , resulting in irreparable damage.

There are many types of fire-fighting equipment, fire hydrants and fire extinguishers are a common category, and there is also a category of fire pumps, which can be described as the heart of the fire-fighting system and play an important role in pressurising the water supply for the fire-fighting system. Among the many fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

Multi-stage pumps have high efficiency, corrosion resistance, reliable operation and other properties, strong bearing capacity of the pump body, strong resistance to overload and more sensitive start. Ltd. introduces you to the relevant features of multi-stage pumps. First of all, Shanghai Xizhiquan multi-stage pumps have a compact structure, with small spacing between parts and small volume. The equipment runs smoothly, has a long service life and produces less vibration during operation, so the practical life of the equipment is correspondingly long.

With its unique structure, the direction of the water inlet and outlet can be adjusted according to different needs, so it is suitable for various place environments. The direction of the inlet and outlet is horizontal, which reduces the number of bends in the pipeline connection, thus simplifying the pipeline connection and greatly enhancing the efficiency of the fire fighting system.

The efficient operation of the multistage pump is used in many larger, more demanding fire-fighting locations. Its role is mainly to play a role in the fire fighting pipeline system to pressurise and send water, multi-stage pumps are not only suitable for all kinds of fire fighting systems, but also for industrial drainage, high-rise building water pressure supply, long-distance water delivery, water circulation pressure and other occasions.

Learn the required methods for fire pump testing, including weekly churn tests and annual flow tests, to comply with NFPA 25 and ensure peak performance.

The fire pump is used to pump all kinds of liquids. It is an ideal pump and fire protection system for creating non-leakage, non-pollution civilized workshops and civilized factories. It is often installed on fire trucks, fixed fire extinguishing systems or other fire-fighting facilities for transportation Special pumps for liquid extinguishing agents such as water or foam solutions. Fire pumps are widely used in environmental protection, water treatment, fire protection and other departments.

Learn what a fire pump test header is, how it works, and why it’s a key component for performance testing and NFPA 25 compliance.
