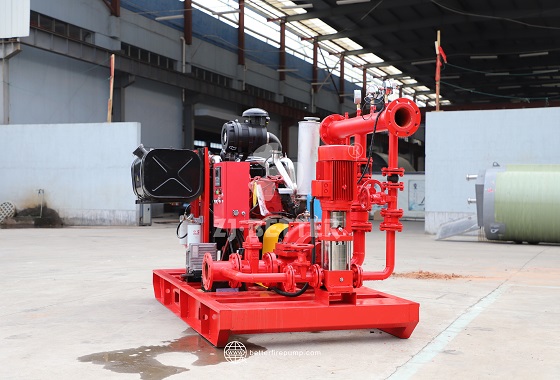

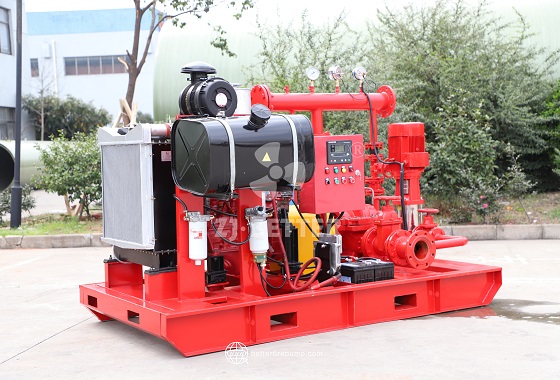

Integrated Diesel Fire Pump Unit with Complete Power, Piping and Control Configuration

The integrated fire pump unit adopts a modular design, incorporating the pump, drive equipment, control system, and pipeline components into a single base to enhance system stability and ease of installation. This equipment is suitable for high-rise buildings, industrial facilities, the petrochemical industry, and other locations with high fire protection requirements.

The unit is equipped with a high-performance electric motor or diesel engine as a power source, ensuring a stable water supply in emergency situations. The pump features a high-head and large-flow design, meeting various firefighting demands and ensuring rapid water delivery in case of fire. The intelligent control system continuously monitors operating conditions and can automatically start or stop the pump according to preset parameters, improving fire response efficiency.

With a compact structure and small footprint, the unit is ideal for installations with space constraints. The optimized pipeline and valve design reduce fluid resistance and enhance transportation efficiency. Constructed from corrosion-resistant materials, the system ensures long-term operational stability and durability while minimizing maintenance requirements.

This integrated fire pump unit complies with relevant international standards, making it suitable for different regional fire safety regulations and widely applicable to various scenarios requiring efficient and reliable fire water supply.

Discover the performance, advantages, and comprehensive integration of the diesel engine fire pump system. Engineered for reliability in emergencies, this system ensures high flow, rapid response, and continuous water supply for industrial and municipal fire protection.

The minimum rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum rated capacity is 25 GPM.EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories,measurement and control instrunnents, control cabinets, outdoor rain cover, etc.

EDJ 500gpm@8bar Fire pump set test
We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Electric fire pump units are efficient, intelligent, and energy-saving fire-fighting water supply equipment, featuring stable water pressure output, low noise, easy maintenance, and long service life. Their automated control system enables remote monitoring and intelligent start-up, making them suitable for high-rise buildings, industrial plants, warehousing centers, and other locations. They ensure continuous water supply and safe operation during fires, providing reliable protection for modern fire protection systems.

This fire pump features an advanced hydraulic design that optimizes flow channel structure, effectively reducing hydraulic losses and improving operational efficiency. The high-efficiency impeller and precisely optimized fluid dynamics ensure a smoother water flow, minimizing turbulence and energy loss for better energy conversion.

Additionally, the pump is equipped with a high-performance sealing system that minimizes leakage, ensuring long-term stable operation while reducing maintenance costs. The pump body is made of corrosion-resistant materials, extending its lifespan and maintaining high performance even in harsh environments.

In real-world applications, this fire pump is widely used in industrial, commercial, and high-rise building fire protection systems, providing reliable fire suppression when it matters most.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

The box-type fire pump is a combination of the advantages of all pumps, without the need to build a pump station, saving costs, mobile, including electric pumps, diesel pumps and jockey pumps. It is a standard fire pump set. In the form of equipment, there is no need to worry about the failure of the pump, the structure design is exquisite, the building space is effectively reduced, the construction is convenient, the maintenance is simple, and the comprehensive investment in fire protection is reduced.

Diesel Powered Fire Pump Systems provide independent operation, rapid emergency start-up, high-flow water supply, stable pressure performance, and continuous-duty reliability for industrial facilities, warehouses, power plants, petrochemical projects, ports, and large-scale fire protection applications requiring 24/7 firefighting readiness.

The electric fire pump station solution integrates a main fire pump, a pressure-stabilizing pump, an intelligent control cabinet, and an automatic control system. It boasts advantages such as constant pressure water supply, automatic start/stop, automatic backup pump switching, remote monitoring, energy-saving operation, and multiple safety protections. It provides stable and reliable fire water supply for high-rise buildings, commercial complexes, industrial parks, hospitals, airports, warehousing and logistics centers, and large public facilities, representing a high-performance water supply solution for modern fixed fire water supply systems and large-scale building fire protection projects.

Flow:120GPM~1500GPM
Rated pressure: < 150m Speed: 2950 to 3550 RPM

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. Diesel engine pumps are driven by diesel and do not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is the safest choice to use a diesel engine to drive the water pump.

Deep well submersible pumps are designed for narrow spaces and deep water extraction, featuring high head, large flow, corrosion resistance, low noise, and energy efficiency. With intelligent control and reliable long-term operation, they are ideal solutions for fire protection, urban buildings, tunnels, and mine drainage.

The vertical pipeline fire pump and pressure stabilization system for industrial plants are designed as an integrated unit, featuring high head, large flow rate, automatic start/stop, intelligent control, and energy-saving pressure stabilization. With its compact structure and stable operation, it is suitable for sprinkler systems and fire hydrant systems, providing efficient and reliable fire water supply solutions for various industrial parks and production workshops.

Compact diesel fire pump units offer independent power, quick deployment, and automatic start features, making them ideal for emergency firefighting in remote, power-limited, or high-risk areas like oilfields, warehouses, and rural sites.

Compact fire-fighting water supply equipment has the advantages of high-efficiency water supply, space saving, intelligent control and low energy consumption operation, and is suitable for high-rise buildings, underground pump rooms, commercial complexes and industrial fire protection projects.

1. Connection form

The vertical water pump is connected with the motor by the coupling, which needs to be aligned regularly; the perpendicular water pump is superimposed and connected from the bottom to the top, and the perpendicular water pump is generally called the channel pump.

2. Installation form

Compared with perpendicular water pumps, perpendicular water pumps are easier to install. The vertical pump set is handed with a base, and perfection adaptation is needed after installation.

3. conservation difficulty

Since the perpendicular water pump is composed of upper and lower layers, the conservation of the perpendicular water pump is more delicate. For illustration, to repair the impeller, it’s necessary to remove all the corridor above the impeller before repairing; while the vertical water pump is fairly easy. For illustration, the IS type pump can perform impeller conservation by removing the bay pipe.

4. bottom space

It can be seen from the appearance that the vertical water pump has a base due to its vertical structure, so it occupies a large area.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

Regular maintenance is crucial to keep fire pumps in optimal condition. It involves inspecting, lubricating, and replacing components as needed. Maintenance helps prevent malfunctions, ensures reliability, and extends the life of the pump.

The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.
All products are tested before delivery to ensure no quality problems.
As for after-sales problems, we can dispatch engineers to solve them on site, so you can buy our products at ease.

The basis for the selection of fire pumps should be based on the process flow, water supply and drainage requirements, and be considered from five aspects, namely, liquid delivery volume, device lift, liquid properties, pipeline layout, and operating conditions. Fire pumps are mainly divided into vertical and horizontal types. The flow rate of the conveying liquid is one of the important performance data for pump selection. It is directly related to the production capacity of the entire device. The working conditions of the fire pump: flow rate: 2～1400m3/h, Head: 5～130m, maximum working pressure of the system: ≤1.6MPa, working temperature: -15℃～+80℃.

Multiple parallel electric fire pump sets support flexible flow and pressure regulation, are highly efficient and energy-saving, operate stably, and feature automatic control and redundant design. They are widely used in high-rise buildings, industrial plants, and large public facilities to ensure the safety of emergency water supply in fire situations.

Vertical multistage fire pump systems provide high-pressure fire water supply solutions, featuring advantages such as high head, high efficiency, and compact structure. They are widely used in high-rise buildings, commercial complexes, and industrial fire protection projects to ensure the stable and reliable operation of fire protection systems.

The fire-fighting constant pressure pump station solution integrates high-efficiency electric fire pumps, intelligent constant pressure control systems, automatic control cabinets, and pressure monitoring devices. It has advantages such as stable constant pressure, automatic start-stop, energy-saving operation, safety protection, convenient maintenance, and intelligent monitoring. It is widely used in high-rise buildings, commercial complexes, industrial plants, hospitals, schools, data centers, and municipal fire protection projects, providing a reliable, efficient, and continuous fire water supply solution for fixed fire protection systems.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Diesel engine fire pumps are widely used in water supply and firefighting work in the field of firefighting, such as building firefighting, fire fighting, rural firefighting, etc. The diesel engine fire pump has the advantages of quick start, stable operation, large water flow, long service life, etc., and can meet the fire protection needs of different occasions.

This fire pump set can be used outdoors, integrated pump station, no need to build another pump room, cost saving, composed of electric pump + diesel pump + jockey pump, three pumps automatically start and stop, when the stabilizer pump detects When the electric pump fails to run normally, the diesel engine pump starts automatically, which is not affected by the mains, and can also be used when the power is cut off. The fire pump set is widely used in various emergency firefighting occasions.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The intelligent control system plays a critical role in modern electric fire pumps. By integrating advanced sensors and control panels, the electric fire pump can continuously monitor key parameters such as water flow, pressure, and temperature, automatically adjusting the pump’s operation to ensure stable water pressure delivery. In emergency situations, the intelligent control system responds quickly, ensuring the pump starts promptly and provides the required water flow and pressure, facilitating smooth firefighting operations.

In addition to improving response time, the intelligent control system offers fault alerts and remote monitoring capabilities, reducing the need for manual intervention and enhancing the reliability and safety of the equipment. The system’s automated design effectively reduces maintenance costs and extends the pump’s service life, making it an indispensable component in modern fire protection systems.
