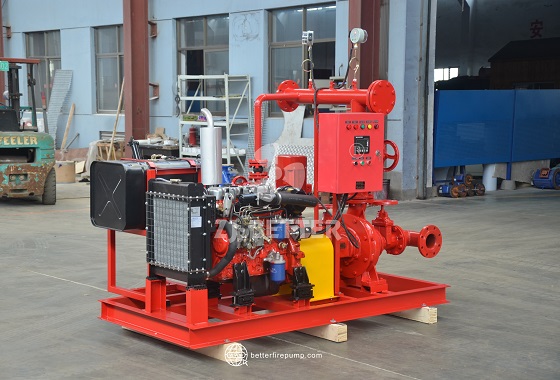

Stand-Alone Diesel Fire Pump System Ideal for Power Outage and Off-Grid Fire Protection

This diesel fire pump adopts OTS pump, which has large flow and fast speed. The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working status of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable.

While diesel fire pumps are primarily designed for firefighting purposes, they can also be used for other applications that require high-pressure water pumping, such as irrigation, dewatering, or water transfer in industrial settings. However, it’s essential to ensure that the pump is compatible with the intended use and that any modifications comply with applicable regulations and safety standards.

As environmental concerns become more prominent, there is growing interest in environmentally friendly firefighting pump options. This includes pumps that use biofuels or alternative energy sources such as solar power, as well as pumps designed to minimize emissions and reduce environmental impact during operation.

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power). The fire pump equipped in the unit is a horizontal single-stage and multi-stage fire-fighting special pump. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery pack, intelligent automatic control panel, etc.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.
Diesel engine fire pump unit is a kind of pump equipment that is widely used in fire protection, and it is more suitable for mobile work in fire pumps. In fact, it is driven by a diesel engine connected to the pump head of the fire pump. Compared with motor drive, it can be used in the field, mines, and places lacking power supply. It is also called a diesel engine pump or a diesel engine fire pump unit.

The XBC 11.5-160-S Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations. The XBC 11.5-160-S Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The XBC-D Diesel Engine Fire Pump is specifically designed for various firefighting locations, including factories, commercial buildings, residential areas, and public facilities. It provides a reliable source of firefighting water and increases water pressure to meet emergency water supply and firefighting needs, especially in situations without electricity supply or during power outages.

Flow：80-4000 GPM
Head：3-15 Bar (45-220 psi)
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa

This series of pump is horizontal multistage single suction centrifugal water pump. This pump is efficient , reliable, and durable with low noise performance, easy maintenance and wide scope of usages.

The multistage pump has high efficiency, corrosion resistance, reliable operation and other performances. The pump body has strong bearing capacity, strong anti-overload ability, and relatively sensitive start-up. First of all, the multistage pump has the characteristics of compact structure, the distance between parts is small, and the volume is small. The operation of the equipment is stable, the service life is long, and the vibration generated during operation is small, so the practical life of the equipment is relatively long.

Flow max.:100gpm
Pressure: 0.7 mpa
Material: Cast iron

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

It can be started without electricity to replace the electric pump to complete the work，The viscosity is higher than that of gasoline, which is not easy to evaporate and saves fuel.The pressure and flow range of the equipment can meet the needs of all fire-fighting occasions.

The biggest difference between a diesel fire pump and an electric pump is that it has its own independent power supply system, which ensures the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

The XBC-JC Diesel Engine Driven Vertical Turbine Fire Pump is a reliable and efficient hydraulic solution designed for extracting water from deep wells and hot springs. With its unique long shaft design and advanced technology, this pump delivers powerful pumping capacity and lift height, swiftly transporting large volumes of water to desired locations. Its compact structure makes it suitable for various complex working environments, including construction sites and agricultural irrigation. Equipped with an automatic start-stop function, the XBC-JC pump intelligently controls its operation, saving energy and reducing maintenance costs. It finds versatile applications in firefighting, urban water supply systems, and hot spring facilities, providing dependable hydraulic support for smooth operations.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Flow：250-10000 GPM
Head： 3-16 Bar
Power：11-1000 kw
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

XBC-D Diesel Fire Pump Set is a versatile and reliable firefighting solution designed for a wide range of applications. Whether it’s industrial facilities, commercial buildings, residential complexes, or public infrastructure, the XBC-D Diesel Fire Pump Set ensures effective fire protection. With its robust design and advanced features, this pump set is ready to tackle emergencies and safeguard lives and properties in various firefighting scenarios.

Flow：80-2700 GPM
Head：10-24 Bar 145-350 psi
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤2.5 MPa

The XBC-IS 10/50 fire pump has a wide range of applications. It is suitable for fire protection systems in various buildings, factories, warehouses, ports, and ships. Whether you are in a large office building in the city center or an industrial area far from the city, the XBC-IS 10/50 fire pump can provide reliable firefighting support in emergency situations. It is an ideal choice for equipping your fire protection systems.

The biggest difference between diesel engine fire pump and electric water pump is that it has its own independent power supply system – battery. Therefore, the start and operation of diesel engine fire pump will not completely depend on city power.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Flow：250-10000 GPM
Head：3-16 Bar
Power：11-1000 kw
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

1. The coetaneous operation system should be espoused during the disassemblyprocess.However, try to turn the bolts unevenly, If two people operate at the same time.
2. The use of sealing glue can seal, help leakage, strain and block gaps, and achieve the purpose of precluding oil painting leakage.
3. Use the sculler as much as possible where possible to unnaturally break the synchronization problem.

As a common necessary facility, diesel engine fire pumps are automatically started when the fire signal is coming and the electric water pump failure or the power supply is disconnected. The diesel engine fire pump and the electrical instrument are installed together, with complete functions, compact structure, automatic alarm, accepting the start signal, and can automatically complete the startup program and fast full load operation. It is enough to ensure that the diesel engine fire pump is started at low temperature environments. The entire system of diesel engine fire pump is safe and reliable, and it is convenient to use.

Standard:
       UL    Flow：50-2000 GPM    Head： 80-250 PSI
       NON-UL   Flow：50-5000GPM   Head： 40-250 PSI

For large-scale industrial facilities, airports, water plants, and municipal projects, selecting a reliable and high-efficiency fire pump system is crucial. This split case fire pump system is engineered with a horizontal design and is available with both diesel engine and electric motor drive options. It features high flow rates, excellent head performance, and strong anti-cavitation capability.

The double-suction design minimizes axial thrust, ensuring smoother operation and longer service life—ideal for continuous-duty firefighting applications. With its modular construction, the system is easy to install and maintain on site, helping reduce project timelines and operational costs.

Whether deployed in petrochemical zones, power plants, or urban complexes, this split case fire pump system provides robust protection for your fire water supply infrastructure

XBC-XA diesel engine fire pump has the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, high degree of automation, is an advanced, reliable performance of fire equipment. The product flow range is wide, its application can almost meet the fire protection requirements of various occasions.

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

For large fire pumps, diesel fire pumps are presently the hottest fire pumps on the request, especially large storages, jetties, airfields, petrochemicals, power shops, and thawed gas stations, which frequently bear similar large inflow and high power fire pumps. still, unlike the current domestic request, there aren’t numerous professional manufacturers of diesel engine fire pumps, and the models aren’t colorful. As far as XBC- IS diesel engine fire pumps are concerned, it has its own characteristics.
