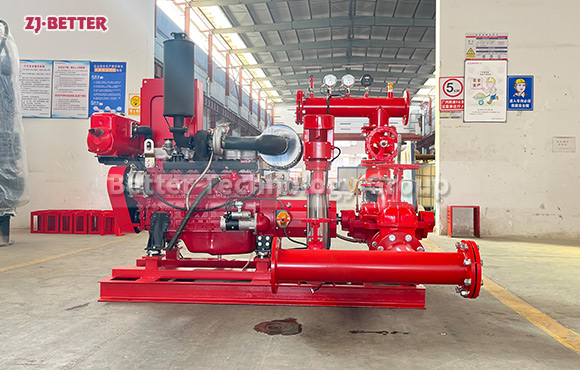

Excellent Performance 750GPM 10Bar Diesel Split Case Fire Pump

A fire pump system typically includes the pump itself, a driver (usually an electric motor or diesel engine), a controller, and various accessories like suction and discharge piping, check valves, and pressure gauges.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. The diesel emergency water supply pump set is suitable for unattended emergency water supply systems. The product has the characteristics of high automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly loses power, the diesel emergency water supply pump set automatically starts to replenish pipe network pressure.

The diesel engine fire pump has a wide range of lift and flow, which can fully meet the fire water supply in various occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

Type QJ pumps are used for pumping normal temperature water and warm water under 100°C from wells, river, lake , sea. It better used for city, factory dirty water and water containing great sand in river and sea, widely used in factories and mines, city and countries, petrolatum filed, plant and irrigation on farmland.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

This is a large-flow diesel fire pump. Diesel fire pumps are suitable for high-lift and high-flow fire-fighting environments. Because the diesel engine has strong power, it can drive a large pump. The large pump is what we often call a high-lift and high-flow centrifugal pump. , and can maintain the stability and work efficiency of the equipment.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

The main heat dissipation methods of diesel engine fire pumps can be divided into two types: wind heat dissipation and water heat dissipation. According to the two heat dissipation principles, the water heat dissipation system dissipates heat evenly and has a good heat dissipation effect. The relative price is also relatively low, so most diesel fire pumps mainly use water for heat dissipation. Wind cooling is divided into two types: natural wind and forced wind. Natural wind uses the airflow coming in from the machine in motion to directly cool the cylinder head, cylinder block and other parts; The airflow at the place increases the cooling rate and area. The principle of water heat dissipation is to use water or antifreeze as the cooling medium to take away the heat of the high-temperature parts of the diesel engine fire pump engine to ensure the normal working temperature of the engine.

The Diesel Engine with Mixed Flow Pump is an advanced firefighting and rescue equipment. This combination consists of a robust diesel engine and an efficient mixed flow pump, offering advantages such as independent power supply, high performance, agile mobility, versatility, and cost-effectiveness. During sudden fire emergencies, the Diesel Engine with Mixed Flow Pump operates autonomously, requiring no external power source, and rapidly provides a substantial water supply to minimize fire damage. Its exceptional mobility allows firefighters to swiftly transition and address ever-changing disaster scenarios. It is suitable for various environments, especially in areas with unstable power supply, where it maintains its peak efficiency. Moreover, this equipment is cost-effective, easy to maintain, and offers long-lasting firefighting assurance.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more.

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Flow：250-10000 GPM
Head： 3-16 Bar
Power：11-1000 kw
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The national standard name of the diesel engine fire pump is “engineering diesel engine fire pump set”, and the national standard model is XBCL/Q, where L is the lift value and Q is the flow value. The XBC diesel engine fire pump set is newly issued according to the national standard GB6245-2006 “Fire Pump Performance Requirements and Test Methods”. This series of products has a wide range of head and flow, which can meet the fire water supply in various occasions of industrial and mining enterprises such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, and textiles.
The diesel fire pump has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is a reliable fire-fighting equipment.

Looking for a powerful and dependable fire pump? The XBC 6/55-S 67kw Diesel Engine Fire Pump is designed for medium to large-scale firefighting needs. With its robust 67kw diesel engine and high-efficiency water pump system, it delivers reliable performance and strong water pressure. Versatile in its applications, it is suitable for industrial facilities, commercial buildings, public infrastructure, and large residential areas. Featuring an advanced automated control system, it ensures seamless operation and real-time monitoring. Trustworthy and durable, it is built to withstand demanding conditions and provide long-lasting performance. Secure your fire protection with the XBC 6/55-S 67kw Diesel Engine Fire Pump today!

Generally speaking, we recommend that where natural ventilation is used to install diesel engine fire pumps, there must be vents and exhaust ports of sufficient size, and the position of the vents ensures that there is enough fresh air to supply the diesel engine for combustion within the temperature limit. Of course, the water supply radiator can also be used to take away the heat of the circulating cooling water and the heat emitted from the surface of the unit. If the space cannot meet the requirements of natural ventilation and cannot effectively dissipate heat, it is recommended that you adopt forced ventilation, install an intake fan and an exhaust fan at the vent, and choose a location that can provide enough cold air for the diesel engine and take away the machine room hot air inside. Generally speaking, the air intake of the unit should be 6-7 times that of the diesel engine. Only in this way can normal ventilation be ensured and the operating efficiency of the equipment can be improved.

In addition, it must be fixed firmly so that the entire unit can be supported to ensure that the unit is in a horizontal state and absorb vibration. Generally speaking, the foundation of the unit adopts a concrete structure. The length and width are 150-250mm on one side of the length and width of the unit chassis, and the depth is 300-600mm. The height of the anchor bolts should be about twice the bolt diameter. And there should be a 750mm channel on both sides and front of the unit to facilitate the operator’s inspection and general maintenance.

In order to avoid the wear of the diesel engine fire pump, a shaft sleeve is installed to protect the part where the shaft passes through the packing cavity. An O-ring is installed between the sleeve and the shaft to prevent air intake or water leakage along the mating surface. The transmission mode of the diesel engine fire pump is connected with the electric motor by lengthening the elastic coupling. The rotation direction of the pump, viewed from the driving end, is clockwise. The inlet and outlet flanges of the diesel engine fire pump are designed according to the pressure of 1.6Mpa, and the pipeline is convenient to match.

1. Make sure all valves are open and the system is in good working order.

2. Check the fuel filter for any debris, and replace as needed.

3. Adjust the governor control to reduce the RPM of the engine, and limit fuel consumption.

4. Regularly inspect, clean and replace the air filter to ensure maximum efficiency.

5. Maintain the fuel injection system to minimize fuel wastage.

6. Use synthetic oil instead of petroleum-based engine oil.

7. Reduce the demand on the fire pump by using water pressure regulators or other available techniques.

8. Use the most efficient fuel type for the engine.

9. Use the most efficient nozzle size for the fire pump.

10. Use a variable frequency drive to reduce the engine speed and conserve energy.

1. Diesel self-priming pump is suitable for urban environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, papermaking, industrial and mining washing, equipment cooling, etc.
2. The diesel engine self-priming pump is equipped with a rocker-type sprinkler, which can also spray the water into the air and spray it into small raindrops. It is a good tool for farms, nurseries, orchards and vegetable gardens.
3. The diesel engine self-priming pump is suitable for clear water, sea water and chemical medium liquid with acidity and alkalinity and slurry with general paste (media viscosity <100 centipoise, solid content up to 30%). 4. The diesel engine self-priming pump can be used with any type and specification of filter press, and the most suitable pump type for pressure filtration when the slurry is sent to the filter press.

Flow：80-4000 GPM
Head：3-15 Bar
Power：11-1000 kw
The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

Flow：2000 GPM
Head：12Bar
The Diesel Engine Split Case Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The XBC-JC Diesel Engine Driven Vertical Turbine Fire Pump is a reliable and efficient hydraulic solution designed for extracting water from deep wells and hot springs. With its unique long shaft design and advanced technology, this pump delivers powerful pumping capacity and lift height, swiftly transporting large volumes of water to desired locations. Its compact structure makes it suitable for various complex working environments, including construction sites and agricultural irrigation. Equipped with an automatic start-stop function, the XBC-JC pump intelligently controls its operation, saving energy and reducing maintenance costs. It finds versatile applications in firefighting, urban water supply systems, and hot spring facilities, providing dependable hydraulic support for smooth operations.

Since the operation of the electric water pump is inseparable from electricity, and the power supply is often cut off at the scene of a fire accident or the power supply is automatically closed due to a fire. Even if we are equipped with a dual power supply switching device, it is really impossible to ensure that the power grid must be normal when the fire alarm signal comes. Therefore, starting and running a diesel engine fire pump completely disconnected from the grid becomes the preferred equipment for backup fire protection facilities! The driving power of diesel engine fire pumps is completely different from that of electric water pumps, so their daily protection and treatment are also different in many places!

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric motor fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The electric fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The XBC-OTS Diesel Engine Fire Pump is an essential equipment in firefighting systems, designed to meet emergency firefighting needs. Whether during power outages or in the absence of electricity supply, it provides reliable water supply and increases firefighting water pressure to ensure smooth firefighting operations.The XBC-OTS Diesel Engine Fire Pump finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The Diesel Engine with Mixed Flow Pump is an advanced firefighting and rescue equipment. This combination consists of a robust diesel engine and an efficient mixed flow pump, offering advantages such as independent power supply, high performance, agile mobility, versatility, and cost-effectiveness. During sudden fire emergencies, the Diesel Engine with Mixed Flow Pump operates autonomously, requiring no external power source, and rapidly provides a substantial water supply to minimize fire damage. Its exceptional mobility allows firefighters to swiftly transition and address ever-changing disaster scenarios. It is suitable for various environments, especially in areas with unstable power supply, where it maintains its peak efficiency. Moreover, this equipment is cost-effective, easy to maintain, and offers long-lasting firefighting assurance.

A diesel engine main pump. a jockey pump(used in the place where the pump runs entirely through the diesel engine)

The XBC-IS Diesel Fire Pump Set is a versatile solution suitable for a wide range of applications. From hotels, hospitals, and sports arenas to chemical plants, refineries, metallurgical facilities, energy plants, and pharmaceutical companies, this pump set ensures reliable fire protection. It is also ideal for shopping malls, commercial complexes, office buildings, and high-end residential towers. Whatever the setting, the XBC-IS Diesel Fire Pump Set delivers dependable performance to safeguard lives and properties from fire risks.
