Automatic Control Electric Fire Pump System – Pressure Monitoring and Centralized Pump Operation Management
The automatic control electric fire pump system integrates fire pumps, jockey pumps, pressure tanks, control cabinets, and pressure monitoring devices; it supports automatic pressure control and centralized operational management, making it suitable for fire water supply systems in industrial, warehousing, and building applications.

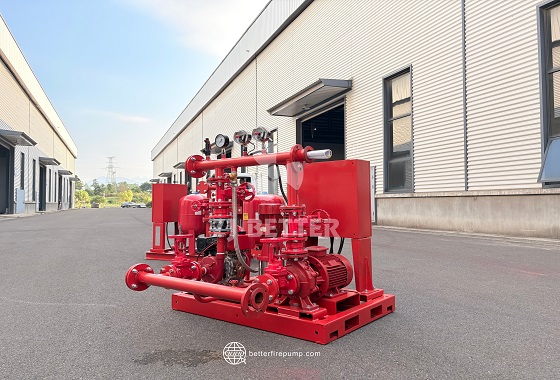

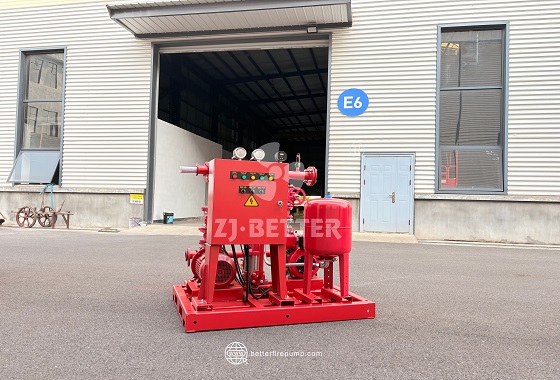

The automatic control electric fire pump system is an integrated fire water supply package comprising an electric fire pump, a jockey pump (pressure-maintaining pump), a pressure tank, a control cabinet, pressure sensing devices, and associated piping accessories. It is primarily utilized in industrial facilities, logistics warehouses, commercial buildings, and other fixed fire water supply systems. Powered by an electric motor, the system allows for the optimal selection of pumps based on project-specific flow rate, head, and pressure requirements, ensuring the pump’s output aligns with actual pipeline network demands. The equipment features a centralized base structure that consolidates the main pump units and control components; this compact design facilitates transportation, on-site installation, commissioning, and subsequent inspections, while minimizing the piping connections required for distributed installations. The control cabinet integrates sensing components—such as pressure sensors and gauges—to monitor network pressure and pump operating status; it manages the start/stop sequences of the main and jockey pumps according to preset logic, enabling the system to promptly compensate for pressure fluctuations. The jockey pump handles low-flow demands and daily pressure variations, providing pressure replenishment when system pressure drops below the set range; this maintains standby pressure and prevents the main fire pump from starting frequently due to minor pressure changes. The pressure tank acts as a buffer, working in tandem with the jockey pump and control system to enhance overall pressure stability. The main fire pump delivers high flow and pressure during fire-fighting operations; specific configurations—such as single-stage, end-suction, horizontal split-case (double-suction), or multi-stage pumps—are selected to meet the hydraulic parameters of the specific project. The control system supports both automatic and manual operation modes and includes protective features (e.g., overload and overcurrent protection) to simplify operational management. These systems cover a wide range of flow and pressure ratings; for instance, some standard packages offer flow rates of 30–1250 GPM and heads of 3–20 bar, though final specifications are determined by specific fire protection design requirements. The advantage of this system lies in its integration of fire water supply, pressure maintenance, pressure monitoring, and operational control into a single unit; this not only optimizes spatial layout but also facilitates unified management and maintenance by engineering personnel. For facilities requiring a stable fire water supply—such as factories, warehouses, commercial complexes, and docks—this automatically controlled electric fire pump system delivers a steady, continuous water supply tailored to specific engineering requirements through the optimized configuration of pump types, motor power, pressure tank capacity, and control parameters, making it a highly practical, all-in-one solution for fixed fire water supply installations.
