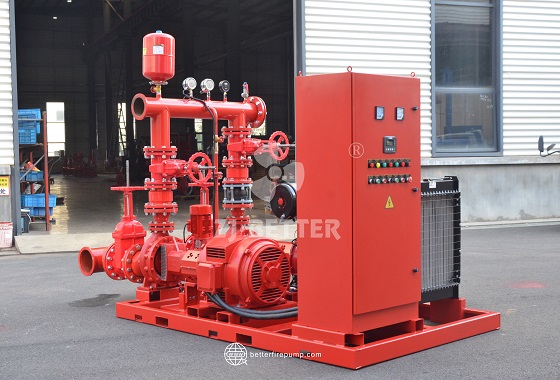

High Performance Diesel Engine Fire Pump for Complex Fire Protection Power Requirements
The high-performance diesel fire pump features an independent diesel power source and supports various configurations of pump types, flow rates, and discharge heads. It integrates engine cooling systems, control equipment, and piping components, making it suitable for industrial plants, petrochemical facilities, warehouses, and large-scale fire water supply projects.
These high-performance diesel fire pumps utilize a diesel engine as an independent power source, integrating the engine, pump unit, cooling system, control equipment, and auxiliary components into a cohesive system. They provide reliable fire-fighting water supply solutions for industrial plants, petrochemical facilities, energy bases, warehousing and logistics centers, ports, and large-scale buildings. Unlike systems reliant solely on electric power, these diesel-driven pumps feature an independent power configuration, making them highly suitable for fire protection projects where the power supply is unstable, limited, or requires a backup power source. The equipment features a matched design between the engine and the pump; the diesel engine delivers mechanical power to rotate the impeller, conveying water from the source to the fire-fighting piping network and delivering the required flow rate and pressure. Depending on specific project requirements, various pump configurations—such as single-stage centrifugal, end-suction, horizontal split-case, vertical multistage, or vertical turbine pumps—can be selected to accommodate different installation spaces, water source conditions, and piping layouts. The unit shown in the image utilizes an integrated baseplate design, with the engine, radiator, pump body, control cabinet, and connecting piping centrally mounted; this enhances structural integrity and facilitates transportation, installation, and on-site piping connections. The diesel engine is equipped with a cooling fan and radiator assembly to regulate operating temperatures and ensure optimal performance of the power system, while the integrated fuel system and control unit support startup and operational management. The pump assembly can also be configured with jockey pumps, pressure tanks, pressure gauges, pressure sensors, check valves, gate valves, and flexible connectors based on project needs; the centralized piping and control design simplifies installation and maintenance. The product series offers flow rates of 30–9000 GPM, discharge pressures of 3–20 bar, and rotational speeds of 740–2900 r/min, with pump inlet/outlet diameters ranging from 25 to 800 mm. Materials for the pump body and impeller—such as cast iron, stainless steel, or bronze—can be selected based on operating conditions, with specific performance characteristics determined by the pump model, engine power, and project-specific requirements. For projects with varying fire-fighting load, water supply distance, and pressure requirements, power output and hydraulic performance can be harmonized through the optimal matching of engine power, pump type, flow rate, and head. High-performance diesel fire-fighting pumps are suitable for large-scale industrial fire protection systems, fixed fire pump stations, and scenarios requiring an independent power supply. These pumps can be custom-configured based on on-site water sources, piping network parameters, and installation conditions, ensuring continuous, stable power and water flow for fire protection systems.
