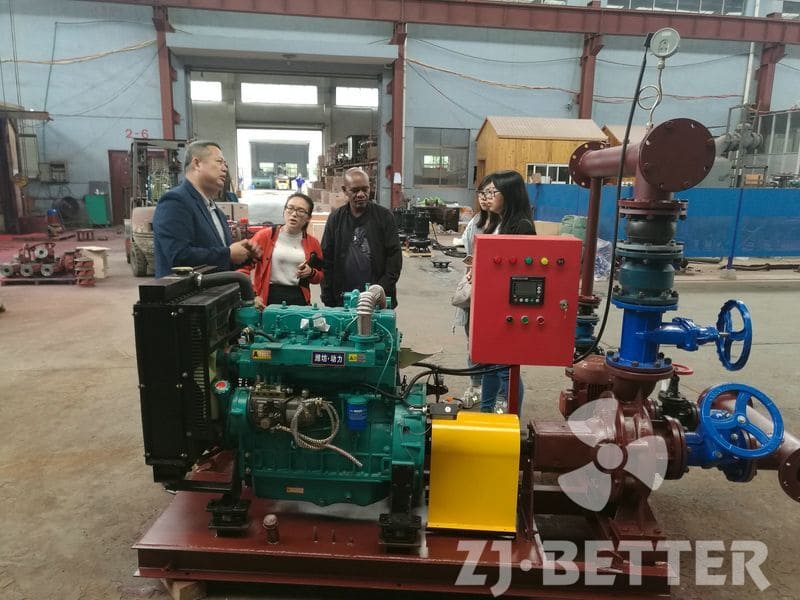

customer visiting to check fire pump set 500gpm, 7bar

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The fire pump is naturally used in the fire water system, and the technology and raw materials used are all required on site. There are many types of fire pumps and different performances. There may be overlapping performance ranges or large differences in performance. We need to consider the specific functions of the site, such as electric motor fire pumps or diesel engine fire pumps, vertical long-axis fire pumps or horizontal split double pumps. Suction fire pump, horizontal single-stage fire pump, etc., we should choose according to actual needs.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

The diesel engine fire pump set has the characteristics of good starting performance, strong load capacity, compact and effective structure, convenient maintenance, simple and reliable use, etc. The generator set has maintenance functions such as speed limit, low oil level, repeated failed starts, high temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm system or the centralized control cabinet of fire-fighting facilities to establish a real-time monitoring function.

The diesel engine fire pump is suitable for unmanned emergency water supply system. The product has the characteristics of good technology, high degree of automation, high performance and protection function, reasonable structure, easy installation, and high cost -effectiveness. Supplement the pressure of the network.

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. The diesel engine pump set is driven by diesel and does not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is most suitable to choose a diesel engine to drive the water pump.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Stationary Pumps for Fire Protection: The diagram illustrates for a diesel-driven horizontal End suction fire pump assembly, electric fire pump as duty, a diesel drive pump as the backup.

EDJ fire fighting package set is composed of diesel fire pump, electric pump, jockey pump.
Electric pump can choose single-stage pump, horizontal split case pump, end suction pump, multistage centrifugal pump, vertical turbine pump which are made of cast iron or stainless steel. Regarding to the impeller, we also could choose the bronze impeller.
Diesel fire pump, the flow is same as the electric pump. The diesel engine is combined by high elastic coupling or universal joint connection. The diesel fire set also includes fuel tank, water tank, fan, control panel and other components.
Jockey pump which is horizontal or vertical. Normally, it has the characteristics of small flow and higher head (more10-15m head than the electric pump and diesel pump).

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

The minimum rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum rated capacity is 25 GPM.EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories,measurement and control instrunnents, control cabinets, outdoor rain cover, etc.

Facilities can ensure the readiness and operational readiness of diesel fire pumps by implementing a comprehensive maintenance program, conducting regular testing and inspections, and providing ongoing training for personnel responsible for operating and maintaining the pumps. This may include performing weekly or monthly visual inspections, conducting quarterly or annual performance tests, and scheduling preventive maintenance tasks based on the manufacturer’s recommendations and industry best practices. Additionally, facilities should maintain accurate records of all maintenance activities and testing results to demonstrate compliance with regulatory requirements and ensure accountability.

DJ fire pump equipment is composed of diesel pump + jockey pump. It is widely used in various fire protection occasions. It is not affected by the mains and can run even when power is cut off. We have a professional sales team and R&D team with strong technical skills and self-produced control systems.

EDJ-ISW fire pump is composed of electric pump + diesel engine pump + jockey pump. It is suitable for fire water, but also for industrial city water supply and drainage, high-rise building pressurized water supply, long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization Air-conditioning refrigeration system water supply and equipment matching and other occasions.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

The fire pump’s pump casing should be regularly inspected for signs of corrosion, warping, and damage. The casing should also be visually inspected for leakage, and all fittings should be tested regularly to ensure they are properly sealed. All gaskets and seals should be checked for wear and replaced when needed. The impeller should be routinely checked to make sure it is free of debris and that all blades are in good condition. Any abnormal sound or vibration should be investigated immediately.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps, the electric pump and the pipeline pressure pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

There are four types fire pump, including end suction pump, split case pump, multiage pump and vertical turbine pump. These fire pumps may bepowered by an electric motor or diesel engine and on rare occasion powered by a steam turbine.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

Flow: 30-9000GPM
Head:3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
Material:SS304, Bronze

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

With the advent of the information age, people have higher requirements for the quality of life, and fire safety is particularly important for high-rise buildings. The state attaches great importance to fire safety work. All workplaces require us to be equipped with fire safety facilities, and fire pumps are necessary water intake equipment for fire infrastructure. The commonly used fire pumps in our country are electric fire pumps and diesel fire pumps. The difference between the two is that the electric fire pumps need a power system. If the diesel engine fire pumps can be started at any time to fill the position of the original electric fire pumps.

The 1000GPM 12Bar Split Case Fire Pump System finds wide application in various locations and buildings, including factories, commercial buildings, residential complexes, hospitals, airports, ports, and more. Whether serving as the primary firefighting water source or a backup water supply, it offers reliable support to your firefighting equipment and systems.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the jockey pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

500gpm ED fire pump dispatch

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Diesel engine fire pumps are usually used as a backup facility, and will only start automatically when the electric water pump fails or the power is cut off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of pump starting should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

1. The fire pump packing seal should be able to form a reliable seal without leaking, and it should have good wear resistance.

2. The packing seal should have good elasticity and flexibility in order to accommodate the thermal expansion and contraction of the pump.

3. The packing seal should be able to maintain its shape and flexibility over time, and it should also be resistant to corrosion from the pump’s fluids.

4. The packing seal should be easy to install and remove, and it should be able to withstand high pressures and temperatures.

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.
