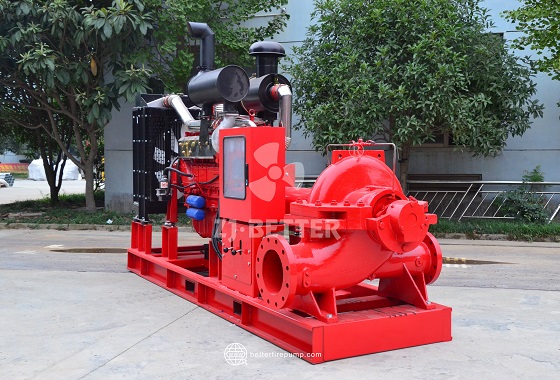

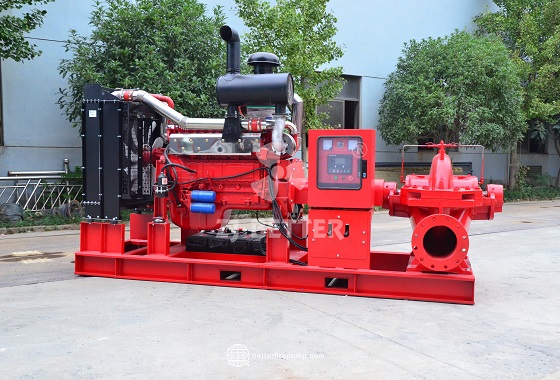

Large Capacity Horizontal Split Case Fire Pump System for Factory and Warehouse Protection
Large capacity horizontal split case fire pump system designed for factories and warehouses, delivering high flow, stable pressure and reliable continuous operation. Ideal for industrial fire protection, sprinkler systems and hydrant networks, featuring efficient performance, durable structure and easy maintenance for long-term safety assurance.
High-flow horizontal split-case pump fire protection systems are the preferred choice for factory and warehouse fire protection. Designed specifically for high-flow, wide-area, continuous, and stable water supply needs, these core fire protection equipment solutions are widely used in industrial plants, large-scale warehousing and logistics centers, manufacturing bases, ports, power facilities, commercial complexes, and municipal infrastructure—places with extremely high requirements for reliable fire water supply. The system uses a horizontal split-case centrifugal pump as its core, combined with a high-performance power unit and intelligent control system. It can quickly start and continuously output a stable, high-flow, high-pressure water source in the event of a fire, meeting the needs of sprinkler systems, indoor and outdoor fire hydrant systems, and fire suppression systems. To meet the water demand of various fire extinguishing equipment such as water cannons, the system employs a horizontal split-case pump body in its structural design. The pump casing is symmetrically distributed along the axial direction, with the impeller positioned in the center of the pump body. The inlet and outlet are located on the same axis, resulting in a compact and reasonable structure. This not only facilitates on-site installation and layout but also allows for opening the top cover and internal maintenance without disassembling the inlet and outlet pipelines, significantly improving maintenance efficiency and reducing subsequent operation and maintenance costs. It is particularly suitable for continuous production enterprises with strict downtime requirements. In terms of hydraulic model design, the system adopts an optimized flow channel structure and a high-precision dynamically balanced impeller, significantly reducing hydraulic losses and vibration noise, ensuring smooth operation under high flow conditions. The system maintains high-efficiency operation even under adverse conditions, effectively improving energy utilization and reducing long-term energy consumption. The pump body is made of high-strength cast iron or ductile iron, and key flow components can be made of stainless steel or corrosion-resistant materials according to different water quality requirements. It is suitable for clean water, industrial circulating water, and certain corrosive media environments. The bearing system adopts a heavy-duty rolling bearing structure, combined with a high-quality lubrication system design, which can withstand long-term high-load continuous operation, ensuring stable and reliable operation even in emergency conditions. The sealing system can be selected from packing seals or mechanical seals according to project requirements, ensuring leak-free operation and stable sealing performance. From a power configuration perspective, the system can be equipped with a high-power diesel engine or electric motor drive unit. In environments without mains power or with unstable power, the diesel drive solution is preferred, providing independent operation capability. The diesel power unit adopts a high-torque output design, featuring rapid start-up, quick response, and stable output. Combined with a high-capacity fuel tank design, it can meet the needs of long-term continuous water supply, making it suitable for remote areas or scenarios with limited power supply. The control system is equipped with an intelligent control cabinet, which can realize functions such as automatic start/stop, pressure monitoring, speed regulation, fault alarm, and real-time display of operating status, ensuring that the system automatically starts operation the moment a fire occurs. It operates and maintains the set pressure range, while also featuring a manual emergency control mode to enhance overall safety redundancy. The system can also be configured with a pressure-stabilizing pump and control linkage devices according to project specifications, forming a complete fire-fighting water supply system solution that meets the fire protection standards of different countries and regions. In terms of hydraulic performance, the high-flow horizontal split-case pump provides stable high-flow output, covering a flow range from hundreds to thousands of cubic meters per hour. Its head design is flexible and can be customized according to building height and system pressure requirements, making it particularly suitable for scenarios with large building areas and complex pipe networks, such as large warehousing and logistics centers. This system maintains sufficient pressure at the furthest nozzles or hydrants to ensure efficient fire suppression. Regarding seismic resistance and structural stability, the entire system is mounted on a heavy-duty steel base, featuring anti-corrosion treatment and reinforced structural design. This effectively reduces operational vibration and enhances overall stability, adapting to various complex installation environments while facilitating transportation and on-site hoisting. Before leaving the factory, the system undergoes rigorous performance and pressure testing to ensure each unit meets design flow and head standards, guaranteeing successful project acceptance. In practical applications, this system provides reliable fire protection for production lines in factory workshops and can also be used in large warehouse areas. This system covers the needs of automated sprinkler systems in high-bay warehouses, supports the coordinated operation of outdoor fire hydrants and fire monitor systems in logistics parks, and can also be used as a main fire pump unit in petrochemical and energy projects. Its high-flow-rate output allows it to quickly establish a stable water curtain in the early stages of a fire, controlling its spread and significantly improving the success rate of fire suppression. The system also boasts excellent scalability, allowing for the addition of backup pumps or system upgrades as needed to meet future capacity expansion and safety upgrade requirements. From an economic perspective, the high-flow-rate horizontal split-case pump fire suppression system excels in design life, operational stability, and ease of maintenance, reducing costs. To reduce failure rates and maintenance costs, improve return on investment, and reduce energy consumption in an energy-efficient operation mode, providing a solid guarantee for the long-term stable operation of enterprises, in the current market environment with increasingly stringent fire safety requirements, choosing a high-flow horizontal split-case pump fire protection system with reliable structure, stable performance, and sufficient water supply capacity can not only meet the requirements of regulations and standards, but also build a complete, efficient, and sustainable fire water supply guarantee system for factories and warehouses, comprehensively improving the enterprise’s safety management level and risk prevention and control capabilities. It is a key core equipment choice in the construction of fire protection systems for modern industrial and large-scale warehouse facilities.
