Mechanical seals for fire pumps

500gpm8bar EDJ waiting for dispatch

The EDJ model is basically a combination of Electric, Deisel and Jockey pumps. They mainly consist of an electric motor driven end suction pump and a backup pump of a diesel engine driven end suction pump. It is also combined with a jockey pump for maintenance to form a complete skid.
The complete EDJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

The fire pump is mainly used to pressurize and send water to the fire system pipeline. It can also be applied to industrial and urban water supply and drainage, pressurized water delivery for high-rise buildings, long-distance water delivery, heating, bathroom, boiler cooling and heating cycle pressurized air-conditioning refrigeration system water delivery and equipment matching, etc.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

Pressure relief valves prevent over-pressurization in the fire pump system. They ensure safe operation by releasing excess pressure, protecting the pump and connected piping from damage.

Our highly acclaimed Box-type Non-Negative Pressure Water Supply Equipment is the savior for your hotels, hospitals, schools, and more! Not only does it provide stable water flow and pressure, but it also guarantees fresh water quality! Suitable for life water supply systems in high-rise buildings, residential communities, and large-scale architectural complexes, bid farewell to water shortage worries! The Box-type Non-Negative Pressure Water Supply Equipment features an advanced automatic control system that instantly starts the water pump when demand increases, providing you with a continuous and stable water flow. And when demand decreases, the pump intelligently stops, avoiding energy waste! The compact box-type structure makes installation and maintenance a breeze! Whether it’s solving water supply issues in low-pressure areas or addressing the needs of places like hotels, hospitals, and schools where water cannot be shut off but face insufficient tap water pressure, our Box-type Non-Negative Pressure Water Supply Equipment offers the perfect solution!

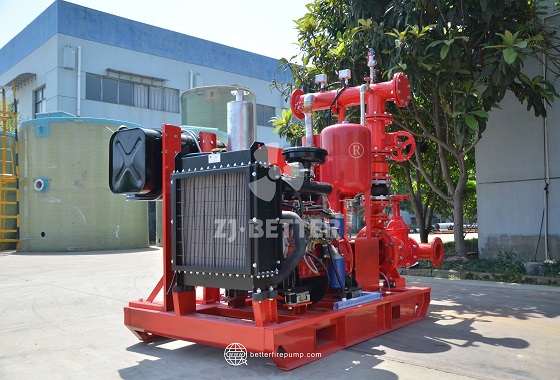

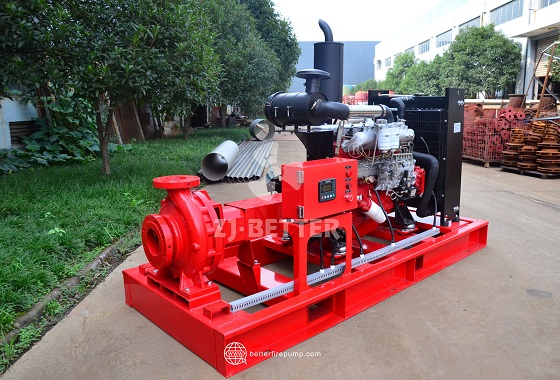

The diesel engine fire pump set has the characteristics of high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly fails, the diesel engine emergency water supply pump set will automatically start to supplement the pressure of the pipe network.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

The lower the pumping head of the fire pump, the smaller the motor load. Under the misleading of this kind of misunderstanding, when purchasing a water pump, the head of the water pump is often selected to be very high. In fact, for centrifugal water pumps, when the pump model is determined, the power consumption is proportional to the actual flow of the pump. The flow rate of the water pump will decrease with the increase of the head, so the higher the head, the smaller the flow rate and the smaller the power consumption. Conversely, the lower the lift, the greater the flow and the greater the power consumption. Therefore, in order to prevent the motor from overloading, it is generally required that the actual pumping head of the pump should not be lower than 60% of the calibrated head.

EDJ diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

Multifunctional diesel fire pump set designed for high-rise buildings, large warehouses, and petrochemical sites, featuring high head, large flow, smart control, and reliable water supply.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools,commercial buildings, supermarkets,subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Fire pump refers to a clean water pump used for fire water supply, and a single water pump with a non-corrosive treatment medium temperature below 80°C. The pump unit is a joint operation of multiple fire pumps to ensure the quantity and stability of water supply. The electric motor fire pump set adopts multiple fire water pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption.

High quality and low price fire pump, factory direct sales, professional production and sales team, actively and properly solve customer feedback after-sales problems.

In urban areas, where water supply systems may be complex and highly interconnected, fire pumps play a crucial role in ensuring resilience and reliability. These pumps help maintain adequate water pressure and flow across different zones within the city, especially during peak demand periods or in the event of a fire. Fire pumps are often integrated into municipal water systems, providing additional pressure support for firefighting efforts and ensuring that water can be delivered quickly to where it is needed most. In some cases, fire pumps are also used to support the overall stability of the water supply network by compensating for pressure drops caused by infrastructure issues or increased usage.

For diesel-driven fire pumps, environmental considerations include proper fuel storage and spill containment measures. It’s important to adhere to environmental regulations to prevent pollution and ensure the safe operation of the pump.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

A fire pump is installed to ensure an adequate and pressurized water supply for firefighting systems, such as sprinklers, standpipes, and hoses, in case of a fire emergency.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Use of EDJ fire pump:

1. All kinds of fire hydrant, sprinkler fire pump;

2. Suitable for all kinds of fire booster and pressure regulator pump occasions;

3. Various villa, community and other fire control systems;

4. Industrial and civil building fire control system;

5. Suitable for all kinds of oil depots, oil loading and unloading docks, logistics parks and other places with high fire level requirements.

Better Technology Group Co., Ltd. is a professional water pump manufacturer. The company has a strong design, production, sales and service teams. The production history is long, the quality system is perfect, the testing methods are complete, the production process is advanced, and the product quality is guaranteed to avoid customers’ worries. Since the establishment of the company, the products have been constantly optimized and innovated, with the quality of replacing imported products and the price of domestic products.

All places need to be equipped with fire-fighting facilities, and fire pumps are the water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps require power systems. supply. In case of power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Flow: 30-500GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action driving circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

As the core component of a fire protection system, the performance of fire pumps directly affects fire suppression efficiency. To ensure optimal performance, we maintain strict control over every stage, from design and manufacturing to installation and maintenance.

In the design phase, we utilize advanced fluid dynamics technology to optimize the pump structure, minimizing energy loss and maximizing water flow efficiency. The carefully designed impeller and flow channels enable the pump to maintain stable operation under high pressure while reducing noise and vibration, thereby extending its service life.

During the manufacturing process, we select high-strength, corrosion-resistant materials such as stainless steel and ductile iron to ensure durability in harsh environments. Precision machining and rigorous quality inspections guarantee that every fire pump meets industry standards before leaving the factory.

Proper installation is equally critical. Our professional team develops the best installation plan based on the site environment, ensuring tight pipe connections, smooth water flow, and stable electrical control system operation. The integration of intelligent control systems allows for automatic start-stop functions and remote monitoring, significantly improving response speed and operational convenience.

Finally, regular maintenance and inspection are essential for long-term efficiency. Our comprehensive after-sales services include routine inspections, spare parts replacement, and remote troubleshooting, ensuring the pump remains in peak condition.

Through scientific design, high-quality manufacturing, expert installation, and thorough maintenance, our fire pumps provide reliable fire protection solutions, helping to build highly efficient and secure fire suppression systems.

Advancements in firefighting pump technology focus on improving efficiency, reliability, and safety. Some emerging trends include the development of more compact and lightweight pumps, integration of smart monitoring and control systems, and the use of alternative fuels for powering pumps, such as hydrogen or electric batteries.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
