Packaged Pneumatic Fire Water Supply Equipment – Pressure Storage and Automatic Replenishment for Stable Fire Networks

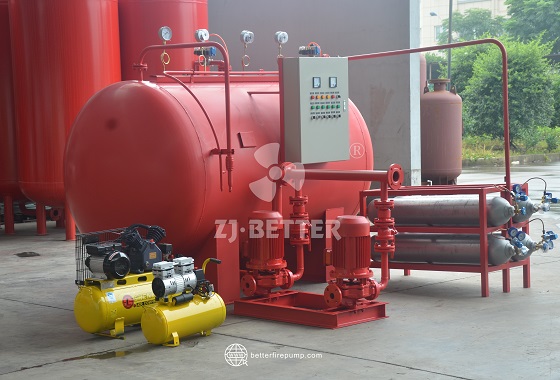

The integrated fire-fighting pneumatic water supply system combines a pressure tank, a pressure-stabilizing pump, a control cabinet, and a pressure detection system; it maintains stable pressure in the fire-fighting piping network through stored pressure energy and automatic pressure replenishment, making it suitable for fire-fighting water supply systems in buildings, industrial facilities, and warehouses.
The integrated pneumatic fire water supply system is a comprehensive unit designed to maintain pressure in fire-fighting piping networks, provide automatic pressure replenishment, and assist in fire water supply. It primarily consists of a pressure storage tank, a pressure-maintaining pump (jockey pump), a control cabinet, pressure sensing devices, valves, and connecting piping. Through the coordinated operation of pressure energy storage, pump pressurization, and automatic control, the system ensures the fire-fighting network maintains stable operating pressure during long periods of standby. The pressure tank stores fire-fighting water at a specific pressure and acts as a buffer and compensator during minor water usage, slight leaks, or pressure fluctuations, thereby mitigating the impact of pressure instability on the overall system. The pressure-maintaining pump handles routine pressure replenishment; when the sensing device detects that network pressure has dropped below the setpoint, the control system activates the pump based on preset logic to restore pressure, stopping it once the pressure returns to the target range—creating a cycle of automatic detection, startup, replenishment, and shutdown. Compared to relying solely on the main fire pump to handle minor, routine pressure changes, the combination of a pressure-maintaining pump and a pressure tank reduces unnecessary, frequent cycling of the main pump. This lowers mechanical and electrical stress associated with frequent starts and stops while enhancing the system’s ability to maintain stable pressure. The pressure monitoring system continuously tracks network pressure changes and relays signals to the control cabinet, which automatically manages the pressure-maintaining pump based on setpoints. Depending on the specific configuration, the system can also provide operational status displays, fault alarms, and protective functions, making the system’s status transparent and facilitating inspection and maintenance by personnel. Featuring an integrated design, the system consolidates the pressure tank, pressure-maintaining pump, control system, pressure sensors, and piping accessories into a single unit. This approach minimizes on-site interconnection and coordination tasks compared to installing separate, independent components, resulting in a more compact layout and simplifying equipment placement, piping connections, and future maintenance within the fire pump room. The specific specifications for the pressure tank and pressure-maintaining pump must be carefully matched to the fire-fighting network’s volume, design pressure, required flow rate, head, and operating conditions. Pressure settings should also be adjusted in accordance with fire safety design requirements to prevent issues such as frequent equipment cycling or insufficient pressure caused by improper parameter selection. Depending on specific project requirements, the complete pneumatic fire water supply system can be integrated with main fire pumps, electric fire pumps, diesel fire pumps, and other control equipment. During normal standby, it maintains pressure within the piping network; when fire water demand surges and network pressure drops rapidly, the main fire pump takes over to deliver the higher flow and pressure required for firefighting, thereby establishing a comprehensive operational system that spans from routine pressure stabilization to active fire suppression. The system can be configured with various specifications of jockey pumps, pressure tanks, and control systems to suit applications such as high-rise buildings, commercial complexes, industrial plants, logistics warehouses, public buildings, and other fixed fire water supply installations. For projects requiring sustained fire network pressure, the system minimizes pressure fluctuations through pressure energy storage and automatic pressure replenishment, ensuring stable standby pressure for fire hydrants and automatic sprinkler systems while facilitating the reliable startup of main fire pumps. Equipment selection involves a comprehensive assessment of design flow rates, head, operating pressure, network volume, pressure tank capacity, jockey pump performance, installation space, and control requirements to ensure optimal component compatibility. Through features such as pressure energy storage, automatic replenishment, real-time pressure monitoring, and centralized control, the system enhances the continuity and stability of pressure management, providing a reliable solution for pressure maintenance and automatic replenishment across diverse fire protection applications in the building, industrial, and warehousing sectors.
