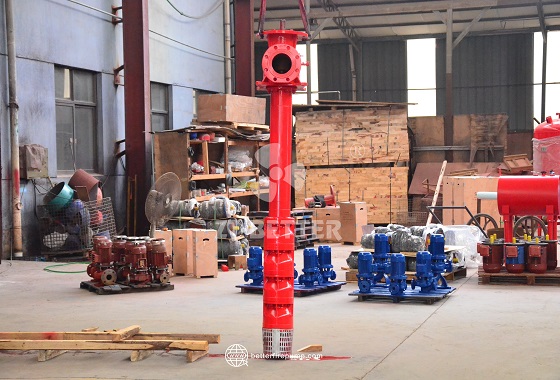

Vertical Deep Well Turbine Fire Pump for Complex Fire Water Source Conditions
Vertical deep well turbine fire pumps are suitable for deep wells, rivers, lakes and complex fire water source conditions. They have advantages such as deep water intake, large flow rate, high head, stable operation and flexible drive, and can meet the water supply needs of large-scale industrial and fire protection projects.
The vertical deep well turbine fire pump is a high-performance fire water supply device specifically designed for low water levels, deep water levels, and complex fire water source conditions. It adopts a vertical long shaft drive structure, allowing the pump impeller to be installed underground or below the water surface. The drive unit is connected to the pump via the long shaft, enabling stable water intake from deep wells, rivers, lakes, reservoirs, etc., and delivering fire water to the surface fire protection network. This product is suitable for industrial plants, large warehouses, petrochemical facilities, power projects, mines, municipal fire protection, and other large projects requiring independent fire water sources. It is particularly suitable for applications where traditional surface pumps cannot meet the suction height requirements. According to the product’s technical parameters, the vertical turbine fire pump has a flow rate range of 30–5000 GPM, a total head range of approximately 20–234 meters, an operating pressure range of 3–20.5 Bar, and a speed range of 980–3550 r/min. It can be specifically configured according to the flow rate, pressure, and water source depth of different fire protection systems. One of the core advantages of this product is its excellent deep-water intake capability. The impeller can be installed below the actual water level, avoiding the suction head limitations of ordinary surface centrifugal pumps. It can maintain a stable water supply even when the water level is low or the water source is deep below ground, thus better adapting to deep wells, reservoirs, and fire-fighting water sources with significant seasonal water level fluctuations. The pump set typically consists of an underground pump body assembly, a vertical column assembly, and a surface drive unit. The column assembly can be connected by flanges or threads and can be configured according to installation depth and project requirements. The drive method offers high flexibility, employing a vertical hollow shaft motor, or using belt drive or a gearbox in conjunction with a horizontal motor or diesel power, providing more flexible power options for different projects. In terms of operational performance, the multi-stage impeller structure of the vertical deep-well turbine fire pump further enhances the head capacity, enabling the equipment to meet the needs of long-distance, high-head fire-fighting water supply. The drive shaft is supported by rubber bearings, which can be lubricated and cooled by the transported medium during operation, helping to reduce friction and improve the stability of continuous operation. Axial force is borne by the relevant bearings of the drive unit, allowing the pump set to adapt to different load conditions. Meanwhile, the equipment can be equipped with an anti-reverse rotation device to reduce the impact of reverse rotation caused by water backflow after shutdown, further improving the operational reliability of the transmission system. In terms of material selection, the impeller can be made of alloy cast iron or silicon brass, the pump casing can be made of alloy cast iron, the cone sleeve can be made of stainless steel, and the pump shaft can be configured with carbon steel or stainless steel according to project requirements. Combined with seamless steel pipe column and rubber bearing structure, the product can be rationally selected according to different water qualities and operating environments. For complex fire water sources, the rational selection of materials and pump set structure is particularly important, which can improve the equipment’s adaptability to long-term operating environments. Compared with ordinary fire pumps, vertical deep well turbine fire pumps not only solve the problem of low water level intake, but also have large flow rate, high head, and strong engineering adaptability, and can be matched with different flow rates, pressures, installation depths, and drive power according to the actual needs of the fire protection system. Its vertical structure can reduce the space occupied by ground installation and facilitate connection with deep wells and underground water sources. For large-scale industrial fire protection projects, it can establish a more stable and reliable independent fire water supply capacity. With proper selection, the equipment can continuously provide the required water volume and pressure for fire hydrant systems, automatic sprinkler systems, and other fire-fighting water facilities. Leveraging its deep-water intake capability, high-lift performance, large-flow delivery capacity, flexible drive methods, and excellent adaptability to complex water source conditions, the vertical deep-well turbine fire pump has become a crucial fire-fighting water supply device for large industrial facilities and complex fire-fighting water source projects, providing stable, efficient, and reliable fire-fighting water supply solutions for critical locations.
