Diesel End Suction Fire Pumps Combine Hydraulic Water Transfer with Independent Power Operation
The diesel end-suction fire pump integrates a diesel engine, end-suction centrifugal pump, control device and auxiliary system. It features independent power, stable water delivery, centralized structure and convenient installation and maintenance. It can be used in various fire water supply projects according to different flow and head requirements.

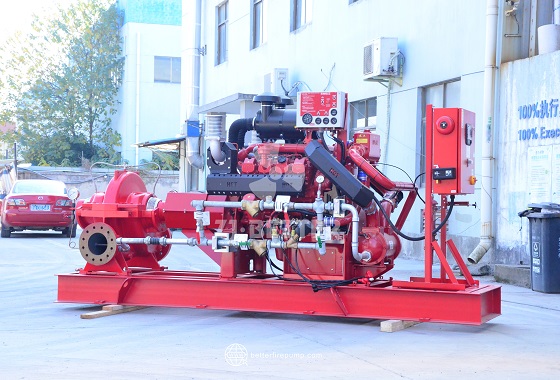

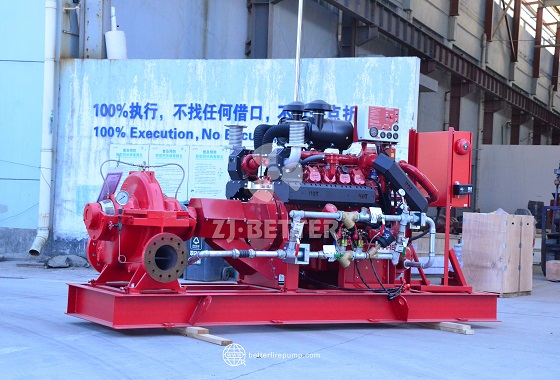

A diesel-powered end-suction fire pump is a complete fire-fighting water supply system that combines a diesel engine with an end-suction centrifugal fire pump. It is primarily used in fire-fighting water supply systems requiring independent power support. This product typically consists of a diesel engine, end-suction fire pump, coupling, control device, cooling system, instruments, auxiliary piping, and an integrated base. Its centralized design integrates power output and hydraulic delivery functions onto a single platform, facilitating installation, operation management, and routine maintenance. The diesel engine, as an independent power source, can drive the fire pump under suitable design conditions, reducing reliance on a fixed external power supply. This makes it well-suited for fire-fighting water supply projects requiring backup power or independent power support. The end-suction centrifugal pump employs a structure where water is drawn in from one side of the pump body, pressurized by the impeller, and then delivered through the outlet. Water gains energy through a rationally designed pump body flow channel and impeller, resulting in the flow rate and pressure output required by the fire-fighting system. This type of pump set can be configured with different flow rates and heads according to engineering design parameters, ensuring that the hydraulic performance matches the fire-fighting network, water source conditions, and actual usage requirements. Diesel engines and fire pumps are typically connected via couplings or corresponding power transmission structures, ensuring a stable transfer of mechanical energy from the engine to the pump shaft, driving the impeller to rotate at high speed to complete the water delivery process. Proper power matching helps maintain coordination between the engine’s output capacity and the fire pump’s operational requirements, providing continuous power support within the specified operating range. End-suction pumps have a relatively centralized structure with clearly arranged inlet and outlet interfaces, facilitating connection to fire water tanks, fire pipe networks, and related piping systems. This also facilitates inspection and maintenance by personnel. For different installation environments, appropriate configurations can be made based on the on-site piping direction, foundation space, and system parameters to improve the matching degree between the equipment and engineering conditions. Complete diesel fire pump systems typically mount the engine, pump body, control equipment, and auxiliary components on a common base, forming a complete integrated structure. The centralized base facilitates equipment transportation, hoisting, and on-site positioning, and also helps maintain the relative installation position between the power equipment and the pump body. A well-planned equipment layout provides necessary inspection space for the engine, fire pump, cooling system, and control devices, facilitating routine maintenance work such as checking the fuel system, lubrication system, cooling system, couplings, and piping connections. The control system monitors relevant operating signals and executes start-up and operation controls according to the fire protection system design requirements. By configuring necessary instruments and monitoring components, staff can understand the basic operating status of the equipment and perform timely inspections and maintenance. For continuous operation, the diesel engine’s cooling system effectively controls the heat generated during operation, ensuring the engine maintains a suitable operating condition under specified usage conditions and improving the pump set’s adaptability to continuous water supply. The combination of diesel power and an end-suction centrifugal pump gives the equipment both independent drive and hydraulic delivery capabilities. The diesel engine provides power, the end-suction centrifugal pump delivers water to the fire protection network, the control system manages related operations, and auxiliary piping and instruments support equipment operation monitoring and system connections. For industrial plants, warehousing facilities, commercial buildings, public buildings, and other projects requiring fixed fire-fighting water supply systems, appropriate diesel end-suction fire pump parameters can be selected based on actual fire protection design requirements. In actual use, the equipment’s flow rate, head, speed, and power configuration should be coordinated with the system design requirements, while also comprehensively considering water source conditions, pipeline resistance, installation environment, and operational requirements. Through proper selection and standardized installation, diesel end-suction fire pumps can provide corresponding hydraulic support for fire-fighting water supply systems. Regular inspections of fuel, lubrication, cooling, control systems, and major connecting components can maintain the equipment’s normal operating condition. Overall, diesel end-suction fire pumps combine the independent power capability of a diesel engine with the water delivery performance of an end-suction centrifugal pump, offering advantages such as relatively independent power configuration, centralized structure, convenient inlet and outlet connections, clear equipment installation and management, and adaptability to different engineering parameters. They can be configured according to the flow rate and head requirements of different fire-fighting projects, providing a complete equipment selection for fire-fighting water supply systems requiring independent power support.
