Pressure Tank and Vertical Multistage Pump Combinations Optimize Fire Pressure Stabilization Performance
The fire-fighting pressure stabilizing equipment, which combines a pressure tank with a vertical multistage pump, integrates pressure storage, automatic pressure replenishment, pressure monitoring, and pump control. It features a compact structure, automatic operation, stable pressure compensation, and convenient installation, and is suitable for various fixed fire-fighting water supply systems.

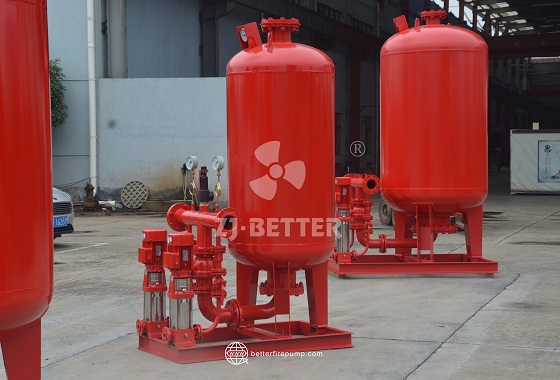

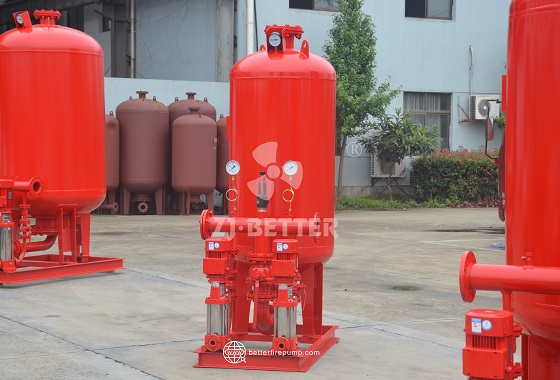

Fire-fighting pressure stabilizing equipment, composed of a pressure tank and a vertical multistage pump, is a crucial set of equipment in fire-fighting water supply systems used to maintain network pressure and compensate for minor pressure changes. It typically consists of a pressure tank, vertical multistage pump, motor, control system, piping, valves, pressure gauges, and a common base. This equipment works in conjunction with the pressure tank’s pressure storage capacity and the vertical multistage pump’s pressurization capacity to maintain the fire-fighting network within a specified pressure range during normal standby. It also automatically replenishes water and increases pressure based on system pressure changes, providing stable standby pressure conditions for the main fire-fighting pump system. The pressure tank is a vital component of the entire system, capable of storing a certain volume of pressurized water and buffering pressure changes between the gas and water within the tank. When minor pressure fluctuations occur in the fire-fighting network due to temperature changes, slight leaks, or other factors, the pressure tank can participate in pressure compensation within a certain range, reducing the frequent start-ups of the pumps due to minor pressure changes and improving the operational adaptability of the pressure stabilizing equipment. Vertical multistage pumps are characterized by their compact structure, high head, and relatively small footprint. The pump body employs a multi-stage impeller structure for progressive pressurization, providing corresponding pressure compensation capabilities based on the actual pressure requirements of the fire protection system. When the system pressure drops to the set range, the control system can activate a pressure-stabilizing pump based on the pressure signal. This pump replenishes water to the fire protection network, restoring the system pressure to the specified range before stopping operation, thus forming an automatic pressure maintenance process. The combination of the pressure tank and the vertical multistage pump allows for coordinated pressure storage and boosting functions. The pressure tank buffers small-scale pressure changes, while the pressure-stabilizing pump promptly replenishes system pressure, improving the pressure maintenance capability of the fire protection network in standby mode. Complete sets of equipment typically adopt a centralized structural design, with the pressure tank, pump, motor, control cabinet, and related piping all mounted on a common base, resulting in a more compact structure and facilitating transportation, on-site installation, and subsequent inspection. The vertical arrangement of the pump reduces the horizontal footprint within limited spaces, making it well-suited for fire pump rooms, equipment rooms, and other locations with limited installation space. The equipment’s control system monitors pressure signals and pump operating status, and automatically starts and stops the pumps based on preset pressure parameters. Operators can also monitor the system’s basic operation through instruments and control devices. A well-configured set of pressure gauges, pressure switches, valves, and connecting pipes facilitates a complete pressure-stabilized water supply connection between the equipment and the fire protection network, and enables convenient daily debugging, inspection, and maintenance. The vertical multistage pump uses a direct motor drive, resulting in a relatively simple power transmission structure. It converts mechanical energy into water pressure through multiple impeller stages, making it suitable for fire protection pressure stabilization applications requiring high head and pressure compensation. In practical use, appropriate pressure tank volume and pump parameters can be selected based on the fire protection system’s design pressure, network volume, pressure variation range, and installation conditions to match equipment configuration with system requirements. For different projects, the number of pump sets, flow rate, head, control method, and pipeline connection type can also be configured according to actual requirements to meet the installation and operation needs of different fire protection water supply systems. The main advantages of this type of fire protection pressure stabilization equipment are its centralized pressure storage and boosting functions, convenient automated operation, compact equipment layout, and good adaptability to changes in fire protection network pressure. The pressure tank participates in system pressure buffering, while the vertical multistage pump provides continuous pressure compensation. Together, they help reduce unnecessary frequent pump starts and maintain stable pressure in the fire protection system during normal standby. The centralized base and modular structure make the connections between major components more centralized, facilitating on-site installation and subsequent maintenance. The product’s performance in actual operation is closely related to equipment selection, pressure parameter settings, pipeline conditions, installation quality, and daily maintenance. Therefore, it should be rationally configured according to specific project conditions, and installation, commissioning, and regular inspections should be completed in accordance with relevant technical requirements. Overall, the fire protection pressure stabilizing equipment combining the pressure tank and vertical multistage pump works synergistically through pressure storage, buffering, automatic monitoring, and pump pressurization functions to provide continuous pressure maintenance support for the fire protection pipeline network. It is suitable for industrial plants, storage facilities, commercial buildings, public buildings, and other projects equipped with fixed fire water supply systems, providing a reliable equipment foundation for the normal standby and stable operation of the fire protection system.
