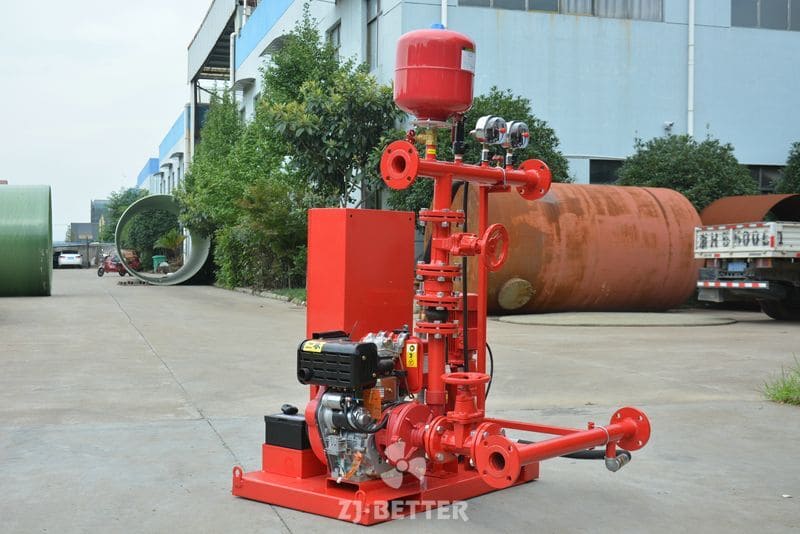

Small DJ Fire Pump Manufacturing Factory

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so a diesel engine fire pump is a good choice.

EDJ Fire pump set consists of a main electric pump(driven by electric motor), standby diesel pump(driven by diesel engine), and a multistage jockey pump. Pumps are assembled with discharge pipe and suction pipe as well as Control Panel.And this fire pump system can be customized for different purposes such as high rise buildings, warehouses,facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

containerized fire pump system 750gpm with electric fire pump, diesel engine fire pump, jockey pump and controllers for each pump, and these all fitted in the 40″ container.

Fire pumps are rated based on their capacity and pressure performance. The two key ratings are:

Gallons Per Minute (GPM): This rating indicates the pump’s flow capacity and how much water it can deliver per minute. It is essential to ensure that the fire pump can meet the specific flow requirements of the fire protection system.

Pressure (PSI): The pressure rating specifies the force with which the pump can deliver water. Sufficient pressure is critical for effectively propelling water through the fire sprinklers and hoses.

Understanding these ratings is vital when selecting a fire pump for a facility, as it ensures that the pump can meet the specific needs of the fire protection system.

The fire pump set consists of electric pump + diesel pump + jockey pump, The pressure switch and control cabinet can automatically turn on/off three pumps-the electric pump and jockey pump operate when there is electricity and the diesel pump activates when the power cuts.

In modern fire protection systems, rapid response to fire incidents is crucial for safeguarding life and property. The Pressure Stabilization and Dual-Function Pump System integrates powerful pressure regulation with dual power sources to ensure that the fire protection system quickly responds and maintains a continuous, stable water supply during emergencies.

This pump system is designed with two power sources—an electric motor and a diesel engine. When the primary power source fails, the diesel engine automatically starts, ensuring uninterrupted operation of the fire protection system even during power outages. Its pressure stabilization system automatically adjusts pressure during operation, ensuring stable water flow for fire suppression and preventing water interruptions due to insufficient or fluctuating pressure, ultimately improving firefighting efficiency.

The intelligent control system further enhances the efficiency of the pump system, allowing users to monitor the system’s status in real-time through a touch panel. The system is easy to operate, and any malfunction is quickly detected and alarms are triggered, activating backup systems to effectively prevent emergency issues caused by system failure.

This pump unit is ideal for applications in high-rise buildings, industrial zones, storage facilities, and other locations with high reliability requirements for fire protection, ensuring that the fire pump can be immediately activated and continue to supply water in any emergency.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

EEJ fire pump set is composed of two electric pumps and one jockey pump. The fire pump adopts ISW pump, which has the characteristics of convenient installation and convenient maintenance, and is widely used in any fire emergency situation.

1. When installing the water inlet pipe, the horizontal section should be horizontal or upward
2. There are many elbows used on the water inlet pipe
3. The water inlet of the water pump is directly connected with the elbow
4. The last section of the water inlet pipe equipped with a bottom valve is not vertical
5. The position of the water inlet of the water inlet pipe is wrong
6. The outlet pipe is above the normal water level of the outlet pool

In smart buildings, the latest trends in fire pump technology focus on integrating advanced sensors, IoT (Internet of Things) capabilities, and data analytics to enhance system performance and reliability. Smart fire pumps can communicate with building management systems (BMS) to provide real-time data on pump status, water flow, pressure, and other key parameters. This data can be used for predictive maintenance, alerting operators to potential issues before they become critical. Additionally, smart pumps can adjust their operation based on real-time conditions, optimizing energy use and ensuring the most efficient response during a fire emergency. These technologies enhance safety and align with the broader trend toward more intelligent, automated, and energy-efficient building systems.

Diesel engine fire pump is a kind of fire-fighting equipment that we often see and often use in our life. The diesel engine fire pump has the characteristics of good starting performance, strong overload capacity, compact internal structure, convenient maintenance, simple operation and high degree of automation. It is a very reliable fire fighting equipment.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

Fire Pump Set Components :
Electric pump:kinds of end suction pump, split case pump, multistage pump. made of cast iron, stainless steel. Impeller can be bronze.
Diesel pump:Flow is the same with electric pump. It connects the pump set with High elastic coupling or universal joint. It also includes water tank, oil tank, fans, control screen etc.
Jockey pump:horizontal or vertical, small flow, head is higher than electric or diesel pump
Control panel:control the pumps automatically with overload, overcurrent protection

Flow:5-400L/s
Head:3-20Bar
Material:HT200, SS304, Bronze
Caliber:65-350mm
Pressure:0.3~1.5MPa
Speed:740-2900r/min

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working state of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.

Scope of application of fire pump set:
1. Industrial plants, automobiles, breweries, pulp and paper, chemicals, pharmaceuticals;
2. Government offices, embassies, military bases, administrative buildings;
3. Commercial buildings, high-rise buildings, hotels, office buildings, warehouses;
4. Various institutions, hospitals, labor camps, sanatoriums, schools;

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Fire Pump Set is combined an electric pump and a jockey pump.In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Fire pump is a general term for special pumps involved in water supply of various fire systems. Fire pumps must be tested and approved by relevant national units before they can be used in various fire protection systems in buildings, such as: fire hydrant systems, sprinkler fire extinguishing systems, foam fire extinguishing systems, large space high-altitude water cannons, water mist fire extinguishing systems, rain shower fire extinguishing systems systems, water curtains, etc.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

The EE fire pump is composed of two electric pumps. According to the customer’s requirements, there is no jockey pump and control cabinet. It is a small fire pump set with competitive price. The fire pump set is being tested at the Better factory. , make sure the product is free of any problems.

EEJ fire pump set is an electric-driven fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. Better produces many types of fire pumps, which can be customized according to needs.

In fire protection systems, various types of fire pumps are used. Fire pumps are classified as horizontal split case, vertical split case, vertical in-line, vertical turbine, or end suction. These fire pumps may be powered by an electric motor, a diesel engine, or on rare occasion powered by a steam turbine.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Flow: 30GPM~9000GPM
Head: ＜200m
Speed: 2950~3500 RPM

As the core component of a fire protection system, the performance of fire pumps directly affects fire suppression efficiency. To ensure optimal performance, we maintain strict control over every stage, from design and manufacturing to installation and maintenance.

In the design phase, we utilize advanced fluid dynamics technology to optimize the pump structure, minimizing energy loss and maximizing water flow efficiency. The carefully designed impeller and flow channels enable the pump to maintain stable operation under high pressure while reducing noise and vibration, thereby extending its service life.

During the manufacturing process, we select high-strength, corrosion-resistant materials such as stainless steel and ductile iron to ensure durability in harsh environments. Precision machining and rigorous quality inspections guarantee that every fire pump meets industry standards before leaving the factory.

Proper installation is equally critical. Our professional team develops the best installation plan based on the site environment, ensuring tight pipe connections, smooth water flow, and stable electrical control system operation. The integration of intelligent control systems allows for automatic start-stop functions and remote monitoring, significantly improving response speed and operational convenience.

Finally, regular maintenance and inspection are essential for long-term efficiency. Our comprehensive after-sales services include routine inspections, spare parts replacement, and remote troubleshooting, ensuring the pump remains in peak condition.

Through scientific design, high-quality manufacturing, expert installation, and thorough maintenance, our fire pumps provide reliable fire protection solutions, helping to build highly efficient and secure fire suppression systems.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

The fire pump unit can be classified according to the following rules:
1 according to the form of power source, it can be divided into:
A) diesel engine fire pump unit
Motor fire pump unit
C) gas turbine fire pump unit
D) gasoline engine fire pump unit
(2) it can be divided into:
A) water supply fire pump unit
Stabilized pressure fire pump unit
C) hand lift motorized fire pump unit
3. According to the auxiliary characteristics of the pump unit, it can be divided into:
A) common fire pump unit
Deep well fire pump unit
C) submersible fire pump unit
The above is the basic classification, but various types can be combined with each other, such as medium and low pressure fire pumps, high and low pressure vehicle fire pumps, ordinary fire pump sets, electric submersible fire pump sets, etc

The dual-power fire pump is mainly used for various fire hydrants and spray fire main pumps. It is also suitable for various fire booster and pressure stabilizing pumps. It is also suitable for various villas, residential areas and other fire systems, industrial It is also suitable for various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection level requirements.
