Why Choose Diesel Fire Pumps for Industrial and Commercial Fire Protection?

The DJ model is basically a combination of a diesel engine and a jockey pump. They consist mainly of end suction pumps driven by diesel engines and have no backup pumps. It is also combined with a jockey pump for maintenance to form a complete skid.

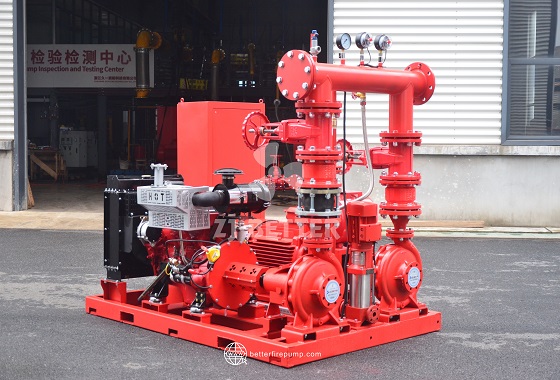

The complete DJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

Available DJ-type fire pump skid kits provide the following flows:
50, 120, 150, 250, 300, 350, 500, 750 and 1000 GPM.

EJ dual-power fire pump group is used for various fire hydrants and sprinkler fire main pumps; it can more reliably ensure water safety in the event of a fire. EJ dual-power fire pump set is designed and manufactured by Beide Technology Co., Ltd. in accordance with GB 27898.5-2011 Fixed Fire Water Supply Equipment Part 5 <>. It meets the new 3CF requirements and has obtained 3CF certification for fire protection products. EJ small dual-power diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems ;Applicable to various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

At the moment when fire safety is deeply rooted in the hearts of the people, diesel engine fire pumps are gradually replacing ordinary fire pumps, especially in manufacturing enterprises, with large flow water supply systems, excellent performance, and stable operation mode, they are the fire safety experts trusted by modern enterprises. However, the more expensive and high-tech products are, the more attention they need.

After receiving the fire/pipe network pressure/power failure/other start signals, the diesel engine fire pump can automatically start and enter full load operation within 5 seconds. The battery can be automatically charged by the main power supply or the diesel charging motor to ensure the smooth start of the equipment; automatic alarm protection for low oil pressure, high water temperature and other faults of the diesel engine, overspeed alarm and shutdown; the diesel engine fire pump is in a hot engine standby state to ensure emergency work. The diesel engine fire pump adopts the direct connection technology between the diesel engine and the water pump. Through the elastic coupling, the failure points are reduced, the start-up time of the unit is greatly shortened, and the reliability and emergency performance of the unit are improved.

The EDJ fire pump set is tested in the Better factory, and our company’s fire pump set needs to be tested after the assembly is completed to ensure the quality. EDJ fire pump sets are widely used in large public places, factories, firefighting and other occasions.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Our fire pump system ensures stable water pressure and flow output during emergencies, perfectly adapting to firefighting needs of varying scales. By utilizing advanced hydraulic design and efficient pump structure, the product delivers high water pressure output with low energy consumption, ensuring continuous and stable water supply. Whether for high-rise buildings, industrial facilities, or complex fire protection networks, our fire pumps provide quick response and reliable water flow support, offering strong protection for firefighting operations.

EEDJ Fire pump set for small flow is made of E+E+D+J
Operation: 2 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 30, 50, 80, 100, 150 GPM with pressure 4, 5, 6, 8, 10Bar.
Pressure vessel 12, 24liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

EDJ Fire fighting package set

120≤ Q≤1000GPM
H＜150m
The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Application Scope
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction
Altitude ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

When selecting a firefighting pump, it’s essential to consider factors such as the type and size of fires likely to be encountered, the terrain and accessibility of the area, the availability of water sources, and the expertise of the operators. For example, wildland firefighting may require lightweight and portable pumps capable of drawing water from remote sources, while industrial settings may require high-capacity pumps with specialized features for handling flammable liquids or chemicals.

Using a fire pump efficiently and reasonably is crucial to ensure its optimal performance and effective firefighting capabilities. Here are some key considerations for using a fire pump efficiently:

Proper Sizing: Ensure that the fire pump is properly sized for the specific application.

Regular Maintenance: Perform regular maintenance on the fire pump to keep it in optimal condition.

Optimal Operating Speed: Operate the fire pump at the optimal speed based on the required flow rate and pressure.

Water Management: Manage the water supply efficiently to avoid unnecessary waste.

Training and Familiarization: Provide training to firefighters and operators on the proper operation of the fire pump.

Monitoring and Control: Utilize monitoring and control systems to optimize pump operation. These systems can provide real-time information on flow rates, pressures, and energy consumption. Use this data to adjust operating parameters as needed and identify any anomalies or inefficiencies that may require attention.

Shut Down When Not in Use: When the fire pump is not actively needed, consider shutting it down to conserve energy and reduce wear on the equipment.

Record Keeping: Maintain records of pump operation, maintenance activities, and any performance issues.

Efficient and reasonable use of a fire pump not only helps conserve resources but also ensures its readiness to combat fires effectively. By following proper operating procedures, conducting regular maintenance, and promoting a culture of efficiency among operators, the fire pump can operate optimally and provide reliable firefighting capabilities when needed most.

We can manufacture fire pumps that are NFPA20 compliant and UL listed.
Fire pumps can function with electric motors or diesel engines, and if local building codes require electricity independent of the local grid, pumps using electric motors can use the installation of an emergency generator when connected through a transfer switch listed.

In challenging environments such as high temperatures, freezing cold, high humidity, or dusty industrial zones, conventional fire equipment often fails to perform reliably. To meet these demanding conditions, we proudly present our Heavy-Duty Diesel Fire Pump Set — a robust solution specifically designed for extreme working scenarios.

Powered by an industrial-grade diesel engine, this unit offers strong torque and excellent start-stop response. It is equipped with a high-flow, high-head end suction or split-case fire pump, delivering steady water pressure even under the most adverse conditions. Built on a solid steel base, the unit is resistant to vibration and corrosion, making it ideal for long-term continuous operation.

Its intelligent control system supports automatic start/stop, remote monitoring, and alarm linkage, ensuring safe and efficient performance even in unattended situations. Optional features include dual power switching, automatic battery charging, and preheating for rapid startup and stable operation.

Whether deployed in petrochemical plants, power stations, mining fields, or offshore platforms, this heavy-duty diesel fire pump set stands as a reliable line of defense for life and property.

With proper maintenance, a fire pump can last 15-20 years or longer. However, components such as seals, bearings, and impellers may need replacement during this period.

The electric fire pump unit is mainly used for fire hydrant fire extinguishing, automatic sprinkler fire extinguishing and other fire extinguishing systems of industrial and mining enterprises, engineering construction, high-rise buildings and other fixed fire extinguishing systems. It can be used to transport clear water without solid particles and media similar to water in chemical properties. It can also be used in common water supply systems for living and production, as well as construction, municipal water supply and drainage, etc.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EE Pump Set is designed according to the customer’s specifications which is including 2 electric pumps and 1 control panel.

These pumps ensure that a building’s fire protection system operates effectively during an emergency, providing the necessary water pressure and flow to control or extinguish fires, thereby protecting lives and property.

Horizontal fire pump has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

The fire pump can be installed in multiple ways according to the on-site use conditions. And depending on the flow and head requirements, the required flow and head are increased in parallel and series. The bearing adopts low-noise closed bearing, which has been injected with grease before leaving the factory, which can ensure continuous operation for more than two years, and the components have high concentricity. The pump impeller has good performance. Dynamic balance, no vibration in operation, and improved use environment. The pump shaft seal is a mechanical seal, which solves the serious leakage of conventional centrifugal pump packing, increases the service life, and ensures that the operating site is clean and tidy.

Building occupants should receive training on the location and proper use of firefighting equipment, including fire pumps. Regular drills and educational sessions contribute to increased awareness and preparedness during a fire emergency.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

A fully integrated diesel fire pump system from fuel tank to pump body, designed for rapid emergency response—ideal for high-rise buildings, ports, and unattended fire protection scenarios.

Discover essential tips for selecting the best fire pump manufacturer, focusing on quality, compliance, and reliability for your fire protection system.

Handling such systems involves:

Zoning: Implement zoned fire protection systems tailored to the specific needs of different areas within the building, such as residential, commercial, and industrial spaces.
Custom Design: Design custom fire pump setups to meet the diverse requirements of each zone, ensuring adequate pressure and flow rates.
Flexible Operation: Use control systems that allow flexible operation and adaptation to the varying fire protection needs of different building areas.
Unified Monitoring: Integrate the fire pump systems into a unified monitoring and control system to ensure coordinated response and management across the entire building.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

30 HP EJ fire pump package dispatch to Manila
It is made of one electric pump 150gpm 150 psi and one jockey pump with 8gpm 160 psi
Also include controller and pipe syetem
It is the clients 4 times order for Better Technology Group
