High Quality EDJ Fire Pump Set

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

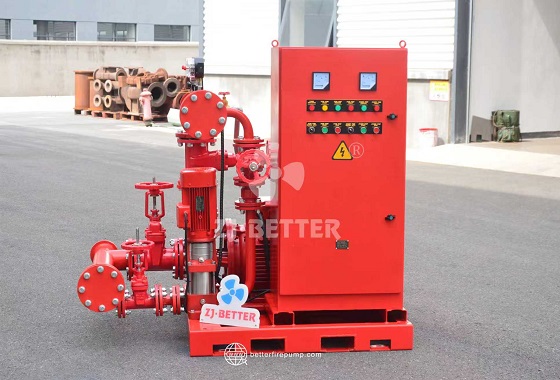

EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

Low-flow constant-pressure fire pump designed for stable pressure maintenance, automatic control, efficient standby operation, and reliable performance for modern fire protection systems.

The integrated electric fire pump system combines water supply and intelligent control, and has the advantages of high efficiency, stability, energy saving and rapid installation. It is widely used in building and industrial fire water supply systems.

Diesel pumps can be combined with electric pumps, jockey pumps, etc. to form an automatic water fire-fighting water supply system, and can be linked with the fire control center.

When the pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set to start the motor to start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine to the rated speed . The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the pump set receives a signal that the pressure of the pipeline network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

Fire pumps are specifically designed for firefighting purposes. While some may have other applications, their primary function is to provide water at the required pressure for fire protection systems.

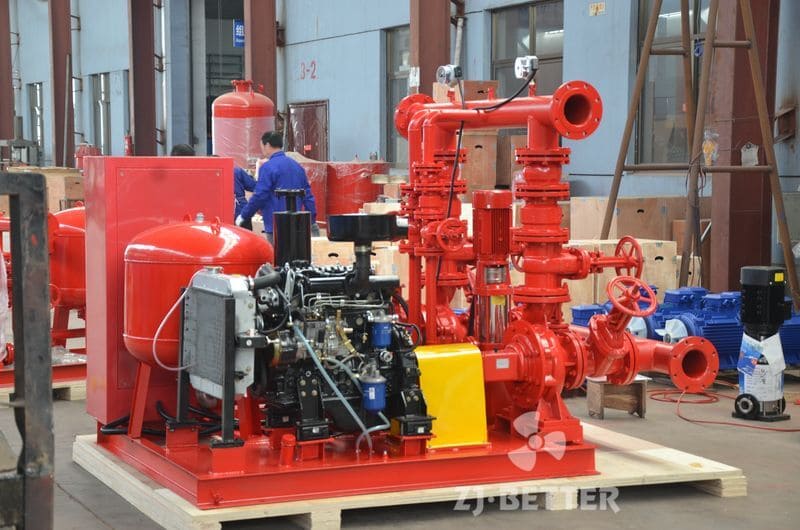

EDJ fire pump set is composed of electric pump + diesel pump + jockey pump. The pump set has reasonable layout, firm installation, reliable connection, compact and neat structure, and convenient maintenance. And can run in the case of power failure, suitable for any emergency fire occasions.

Learn the essential steps to protect fire pumps from freezing and malfunction during winter, ensuring reliable fire protection in cold environments.

The automated diesel fire pump system features independent power supply, intelligent start-up, high-efficiency hydraulic output, and comprehensive operation monitoring capabilities. It can continuously provide stable fire water supply in the event of power outages and harsh environments. It is suitable for industrial parks, petrochemical bases, high-rise buildings, and various emergency fire protection projects, and is a highly reliable emergency equipment to ensure fire safety.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Applications:
High-rise hotel, high public places;
High-rise office buildings, high-rise residential;
Chemical, oil refining, metallurgical, enterprises;
Energy, medicine and military, enterprises.

High-performance vertical long-shaft fire pumps are suitable for deep well water intake and high-lift water supply scenarios. They have advantages such as high efficiency, stable operation and intelligent control, and are widely used in industrial and municipal fire protection systems to optimize overall water supply capacity.

Fire pump system is made of Electric+Diesel+Jockey pump
Operation: 1 Duty (electric) + 1 standby (diesel engine) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

1. Connection form

The vertical water pump is connected with the motor by the coupling, which needs to be aligned regularly; the perpendicular water pump is superimposed and connected from the bottom to the top, and the perpendicular water pump is generally called the channel pump.

2. Installation form

Compared with perpendicular water pumps, perpendicular water pumps are easier to install. The vertical pump set is handed with a base, and perfection adaptation is needed after installation.

3. conservation difficulty

Since the perpendicular water pump is composed of upper and lower layers, the conservation of the perpendicular water pump is more delicate. For illustration, to repair the impeller, it’s necessary to remove all the corridor above the impeller before repairing; while the vertical water pump is fairly easy. For illustration, the IS type pump can perform impeller conservation by removing the bay pipe.

4. bottom space

It can be seen from the appearance that the vertical water pump has a base due to its vertical structure, so it occupies a large area.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

High-power electric fire pumps are designed for warehousing centers, production workshops, and municipal fire protection projects. They feature high flow rate, high head, stable operation, automatic control, and strong adaptability, ensuring a continuous and reliable water supply for fire protection systems in emergencies. They are the ideal fire protection power solution for various industrial and municipal projects.

The heavy-duty fire pump power system is designed for long-term emergency operation, featuring high torque output, stable power performance and efficient heat dissipation. It supports the fire pump to work continuously under high load conditions and is widely applicable to industrial, municipal and high-risk locations, comprehensively improving the reliability and safety of fire water supply systems.

Small capacity electric fire booster pump designed for automatic fire protection systems, providing stable pressure maintenance, reliable performance, compact structure, and efficient operation for sprinkler systems, hydrant networks, and building fire safety applications.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

High-efficiency electric fire pump units are designed for industrial and commercial buildings, featuring high flow rate, strong stability, and intelligent control functions, providing rapid response and continuous reliable fire water supply.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

The function of diesel fire pump is very powerful, we can set the control time during use, for example: preheating in advance, preparatory lubrication or timing start. The use of high-tech has made some complicated and time-consuming things easier in the past. The preheating setting greatly reduces the preparation time for rescue, allowing firefighters to rescue the first time. In the face of disasters, time is money and time. is life.

Multistage vertical centrifugal fire pumps offer advantages such as high head, high efficiency, compact structure, and intelligent control. Widely deployed in fire protection systems for high-rise buildings and industrial facilities, they provide stable and reliable high-pressure water supply solutions, thereby enhancing overall fire safety performance.

Maintenance records provide a documented history of the pump’s condition, service intervals, and repairs, which are vital for compliance, insurance, and ensuring that pumps are in good working order during emergencies. Regular records also help identify recurring issues, allowing for proactive maintenance.

The Electric & Diesel Dual Power Fire Pump System is an advanced firefighting solution that combines reliability, flexibility, and high efficiency. This system integrates both electric motor and diesel engine drive modes—ensuring uninterrupted fire protection. Under normal conditions, the electric motor powers the pump unit. In the event of a power outage or electrical failure, the system automatically switches to diesel engine operation to maintain continuous water supply. Equipped with an intelligent control panel, the system supports automatic start/stop, real-time status monitoring, and fault alarms. It is ideal for high-rise buildings, industrial plants, municipal facilities, and other locations with critical fire protection needs. Featuring a compact design and easy installation, this system complies with both domestic and international fire safety standards—delivering dual-layer protection for ultimate peace of mind.

The building fire water pressure boosting system ensures stable pipeline pressure, rapid response, and reliable fire protection by combining efficient control, energy-saving operation, and smart automation — delivering continuous readiness for high-rise buildings, industrial sites, and commercial facilities.

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

XBC series diesel engine fire-fighting pump group is a new-style fire-fighting equipment (“equipment” thereafter) developed by this Co. in accordance with GB6245-98 “Performance Requirement and Testing Method of Fire-fighting Pumps” and NFPA20 “Installation of Centrifugal Fire-fighting Pumps” etc. standards and, upon the
fitted fire-fighting pumps (single-stage single-suction type, single-stage double-suction type and sectional multistage type), can be divided into XBC-IS, XBC-S and XBC-D three sub series. The equipment has a wide range of pressure and temperature and can be used for almost every occasion necessary for fire-fighting. The diesel engine fitted with the equipment is an excellent product domestic or imported, features good starting performance, strong overload capacity, compact structure, easy maintenance and use and high degree of automation. The equipment is really a fire-fighting one advanced and reliable in performance. The reasonable use and serious maintenance of the fire pump is the most important prerequisite for ensuring the normal and reliable operation of the pump, giving full play to the emergency function and prolonging the service life. In order to make the pump operator familiar with its structural characteristics, grasp the use and maintenance methods, and make good use of the pump, we have prepared this manual for the operator reference

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The independent diesel-powered fire pump unit is specifically designed for fire water supply during power outages and emergency situations. It features rapid start-up, continuous and stable operation, high flow rate and head, and an integrated structure. It is widely used in industrial plants, warehouses, large buildings, and critical fire protection systems.
