Small flow fire pump set

Flow:

6 ~ 100m³/h

Head:

24~150m

Caliber:

50~150 mm

Speed:

1500~3000r/min

Material:

Cast iron/SS/ Bronze impeller

Send E-mail Get Price

Product Overview

Application

Technical Data

Inquiry

Product Overview

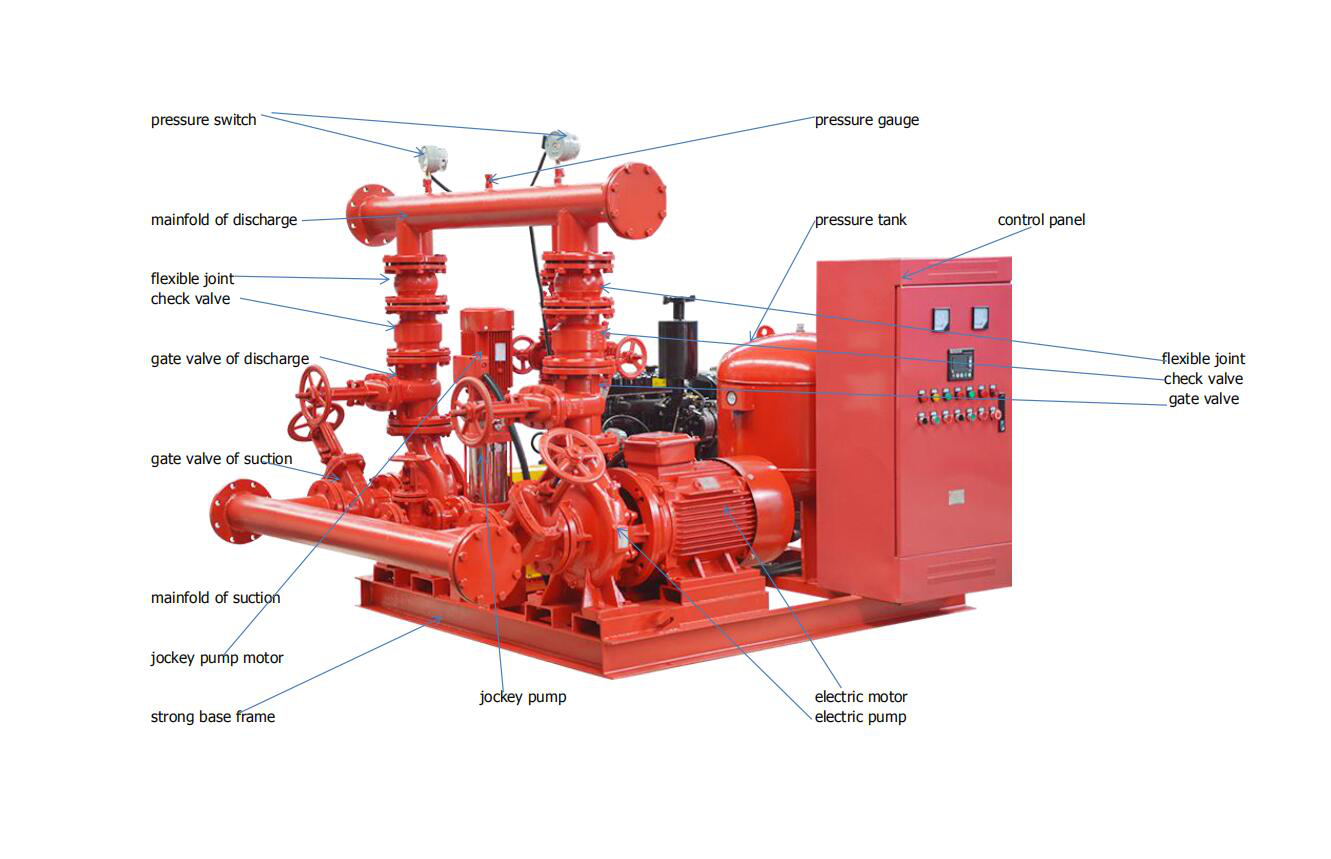

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Types of pumps used for fire service include: End Suction Pump, Split Case Pump, Vertical Inline Pump and Vertical Turbine Pump.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump,multistage pump.
2.Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank, fan,control box.
3. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, overcurrent protection.
Ensure continuous fire protection with the ED Dual-Power Fire Pump System. Combining the reliability of electric and diesel engine pumps, this innovative system guarantees uninterrupted water supply for enhanced safety in critical fire scenarios.

Application

Fire pumps are essential safety equipment utilized in various application environments to ensure an adequate water supply for controlling fires and safeguarding lives and property. These environments include:

1.Buildings and High-Rise Structures: Fire pumps are crucial for ensuring adequate water pressure and flow in emergency situations, especially in large commercial and residential buildings.

2.Industrial Facilities: Factories, manufacturing plants, and chemical facilities rely on robust fire pump systems to protect equipment, materials, and personnel from fire hazards.

3.Oil Fields and Petrochemical Plants: Fire pumps play a critical role in addressing fires caused by oil and chemical spills in oil fields, refineries, and chemical plants.

4.Transportation Hubs: Airports, ports, train stations, and public transit centers require fire pumps to ensure the safety of a large number of people and protect critical infrastructure.

5.Energy Production: Power plants, nuclear facilities, and renewable energy installations use fire pumps to safeguard power generation equipment and energy supplies.

6.Specialized Environments: Certain applications may involve hazardous gases, explosion risks, or unique challenges, necessitating specially designed fire pumps to adapt to these conditions.

7.Maritime and Shipping: Ships, oil tankers, and offshore platforms rely on fire pumps to handle fires that may occur at sea.

Technical Data

						Electric pump		Diesel pump						Jockey pump
Model	Flow			Pressure and Head		Model	Power	Model	Power	Model	Power		Effective volume	Model	Flow	Head	Power
Model	L/S	GPM	m3/h	Mpa	bar	Model	kw	Model	kw	Model	hp	kw	L	Model	GPM	bar	kw
30/3-ED24-01C	1.892	30	7	0.3	3	CDL8-40	1.5	40-160	2.2	178FA	5	3.68	24
35/5-ED24-01C	2.207333333	35	8	0.5	5	CDL8-60	2.2	50-200	5.5	190FE	14	10.5	24
50/5-ED24-01C	3.153333333	50	11	0.5	5	CDL12-50	3	50-200	5.5	190FE	14	10.5	24
50/6-ED24-01C	3.153333333	50	11	0.6	6	CDL12-60	4	50-250B	5.5	190FE	14	10.5	24
50/7-ED24-01C	3.153333333	50	11	0.7	7	CDL12-70	5.5	50-250A	7.5	190FE	14	10.5	24
50/8-ED24-01C	3.153333333	50	11	0.8	8	CDL12-80	5.5	50-250	11	Q380	27	20	24
50/9-ED24-01C	3.153333333	50	11	0.9	9	CDL12-90	5.5	50-315B	15	Q380	27	20	24
60/6-ED24-01C	3.784	60	14	0.6	6	CDL16-50	5.5	50-250A	7.5	190FE	14	10.5	24
70/6-EDJ100-01C-S-D	4.414666667	70	16	0.6	6	CDL16-50	5.5	65-250A	11.0	Q380	27	20	100	CDL4-100	17.6	8	2.2
75/6-ED24-01C	4.73	75	17	0.6	6	CDL16-60	5.5	65-250A	11.0	Q380	27	20	24
80/10-ED100-103	5.045333333	80	18	1	10	CDL16-90	11	65-315B	18.5	Q385	31	23	100
100/5-ED100-01C-S-D	6.306666667	100	23	0.5	5	CDL20-60	7.5	65-200	7.5	190FE	14	10.5	100	CDL4-90	17.6	7	2.2
100/5-EDJ100-103	6.306666667	100	23	0.5	5	CDL20-60	7.5	65-200	7.5	190FE	14	10.5	100
100/6-ED100-01C-S-D	6.306666667	100	23	0.6	6	CDL20-70	7.5	65-250B	7.5	190FE	14	10.5	100	CDL4-100	17.6	8	2.2
100/6-EDJ100-103	6.306666667	100	23	0.6	6	CDL20-70	7.5	65-250B	7.5	190FE	14	10.5	100
100/7-ED100-01C-S-D	6.306666667	100	23	0.7	7	CDL20-70	7.5	65-250A	11	Q380	27	20	100	CDL4-130	17.6	10	3
100/7-EDJ100-103	6.306666667	100	23	0.7	7	CDL20-70	7.5	65-250A	11	Q380	27	20	100
100/8-ED100-01C-S-D	6.306666667	100	23	0.8	8	CDL20-80	11	65-250	15	Q380	27	20	100	CDL4-140	17.6	11	3
100/8-EDJ100-103	6.306666667	100	23	0.8	8	CDL20-80	11	65-250	15	Q380	27	20	100
100/9-EDJ100-103	6.306666667	100	23	0.9	9	CDL20-90	11	65-315B	18.5	Q385	31	23	100
100/10-EDJ100-103	6.306666667	100	23	1	10	CDL20-100	11	65-315A	22	Q480	39	29	100
125/7-EDJ50-103	7.883333333	125	28	0.7	7	CDL32-60	11	65-250	15	Q380	27	20	50
150/4-EDJ100-103	9.46	150	34	0.4	4	CDL32-30	5.5	80-200B	7.5	190FE	14	10.5	100
150/5-EDJ100-103	9.46	150	34	0.5	5	CDL32-40	7.5	80-200A	11	Q380	27	20	100
150/6-EDJ100-103	9.46	150	34	0.6	6	CDL32-50	11	80-250B	15	Q380	27	20	100
150/6-ED100-01C-S-D	9.46	150	34	0.6	6	CDL32-50	11	80-250B	15	Q380	27	20	100	CDL4-100	17.6	8	2.2
150/7-EDJ100-103	9.46	150	34	0.7	7	CDL32-60	11	80-250A	18.5	Q385	31	23	100
150/8-EDJ100-103	9.46	150	34	0.8	8	CDL32-70	15	80-250	22	Q480	39	29	100
175/8-EDJ100-103	11.03666667	175	40	0.8	8	CDL45-40	15	80-250	22	Q480	39	29	100
200/5-EDJ100-103	12.61333333	200	45	0.5	5	CDL45-30-2	11	80-200	15	Q380	27	20	100
200/6-EDJ100-103	12.61333333	200	45	0.6	6	CDL45-30	11	80-250B	15	Q380	27	20	100
200/7-EDJ100-103	12.61333333	200	45	0.7	7	CDL45-40-2	15	80-250A	18.5	Q385	31	23	100
200/8-EDJ100-103	12.61333333	200	45	0.8	8	CDL45-40	15	80-250	22	Q480	39	29	100
200/9-EDJ100-108	12.61333333	200	45	0.9	9	CDL45-50-2	18.5	80-315B	30	Q485	48	35	100
250/4-EDJ100-103	15.76666667	250	57	0.4	4	CDL65-20	11	80-200	15	Q380	27	20	100
