Auto-Start Diesel Fire Pump System for Industrial and Municipal Applications

EDJ fire pump is a kind of electric and diesel engine dual-drive fire water supply equipment designed and manufactured by Better Technology Co., Ltd. according to the <> standard, and has obtained 3CF certification. Better dual-power fire pump has many models and can be customized according to needs.

NFPA 20 requires fire pumps to be powered by a continuously available power source, usually identified as an uninterruptible power source. In many cases, this requirement requires a backup generator to be provided as a backup power source in the event of a power failure, in which case the fire pump controller must be equipped with an automatic transfer switch. The choice of fire pump depends on the building infrastructure and available space. The most common choices for fire pump drives are electric motors and diesel engines.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Maintenance, commissioning and after-sales service of fire pump set! which consist of electric split case fire pump, diesel engine fire pump and controller

EDJ fire pump set is suitable for any emergency firefighting occasions, such as: firefighting water supply and emergency water supply in warehouses, docks, airports, petrochemicals and other occasions. This product can run in the case of power failure, the product has strong stability and is more reliable, and the jockey pump and pressure vessel can save some electricity and save costs.

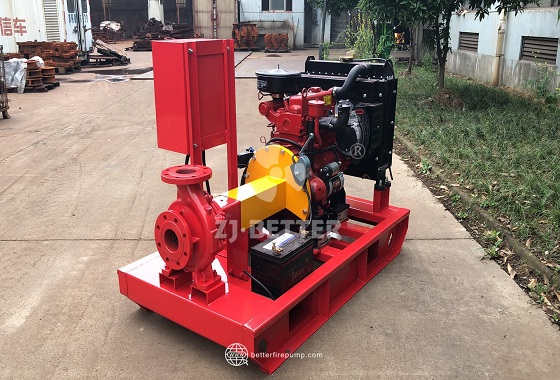

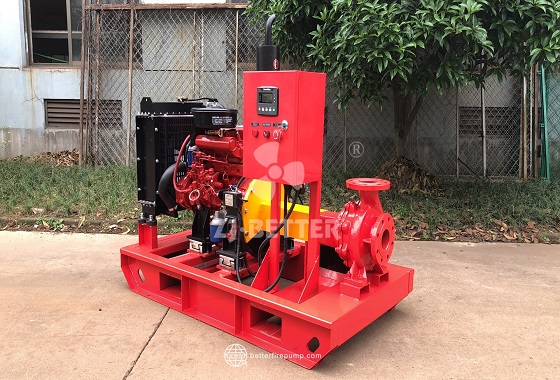

The EDJ （Diesel Pump: XA pump, Electric Pump: XA pump ）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pumps can be widely used in environmental protection, water treatment and fire protection departments to transport various liquids by using their own advantages.

If the person on duty in the fire control room cannot start and stop the fire pump manually after the fire occurs, it will delay the timing of emergency rescue and fire extinguishing. Today ZJBetter is here to explain how to switch the working status of the electrical control cabinet of the fire pump, manually start and stop the pump group on site and remotely, so that everyone can use the fire pump to extinguish the initial fire source or slow down the fire before the fire rescue comes.

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

1. Inspect and test the fire pump, piping, valves, and relief valves annually for proper operation and water flow.

2. Make sure the fire pump is in good working condition and that all safety systems are in place and operational.

3. Check the fire pump’s pressure gauge and make sure it’s properly calibrated.

4. Inspect the motor, couplings, and belts for proper alignment and condition.

5. Clean the fire pump’s suction and discharge strainers regularly.

6. Ensure that the fire pump is properly lubricated and that all bearings and seals are in good condition.

7. Test the fire pump with a certified flow test annually.

8. Inspect the fire pump’s control panel and make sure it’s in proper working order.

9. Test the fire pump’s jockey pump and make sure it is operational.

10. Check all electrical connections and wiring for proper operation.

Discover essential fire pump maintenance practices to improve reliability, extend lifespan, and ensure code compliance in your fire protection system.

Diesel-driven fire pumps provide a reliable alternative to electric-driven pumps, especially in areas prone to power outages. They offer independent operation without relying on the building’s electrical supply and are often used in remote locations or where backup power is essential.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The diesel engine pump set has the characteristics of good startability, strong overload capacity, compact structure, convenient maintenance, simple use and high degree of automation. It is a kind of fire fighting equipment with reliable performance.

Fire pumps are often integrated with fire alarm systems to provide automatic alerts in case of pump activation or failure. This integration ensures that building occupants and emergency responders are immediately informed during a fire event.

The diesel engine fire pump can form an automatic water fire water supply system with electric pumps and jockey pumps, and can be linked with the fire control center.
When the diesel engine fire pump set receives the starting command, if the mains power is cut off, the automatic control cabinet of the diesel engine will immediately send a start signal to the starting motor of the pump set, start the motor, start the diesel engine at idle speed, and then gradually adjust the throttle to accelerate the diesel engine until Rated speed. The control system will automatically monitor the operation of the diesel engine, such as the oil pressure, oil temperature, speed of the diesel engine, outlet pressure of the water pump, etc., and determine whether the diesel engine starts normally through automatic monitoring. If the start fails, the control system will send a restart signal, and if the three starts fail, the automatic control system will send a failure alarm. When the diesel engine fire pump set receives a signal that the pressure of the pipe network is restored or the mains power is restored to normal, the pump set will quickly slow down and stop automatically after monitoring the idle position for a period of time.

Personnel should be trained in fire pump operation, routine maintenance, emergency procedures, and understanding of the relevant NFPA standards. Regular training updates ensure that staff remain knowledgeable about the latest safety practices.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. It can completely meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

The EDJ 2000kw 10kv Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

This innovatively designed fire pump system is specifically tailored for environments with high firefighting water supply requirements, such as industrial parks and high-rise buildings. By incorporating high-efficiency pumps and intelligent control technology, the system ensures the rapid provision of high-volume water during a fire, meeting the demands of complex environments. The system integrates both diesel and electric drive motors, combined with an intelligent control panel that offers automatic start-up, water pressure regulation, remote monitoring, and fault alarms, ensuring stability and efficiency during critical moments.

The innovation in this product is also reflected in its modular design, allowing for flexible configuration based on different application scenarios. The system is easy to install and commission, making it adaptable to various complex operational environments. Additionally, its high durability and low maintenance costs ensure that it continues to perform excellently over time, making it the ideal choice for ensuring fire safety in industrial parks and high-rise buildings.

Our fire pump utilizes advanced low-pressure compensation technology to ensure a strong and stable water flow even in conditions of insufficient water pressure. The high-efficiency power system, combined with an intelligent control module, enables rapid startup and precise adjustments, enhancing firefighting efficiency. Made from high-temperature resistant and corrosion-proof materials, our pump remains reliable in extreme environments, providing robust protection for building safety.

For research laboratories, quiet operation, reliability, and precise pressure control are essential. Electric fire pumps are often suitable, given their steady power flow and lower emissions, which may be critical for sensitive environments. Jockey pumps can also maintain pressure without large pumps constantly running.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The outdoor fire pump set can be customized according to customer needs, and can include electric pumps, diesel engine pumps, and jockey pumps, with excellent appearance and easy installation.

In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Product Advantages:

1.Reliable
It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency. good stability, vibration proof.

2.Economic
Jockey pump and pressure vessel can save some electric power.
Convenience:It can be remote controlled by App in phones.

3.Professional Technological
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

Yes, fire pump rooms must meet certain requirements, including adequate ventilation, drainage, lighting, and accessibility. The room should also be protected from flooding and fire and have a reliable power supply.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.
