Dual-Pump Coordination Design Ensures Reliable and Continuous Fire Water Supply

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting piping systems, they can also be used for industrial water delivery. Fire pumps can also be used for water supply and drainage systems in cities. There are also other relatively long-distance water delivery tasks, such as heating boilers, hot and cold water circulation pressurization of bathroom boilers and multi-stage fire pump furnaces, etc., can all be completed by means of fire pump systems.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, storage and other places, and the performance requirements and quality requirements are different. The commonly used types of fire pumps are vertical electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multiple Level fire pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

100gpm5bar ED fire pump ready to Africa

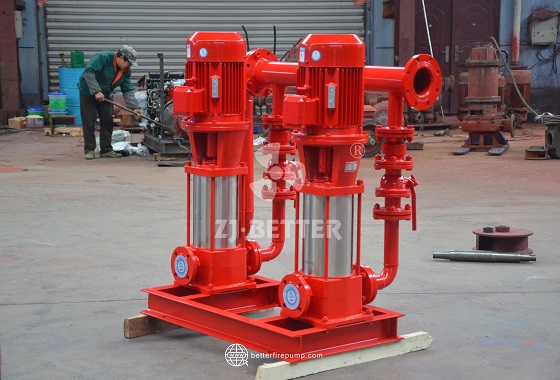

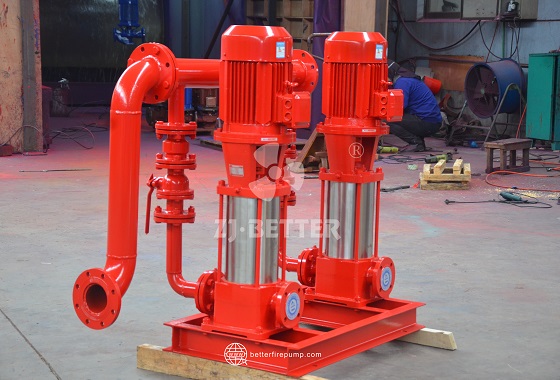

Vertical multi-stage pipeline fire pump sets are high-head, high-efficiency firefighting water supply equipment featuring compact structure, energy efficiency, quiet operation, and stable performance. Suitable for sprinkler systems, fire hydrants, and automatic fire suppression systems in high-rise buildings, industrial plants, and municipal projects, these units incorporate intelligent control systems enabling automatic start/stop, constant-pressure water supply, and fault alarms. They ensure rapid response and continuous water delivery during fires, providing reliable fire safety assurance.

DJ fire pump 500gpm, 7bar
Caliber: 150mm
Flow Range:500gpm
Pressure: 7bar
Matching Power: 37kW
Motor:3ph,415V,50Hz

The fire pump is a high-tech product, which is characterized by high efficiency, fast pumping speed, very strong sealing, and low leakage, which can also be said to be no leakage. The use of fire pumps is very extensive, of course, the most important one is used in the fire protection industry, it is also used in water treatment, environmental protection industry and so on. Among these uses, the fire protection industry uses the most. The fire protection industry makes full use of the advantages of fire pumps, which is the advantage of fast pumping. Because most of the work in the fire protection industry is to extinguish fires, the fire pump plays a very important role. Fire pumps are not just used in the firefighting industry. Fire pumps are also used in many other places. In larger industries, such as industry, as well as urban water supply and drainage, and water transportation for the construction of high-rise buildings, there is also water delivery over relatively long distances. There are also smaller industries, such as heating and boilers.

Compact diesel fire pumps offer independent power, portable design, and reliable water supply, widely used in high-rise, industrial, and off-grid sites for fire safety.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The products are packed in wooden cases, which are light in weight, whole core, frosted and formaldehyde free. Shipping remark can be made for free. Good packaging is the quality guarantee during the transportation of products.

Yes, fire pumps can operate in high-altitude locations, but their performance may be affected due to reduced atmospheric pressure, which can impact water flow and engine performance. It’s essential to select pumps specifically designed or adjusted for high-altitude use, ensuring they meet the required pressure and flow rates.

This equipment is an EEJ fire pump set customized by a Greek customer with a frequency of 50Hz. The electric pump adopts an XA pump.This pump combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model.Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

Yes, installing diesel fire pumps in different environments or applications may require special considerations to address factors such as ambient temperature, altitude, seismic activity, corrosive atmospheres, and specific regulatory requirements. For example, pumps installed in outdoor or exposed locations may require weatherproof enclosures or additional corrosion protection, while pumps installed in seismic zones may need to be anchored securely to withstand earthquakes.

1. Turn off the power supply of the fire pump.

2. Close the main valve of the main pump and open the main valve of the standby pump.

3. Open the valve of the bypass line and the water supply line of the standby pump.

4. Turn on the power supply of the standby pump.

5. Check the operation status of the standby pump.

6. Close the valve of the bypass line and the water supply line of the main pump.

7. Open the main valve of the main pump.

8. Check the operation status of the main pump.

1. When the pipeline fire pump noise occurs, the most likely fault is the imbalance of the fire pump rotor. Since the water output of the fire pump mainly depends on the high-speed rotation of the rotor, when the rotor is unbalanced for some reason, it will cause the fire pump to deviate from the original rotation track during the rotation process, resulting in the fire pump appearing in the pipeline. When judging the failure of the rotor, it is mainly to replace the rotor of the pump or make a balance hole on the rotor blade of the pump to find out the balance difference.

2. The production noise of the fire pump pipeline has a certain effect. For example, forcing a small flow of a pipe “fire pump” to increase power to increase the original flow will create vibrations in the fire pump. Therefore, whether you use a pipeline fire pump or other types of water pumps, you should follow the water pump use standards to prevent the water pump from making noise, which will affect the service life of the water pump. The solution is to use the pump according to the instructions. If the efficiency of use is affected, it is recommended to replace the appropriate pipeline “fire pump” for use.

3. The installation did not meet the standards, resulting in abnormal noise from the pipeline fire pump. Fire pumps and fire hydrant pumps vibrate at a high frequency during operation, so they must be fixed during installation. If the bolt between the pump body and the base or between the base and the base is loose when installing the pipe fire pump, the transmission shaft between the pump body and the motor of the pipe pump will be bent. It lowered the concentricity and caused an imbalance in the fire pump rotor. This is one of the noise phenomena of fire pumps. In order to improve this phenomenon, the pump shaft of the fire pump needs to be balanced and then reinstalled. Finally, the base of the pump was reinforced.

4. Blockage of the impeller passage can also cause fire pump noise. When the internal flow channel of the fire pump is blocked by foreign matter, it will cause uneven resistance of the fire pump impeller and vibrate the fire pump. Therefore, it is necessary to regularly disassemble and maintain the fire pump to prevent foreign matter from blocking the pipeline.

5. The bearing of the fire pump is damaged. Bearing damage generally does not occur on the main body of an in-line fire pump. If there is a problem with the quality of the pump, or because some hard objects enter the pump body of the tube pump, the bearing is damaged, and the rotor is unstable at first. Causes noise from pipeline fire pumps.

6. Finally, cavitation, cavitation occurs in any type of pump, but some are obviously not noticeable. If cavitation occurs, consider raising the fire pump or increasing the pressure in the piping. If the cavitation phenomenon cannot be changed, the fire pump model needs to be redesigned and replaced.

The engine provides the power necessary to drive the pump, allowing it to generate the high-pressure water or firefighting agent needed to combat fires.

The integrated diesel and electric dual-power fire pump system delivers reliable and efficient fire protection with intelligent control, auto-switching, and compact design—ideal for high-rise buildings, data centers, and warehouses requiring advanced fire safety solutions.

Fire pump professional production manufacturers, complete products, manufacturers direct sales, after-sales worry, pump quality is good, durable products.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Storage Guidelines:
Climate-Controlled Environment: Keep spare parts in a dry, temperature-controlled area to prevent rust and degradation.
Inventory Management System: Label and organize parts by type, size, and replacement cycle.
Regular Inspections: Periodically check stored parts for damage or expiration.
Critical Spare Parts to Stock:
Bearings and seals
Gaskets and O-rings
Pressure switches and sensors
Diesel engine components (batteries, filters, belts)

Smart integration diesel fire pump unit with rapid start, strong water supply and intelligent control—ideal emergency solution for industrial fire protection.

This pump machine unit is very sutitable for fire fighting or pressure-stablized purpose for house or small building. We make it as customized according to NFPA 20 and GB standard.

The diesel-generated fire pump unit is an independent water supply system integrating a diesel engine, generator, and fire pump. It automatically starts and operates during a power outage, ensuring a continuous and stable fire water supply. This system offers advantages such as efficient power output, strong adaptability, intelligent control, and low maintenance costs. It is suitable for critical facilities such as industrial parks, high-rise buildings, petrochemical bases, hospitals, and data centers, providing reliable fire safety.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Application fields of fire pump set:
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc., national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports, fire engineering companies.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

Fire pump is one of the fire-fighting equipment, its function is mainly used to transport water or other fire-extinguishing liquid for fire-fighting. Pumping water with equipment such as fire pumps has a very high water delivery efficiency. There are many types of fire pumps, and the air pumping methods of different fire pumps are also different. Sprinklers, fire hydrants, and water cannons and window sprays commonly used in business have the same pump-starting principle, but the fire-fighting linkage principle is different.

Fire-fighting package set water supply equipment manufactured by is referred to as
“dual-power”, “Fire Pump Set” hereinafter as “dual-power”, “Fixed Fire Pump Installation
Standard” and “Standard for the Fixed Fire Pump Installation Standard” of the
American Fire Protection Association in accordance with China Standard GB27898.5-2011
Fixed Fire-fighting Water Supply Equipment Part 5 “Fire Dual-power Installation of
Stationary Pumps for Fire Protection -2016 design and manufacture. Comply with the
latest Chinese national standard CCCF certification requirements and obtain the
certificate. Dual power is one of the reliable products in fire fighting water supply equipment.
