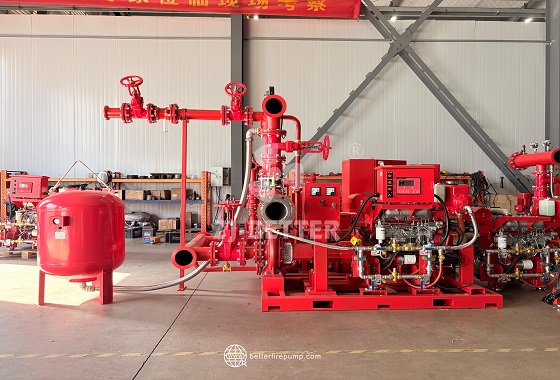

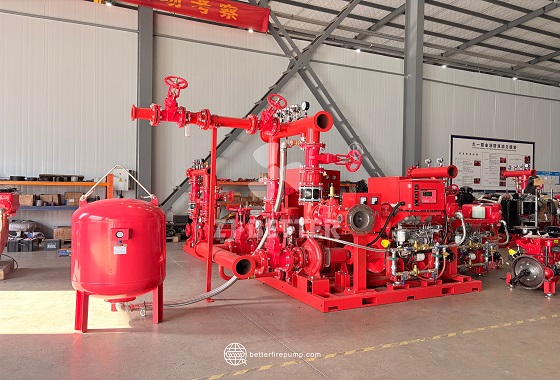

Automatic Control Diesel Fire Pump System – Centralized Pressure Monitoring and Pump Operation Management

EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance. Due to these advantages of high performance and low energy consumption, the safety and efficiency of the fire pump are far ahead of the pipeline tools of the same purpose.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system, which can ensure the normal operation of the project without power or power supply. Its role is self-evident, and it can be said to be a great helper in fire emergency .

The dedicated fire-fighting water supply pressure stabilizing unit, which is on standby, integrates a fire-fighting main pump, a pressure stabilizing pump, a pressure tank, and an intelligent control system. It has advantages such as automatic pressure stabilization, continuous standby, rapid response, energy-saving operation, and long-term reliability. It is widely used in high-rise buildings, commercial complexes, industrial plants, hospitals, schools, and fire-fighting water supply systems, providing stable and reliable pressure protection and emergency water supply capabilities for modern fire protection projects.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Caliber: 25-800mm
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
5.Speed: 740-2900r/min
6.Material: HT200，SS304，Bronze
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

– Audience Safety: Ensuring reliable fire protection to safeguard audiences and performers.
– Discreet Installation: Designing systems that are discreet and do not interfere with the aesthetics or acoustics of the venue.
– Coverage for Complex Layouts: Providing comprehensive coverage for various areas, including stages, seating, backstage, and storage.
– Compliance with Performance Venue Regulations: Adhering to fire safety regulations specific to theaters and performance venues.

Smart constant pressure water supply system for firefighting. Energy-saving, multi-pump control, remote monitoring—ideal for high-rise buildings and commercial complexes.

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so a diesel engine fire pump is a good choice.

The high-efficiency vertical multistage fire pump unit is designed specifically for fire-fighting pressure-stabilized water supply systems in high-rise buildings. It features high head, small footprint, stable operation, rapid response, and convenient maintenance. It can operate reliably for a long time and meets the strict requirements of fire hydrant and sprinkler systems for pressure and flow. It is suitable for various fire-fighting applications such as commercial complexes, residences, hospitals, and industrial buildings.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump. The diesel engine fire pump has the advantages of long head and wide application range, and can meet the fire water supply in multiple places such as warehouses, docks, airports, power plants, liquefied gas stations, and petrochemical industries.

The fire pump refers to a clean water pump used for fire water supply, and a single pump that handles medium temperature below 80 degrees and is not corrosive. The pump set is the joint operation of multiple fire pumps to ensure the quantity and stability of the water supply. The electric motor fire pump group adopts multiple fire pumps powered by electric motors. The general fire water supply environment is equipped with one electric and one diesel fire pump as the reserve water pump to ensure sufficient emergency water consumption. The main components of the electric motor fire pump group are the motor and the pump body. The subdivision of the pump body is the pump casing, the impeller, the pump shaft, the bearing, the coupling, the sealing form, the lifting pipe, etc. The specific fire pump model is determined according to the environment and performance requirements. According to the material quotation required by the customer, accurate selection is beneficial to on-site use and reduces failure problems.

The integrated fire pressure stabilization system features advanced variable frequency constant pressure control technology, offering intelligent pressure regulation, energy efficiency, and remote monitoring. It is widely used in high-rise buildings, commercial complexes, and public facilities to ensure stable pressure and rapid emergency response.

The EDJ Fire Pump system consists of diesel engine fire pumps, electric pump units, and pressure stabilizing pumps, creating an intelligent automatic fire water supply system. Our electric pump units come in various models, including single-stage pumps, horizontal split-case pumps, end-suction pumps, and multi-stage pumps, constructed with cast iron or stainless steel and equipped with efficient copper impellers for exceptional performance.
Whether it’s for buildings, factories, or warehouses, the EDJ fire pump system provides outstanding performance and reliability for your fire protection system, ensuring safety and security during fire emergencies!

Signs include unusual noises or vibrations, reduced water pressure or flow, frequent tripping of the pump, leakage, and failure to start. Regular inspections and testing can help identify issues before they become critical.

The minimum fire rated pressure of ED small fire fighting package set water supply equipment is 3 bar and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
Motor: Three-phase asynchronous squirrel-cage motor independently developed and manufactured by our company, which can be controlled in production time and greatly shorten the whole set production time.
Diesel Engine: According to the different parameters of customers, we will choose diesel engines with high cost performance ratio. The main brands are QuanChai, Weichai, ShangChai, FAWDE, Cummins, etc.
Electric Pumps: Electric pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Diesel Pumps: Diesel pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Electronic Components: The main electric components is CHNT, if Schneider or other brand electrical are need, should mention it before place the order.
Safety Valve plays a safety protection role in the system. When the system pressure exceeds the prescribed value, the safety valve opens, and a part of the gas/fluid in the system is discharged into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.
Pressure Tank: Water is a non-compressible medium. Generally speaking, the pressure drop of fire-fighting pipe network is normal. However, the pressure drop is very slow, the total loss of water in the pipe network isnot large, and the frequent change of pressure in the pipe network leads to frequent start-up and shutdown of pumps. Especially when the power of equipment is high, it will cause great impact on pressure sensors, relaysand motors, thus affecting the performance and life whole equipment. Therefore, it is necessary to choose the right volume of the pressure tank.

The high-performance diesel-driven fire pump set offers independent power, quick start, and stable operation, ensuring reliable water pressure during power outages or emergencies. Ideal for high-rise buildings, industrial zones, and off-grid areas, it provides efficient, safe, and long-lasting fire water supply protection.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

New Generation Diesel Split Case Fire Pump Systems deliver high-flow water supply, stable pressure performance, independent diesel-powered operation, rapid emergency start-up, continuous-duty reliability, and intelligent control capabilities for industrial facilities, airports, power plants, warehouses, commercial buildings, infrastructure projects, and large-scale fire protection engineering applications worldwide.

High-performance diesel fire pump systems are suitable for oil fields, docks, and large storage facilities. They feature independent power, strong pressure supply, and weather resistance, ensuring continuous fire safety in critical locations.

Vertical fire pumps for high-rise buildings offer advantages such as high head, stable pressure, and rapid response, making them suitable for fire protection systems in high-rise and commercial buildings and providing efficient and reliable water supply solutions.

High-throughput wheeled fire pump units feature strong self-priming capability, high flow and high head output, mobility, compact structure, and stable operation. They are suitable for emergency fire fighting, rural fire fighting, construction sites, and rapid water supply in various scenarios, making them an efficient and reliable mobile fire water supply solution.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump can be completely separated from the mains.

The biggest problem in the event of a fire is to ensure continuous fire-fighting power. If the fire is not extinguished in time due to insufficient supply of raw materials, it will cause huge economic losses. Therefore, high-quality fire pumps must be selected to avoid quality problems. , resulting in irreparable damage.

High-durability diesel fire pump engineered for harsh environments, delivering stable high pressure and high head performance. Ideal for industrial, remote, and high-risk fire protection systems.

This high-performance fire jockey pump unit is engineered with a compact structure and robust functionality, making it ideal for installations where space is limited but consistent water pressure is critical. Its integrated design ensures a small footprint and easy installation and maintenance, perfectly suited for high-rise buildings, commercial complexes, and industrial plants.

Powered by a high-efficiency electric motor and managed through an intelligent control panel, the system enables automatic start-stop functionality and constant pressure operation, keeping your fire protection system in standby mode at all times. The pump body is made of corrosion-resistant materials to accommodate various water conditions, ensuring long-term durability. Equipped with multiple safety protection features, it is a reliable, energy-saving, and intelligent solution for modern fire protection systems.

This integrated diesel fire-fighting water supply system combines a diesel engine, fire pump, control cabinet, and piping accessories; by optimizing the connection between the pump unit and the piping, it provides a stable and efficient solution for emergency fire-fighting water supply.

Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. When the diesel engine fire pump is insufficient in fuel, low battery voltage, and high lubricating oil temperature , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

The fire pump set consists of two electric pumps & jockey pump along with control panel and accessories. It means duty pump and standby pump are electric pumps, without diesel engine pump. The fire pump set is designed to meet 65m³/h@60m.

High-performance pressure tank fire pump system designed for stable pressure maintenance, rapid emergency response, and long-term energy-efficient operation. Ideal for high-rise buildings, industrial facilities, and large commercial fire protection systems with reliable automatic control and durable construction.
